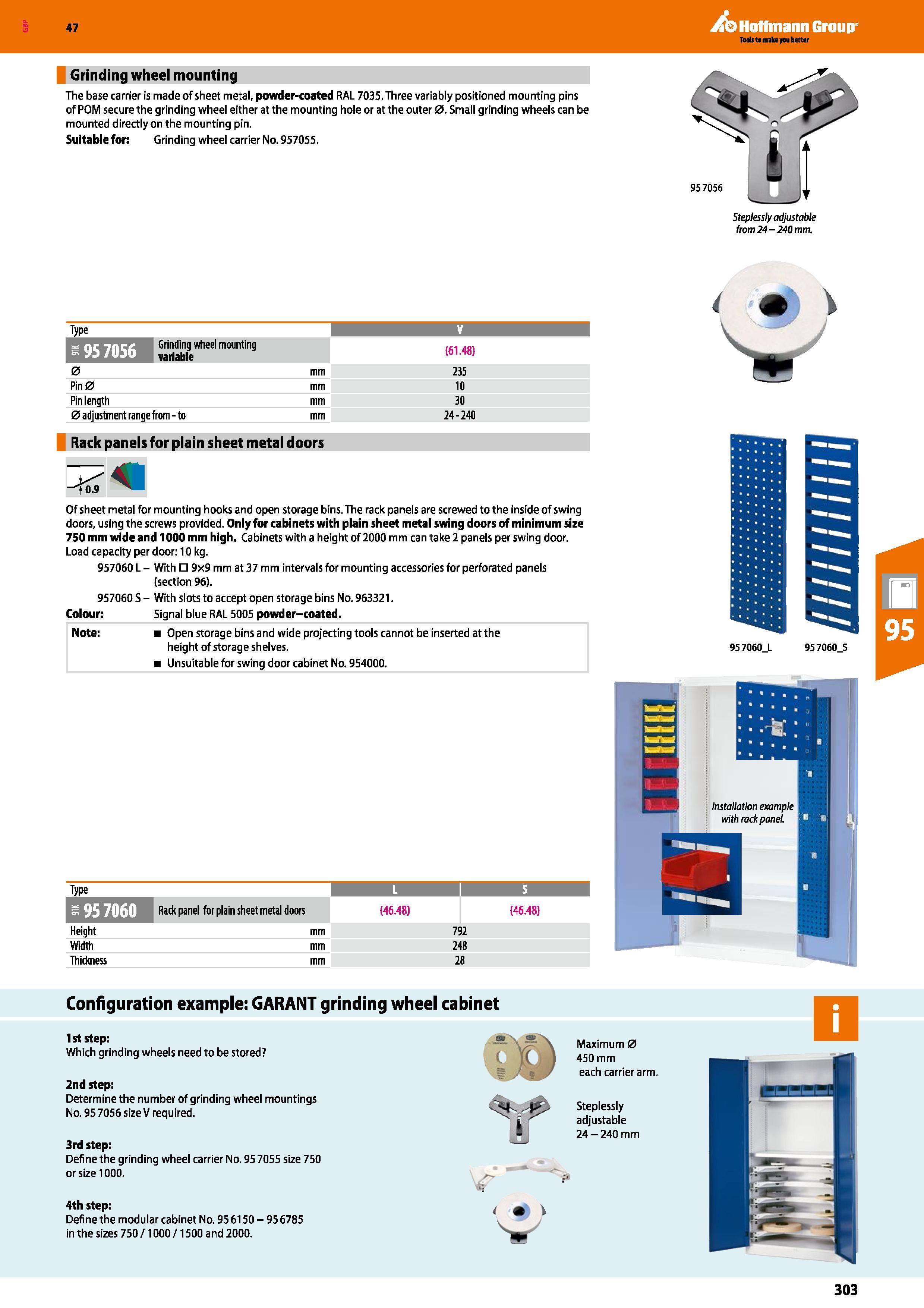

Hoffmann Group 47 Grinding wheel mounting The base carrier is made of sheet metal, powder-coated RAL 7035. Three variably positioned mounting pins of POM secure the grinding wheel either at the mounting hole or at the outer 0. Small grinding wheels can be mounted directly on the mounting pin. Suitable for: Grinding wheel carrier No. 957055. Steplessly adjustable from 24-240 mm. Type 957056 Grinding wheel mounting variable 0 mm Pin 0 mm Pin length mm 0 adjustment range from-to mm (61.48) 235 10 30 24-240 Rack panels for plain sheet metal doors 41 Of sheet metal for mounting hooks and open storage bins. The rack panels are screwed to the inside of swing doors, using the screws provided. Only for cabinets with plain sheet metal swing doors of minimum size 750 mm wide and 1000 mm high. Cabinets with a height of 2000 mm can take 2 panels per swing door. Load ca pacity per door: 10 kg. 957060 L - With 9x9 mm at 37 mm intervals for mounting accessories for perforated panels (section 96). 957060 S - With slots to accept open storage bins No. 963321. Colour: Signal blue RAL 5005 powder-coated. Note: Open storage bins and wide projecting tools cannot be inserted at the height of storage shelves. Unsuitable for swing door cabinet No. 954000. ( \ 95 7060 L 957060 S Configuration example: GARANT grinding wheel cabinet 1st step: Which grinding wheels need to be stored 2nd step: Determine the number of grinding wheel mountings No. 95 7056 size V required. 3rd step: Define the grinding wheel carrier No. 95 7055 size 750 or size 1000. 4th step: Define the modular cabinet No. 95 6150 - 95 6785 in the sizes 750/1000 /1500 and 2000. ; \ Maximum 0 450 mm each carrier arm. A te' Steplessly adjustable 24 - 240 mm 303
