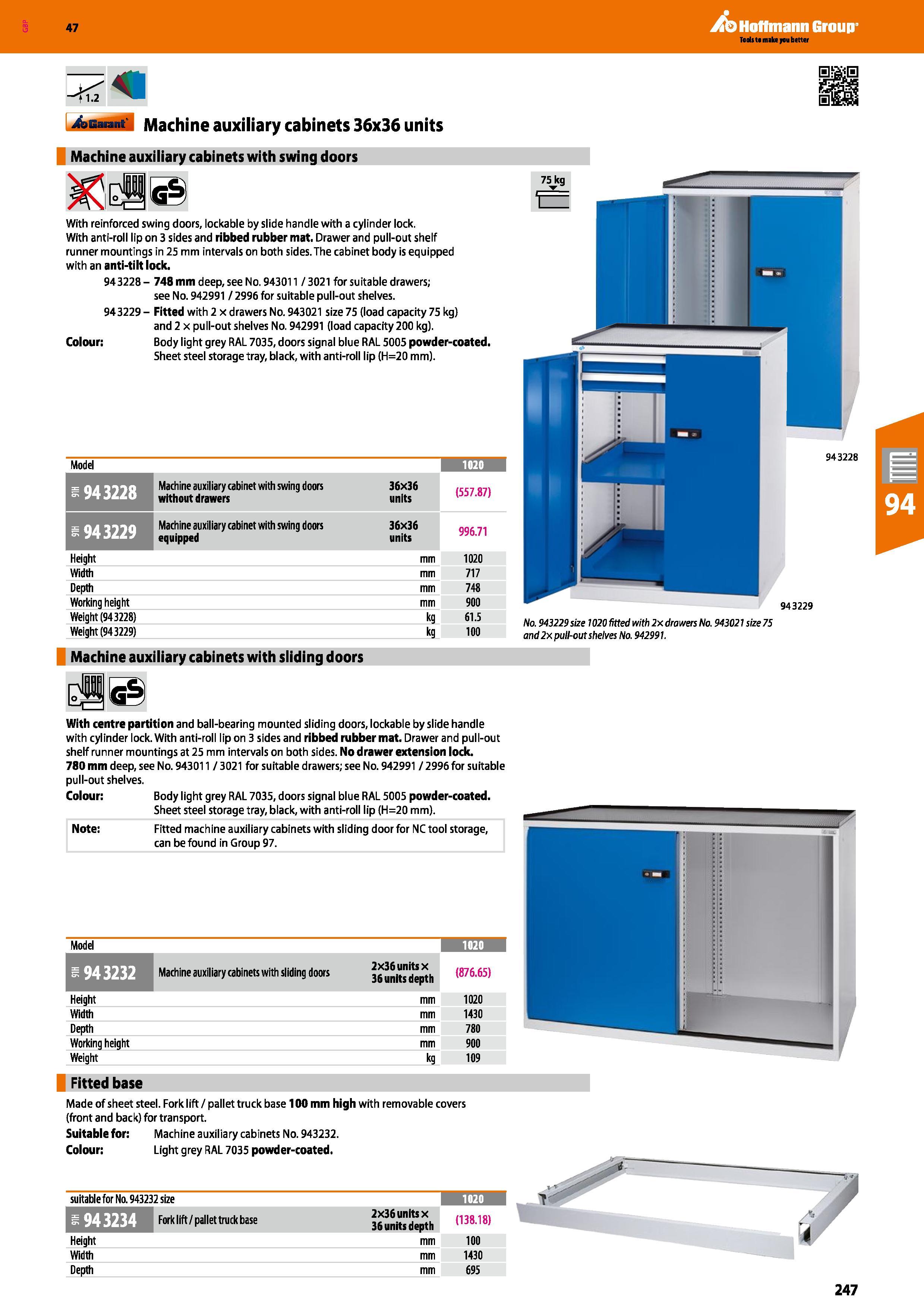

Hoffmann Group 47 4sbu M Machine auxiliary cabinets 36x36 units Machine auxiliary cabinets with swing doors With reinforced swing doors, lockable by slide handle with a cylinder lock. With anti-roll lip on 3 sides and ribbed rubber mat. Drawer and pull-out shelf runner mountings in 25 mm intervals on both sides. The cabinet body is equipped with an anti-tilt lock. 943228 - 748 mm deep, see No. 943011 /3021 for suitable drawers; see No. 942991 / 2996 for suitable pull-out shelves. 943229 - Fitted with 2 x drawers No. 943021 size 75 (load capacity 75 kg) and 2 x pull-out shelves No. 942991 (load capacity 200 kg). Colour: Body light grey RAL 7035, doors signal blue RAL 5005 powder-coated. Sheet steel storage tray, black, with anti-roll lip (H=20 mm). Model fssmi&ssm 1020 i Machine auxiliary cabinet with swing doors without drawers units <557'87> 1943228 MM Machine auxiliary cabinet with swing doors equipped units 99671 Height mm 1020 Width mm 717 Depth mm 748 Working height mm 900 Weight (943228) kg 61.5 Weight (943229) kg 100 Machine auxiliary cabinets with sliding doors No. 943229size 1020 fitted with 2x drawers No. 943021 size75 and 2x pull-out shelves No. 942991. With centre partition and ball-bearing mounted sliding doors, lockable by slide handle with cylinder lock. With anti-roll lip on 3 sides and ribbed rubber mat. Drawer and pull-out shelf runner mountings at 25 mm intervals on both sides. No drawer extension lock. 780 mm deep, see No. 943011 / 3021 for suitable drawers; see No. 942991 / 2996 for suitable pull-out shelves. Body light grey RAL 7035, doors signal blue RAL 5005 powder-coated. Sheet steel storage tray, black, with anti-roll lip (H=20 mm). Fitted machine auxiliary cabinets with sliding door for NC tool storage, can be found in Group 97. Colour: Note: Model 1020 I f'ffra Machine auxiliary cabinets with sliding doors 2x36 units x 36 units depth (876 65) Height mm 1020 Width mm 1430 Depth mm 780 Working height mm 900 Weight kg 109 Fitted base Made of sheet steel. Fork lift /pallet truck base 100 mm high with removable covers (front and back) for transport. Suitable for: Machine auxiliary cabinets No. 943232. Colour: Light grey RAL 7035 powder-coated. suitable for No. 943232 size 1020 f Fork lift/pallet truck base 2x36 units x 36 units depth (138.18) Height mm 100 Width mm 1430 Depth mm 695 247 943229
