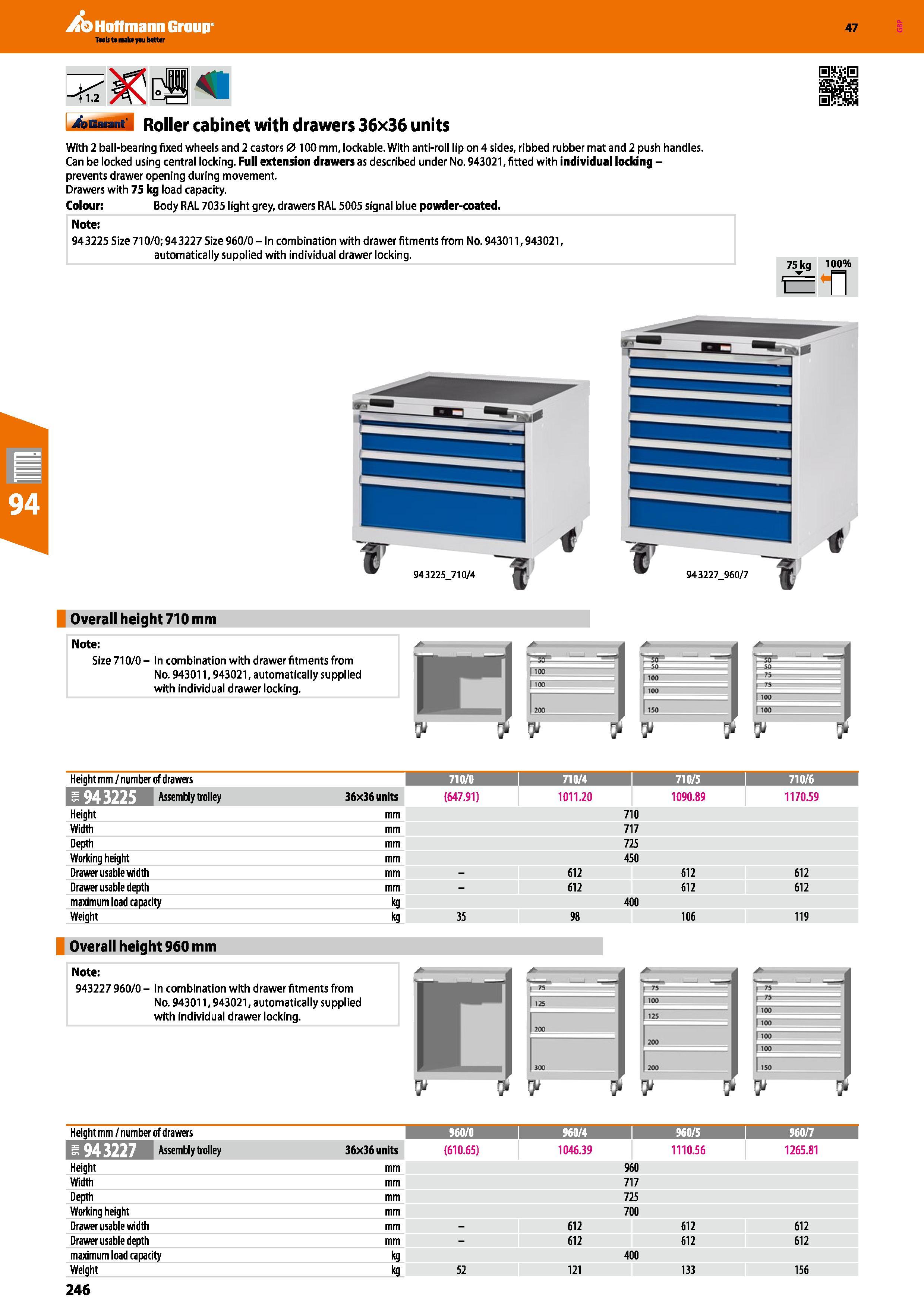

246 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.246

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 246 0246 ENG Lab2u

Hoffmann Group 47 Roller cabinet with drawers 36x36 units With 2 ball-bearing fixed wheels and 2 castors 0 100 mm, lockable. With anti-roll lip on 4 sides, ribbed rubber mat and 2 push handles. Can be locked using central locking. Full extension drawers as described under No. 943021, fitted with individual locking -prevents drawer opening during movement. Drawers with 75 kg load capacity. Colour: Body RAL 7035 light grey, drawers RAL 5005 signal blue powder-coated. Note: 943225 Size 710/0; 943227 Size 960/0 - In combination with drawer fitments from No. 943011,943021, automatically supplied with individual drawer locking. 75 kg 100% n 943225_710/4 943227_960/7 Overall height 710 mm Note: Size 710/0 - In combination with drawer fitments from No. 943011,943021, automatically supplied with individual drawer locking. I 100 Height mm / number of drawers 710/0 i 710/4 1 710/5 I 710/6 1 1 -943225 IWIM 36x36 units (647.91) 1011.20 1090.89 1170.59 Height mm 710 Width mm 717 Depth mm 725 Working height mm 450 Drawer usable width mm - 612 612 612 Drawer usable depth mm - 612 612 612 maximum load capacity kg 400 Weight kg 35 98 106 119 Overall height 960 mm Note: 943227 960/0 - In combination with drawer fitments from No. 943011,943021, automatically supplied with individual drawer locking. Height mm / number of drawers 960/0 960/4 1 960/5 I 960/7 I FA' ’ K¥PmM Assembly trolley 36x36 units (610.65) 1046.39 1110.56 1265.81 Height mm 960 Width mm 717 Depth mm 725 Working height mm 700 Drawer usable width mm - 612 612 612 Drawer usable depth mm - 612 612 612 maximum load capacity kg 400 Weight kg 52 121 133 156
