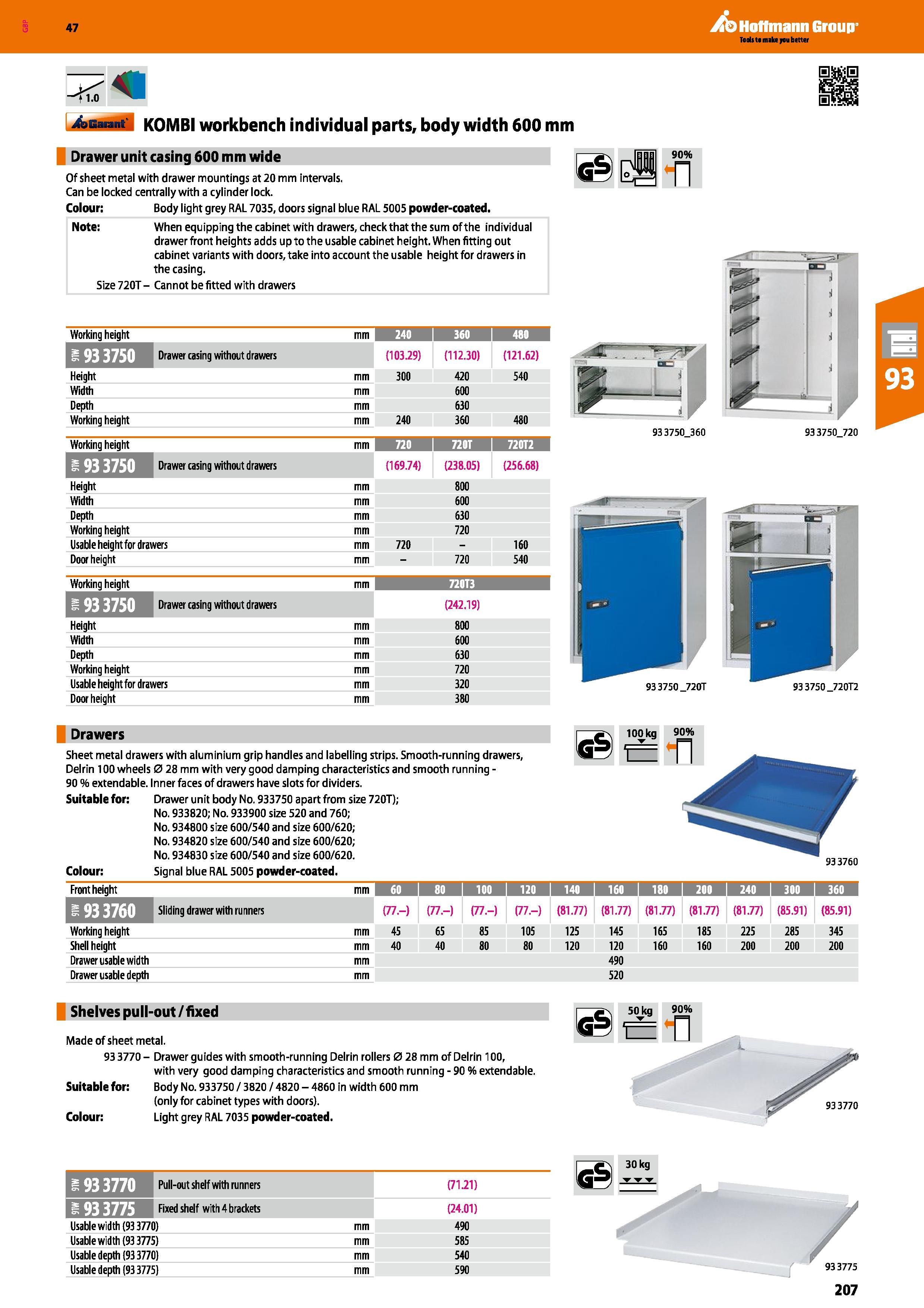

Hoffmann Group 47 <1.0 Auarant KOMBI workbench individual parts, body width 600 mm Drawer unit casing 600 mm wide Of sheet metal with drawer mountings at 20 mm intervals. Can be locked centrally with a cylinder lock. Colour: Body light grey RAL 7035, doors signal blue RAL 5005 powder-coated. Note: When equipping the cabinet with drawers, check that the sum of the individual drawer front heights adds up to the usable cabinet height. When fitting out cabinet variants with doors, take into account the usable height for drawers in the casing. Size 720T - Cannot be fitted with drawers 90% n Working height mm 240 i 360 i 480 Drawer casing without drawers (103.29) (112.30) (121.62) Height mm 300 420 540 Width mm 600 Depth mm 630 Working height mm 240 360 480 Working height mm 720 i 720T I 720T2 Drawer casing without drawers (169.74) (238.05) (256.68) Height Width Depth Working height Usable height for drawers Door height mm 720 800 600 630 720 720 160 540 Working height IM..Inl 720T3 j Drawer casing without drawers (242.19) Height mm 800 Width mm 600 Depth mm 630 Working height mm 720 Usable height for drawers mm 320 Door height mm 380 93 3750_360 93 3750 _720T Drawers Sheet metal drawers with aluminium grip handles and labelling strips. Smooth-running drawers, Delrin 100 wheels 0 28 mm with very good damping characteristics and smooth running -90 % extendable. Inner faces of drawers have slots for dividers. Suitable for: Drawer unit body No. 933750 apart from size 720T); No. 933820; No. 933900 size 520 and 760; No. 934800 size 600/540 and size 600/620; No. 934820 size 600/540 and size 600/620; No. 934830 size 600/540 and size 600/620. Colour: Signal blue RAL 5005 powder-coated. 100kg 90% 933760 Front height mm 60 IKH 100 1 120 I 140 1 160 1 180 1 200 1 240 1 300 1 360 Sliding drawer with runners (77.-) (77.-) (77.-) (77.-) (81.77) (81.77) (81.77) (81.77) (81.77) (85.91) (85.91) Working height mm 45 65 85 105 125 145 165 185 225 285 345 Shell height mm 40 40 80 80 120 120 160 160 200 200 200 Drawer usable width mm 490 Drawer usable depth mm 520 Shelves pull-out/fixed Made of sheet metal. 933770- Drawer guides with smooth-running Delrin rollers 0 28 mm of Delrin 100, with very good damping characteristics and smooth running - 90 % extendable. Suitable for: Body No. 933750 / 3820 / 4820 - 4860 in width 600 mm (only for cabinet types with doors). Colour: Light grey RAL 7035 powder-coated. Pull-out shelf with runners (71.21) Fixed shelf with 4 brackets (24.01) Usable width (93 3770) mm 490 Usable width (93 3775) mm 585 Usable depth (93 3770) mm 540 Usable depth (93 3775) mm 590 93 3750_720 93 3750_720T2
