204 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.204

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 204 0204 ENG Lab2u

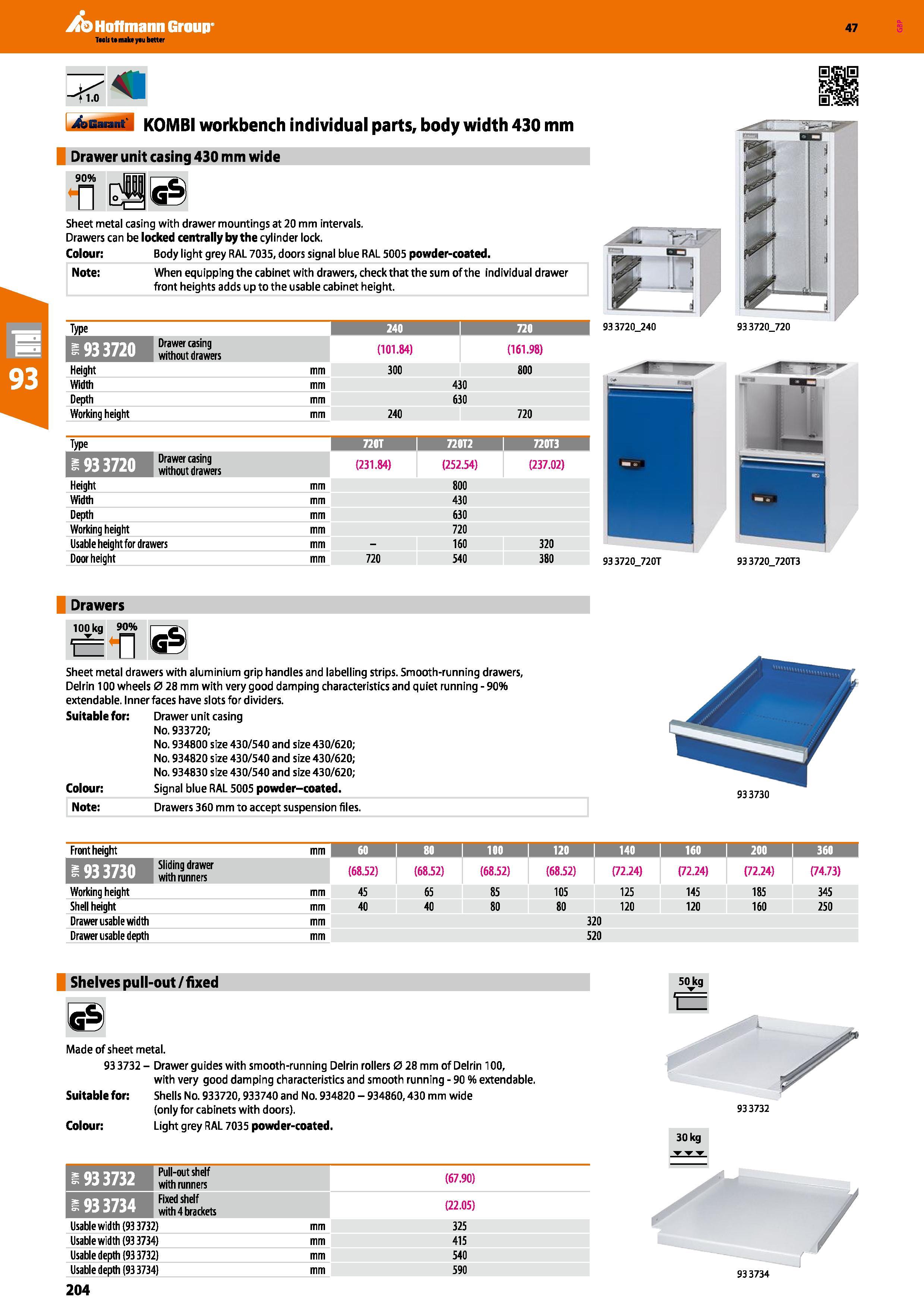

Hoffmann Group 47 <1.0 Auarant KOMBI workbench individual parts, body width 430 mm Drawer unit casing 430 mm wide b“i Sheet metal casing with drawer mountings at 20 mm intervals. Drawers can be locked centrally by the cylinder lock. \y Colour: Body light grey RAL 7035, doors signal blue RAL 5005 powder-coated. r a BO II Ml Note: When equipping the cabinet with drawers, check that the sum of the individual drawer front heights adds up to the usable cabinet height. j _ i-jj W J Type 240 I 720 Drawer casing without drawers (101.84) (161.98) Height mm 300 800 Width mm 430 Depth mm 630 Working height mm 240 720 Type 720T 1 72OT2 i 720T3 RTT7TTH Drawer casing without drawers (231.84) (252.54) (237.02) Height mm 800 Width mm 430 Depth mm 630 Working height mm 720 Usable height for drawers mm - 160 320 Door height mm 720 540 380 933720 240 93 3720_720T 933720_720T3 Drawers 100 kg 90% n Sheet metal drawers with aluminium grip handles and labelling strips. Smooth-running drawers, Delrin 100 wheels 0 28 mm with very good damping characteristics and quiet running -90% extendable. Inner faces have slots for dividers. Suitable for: Drawer unit casing No. 933720; No. 934800 size 430/540 and size 430/620; No. 934820 size 430/540 and size 430/620; No. 934830 size 430/540 and size 430/620; Signal blue RAL 5005 powder-coated. Drawers 360 mm to accept suspension files. Colour: Note: Front height mm 60 80 1 100 120 i 140 160 ; 200 i 360 RTRTTH sliding drawer with runners (68.52) (68.52) (68.52) (68.52) (72.24) (72.24) (72.24) (74.73) Working height mm 45 65 85 105 125 145 185 345 Shell height mm 40 40 80 80 120 120 160 250 Drawer usable width mm 320 Drawer usable depth mm 520 Shelves pull-out/fixed 50 kg Pi- Made of sheet metal. 933732 - Drawer guides with smooth-running Delrin rollers 0 28 mm of Delrin 100, with very good damping characteristics and smooth running - 90 % extendable. Suitable for: Shells No. 933720,933740 and No. 934820 - 934860,430 mm wide (only for cabinets with doors). Colour: Light grey RAL 7035 powder-coated. 933732 30 kg 5SS (67.90) with 4 brackets (22.05) Usable width (93 3732) mm 325 Usable width (93 3734) mm 415 Usable depth (93 3732) mm 540 Usable depth (93 3734) mm 590 93 3720_720 933730 204
