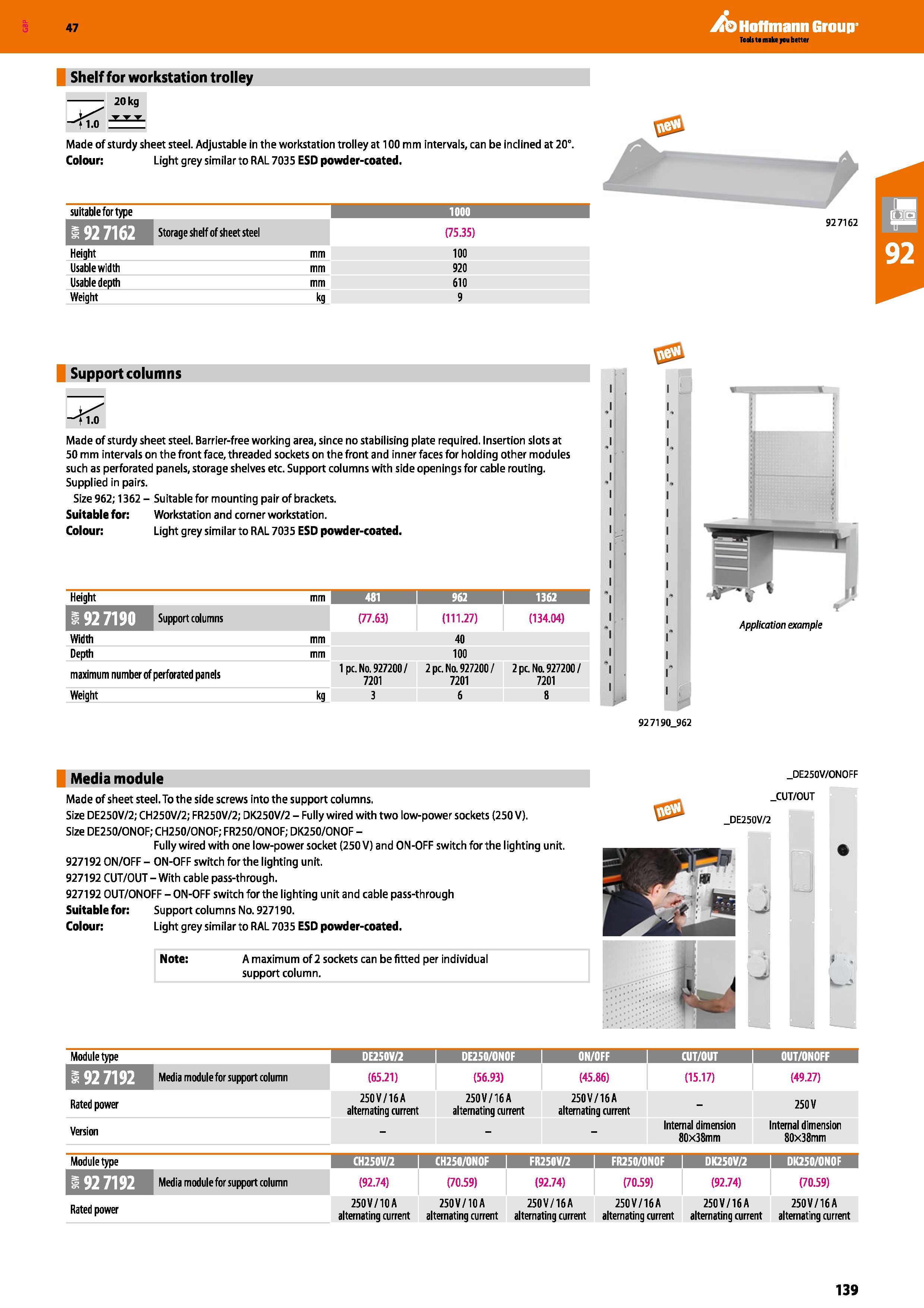

139 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.139

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 139 0139 ENG Lab2u

47 Shelf for workstation trolle Hoffmann Group Made of sturdy sheet steel. Adjustable in the workstation trolley at 100 mm intervals, can be inclined at 20°. Colour: Light grey similar to RAL 7035 ESD powder-coated. suitable for type 1000 I Storage shelf of sheet steel (75.35) Height mm 100 Usable width mm 920 Usable depth mm 610 Weight kg 9 92 7162 Support columns "t 1-0 Made of sturdy sheet steel. Barrier-free working area, since no stabilising plate required. Insertion slots at 50 mm intervals on the front face, threaded sockets on the front and inner faces for holding other modules such as perforated panels, storage shelves etc. Support columns with side openings for cable routing. Supplied in pairs. Size 962; 1362 - Suitable for mounting pair of brackets. Suitable for: Workstation and corner workstation. Colour: Light grey similar to RAL 7035 ESD powder-coated. Height mm 481 i 962 I 1362 S Support columns (77.63) (111.27) (134.04) Width mm 40 Depth mm 100 maximum number of perforated panels 1 pc. No. 927200/ 7201 2 pc. Na 927200 / 7201 2 pcNa 927200/ 7201 Weight kg 3 6 8 Application example 92 7190_962 Media module Made of sheet steel. To the side screws into the support columns. Size DE250V/2; CH250V/2; FR250V/2; DK250V/2 - Fully wired with two low-power sockets (250 V). Size DE250/ONOF; CH250/ONOF; FR250/ONOF; DK250/ONOF - Fully wired with one low-power socket (250 V) and ON-OFF switch for the lighting unit. 927192 ON/OFF - ON-OFF switch for the lighting unit. 927192 CUT/OUT -With cable pass-through. 927192 OUT/ONOFF - ON-OFF switch for the lighting unit and cable pass-through Suitable for: Support columns No. 927190. Colour: Light grey similar to RAL 7035 ESD powder-coated. Note: A maximum of 2 sockets can be fitted per individual support column. _DE250V/ONOFF _CUT/OUT _DE250V/2 Module type H DE250V/2 DE250/0N0F I 0N/0FF I CUT/OUT I OUT/ONOFF 1 Media module for support column (65.21) (56.93) (45.86) (15.17) (49.27) Rated power 250V/16A alternating current 250 V/16 A alternating current 250V/16A alternating current - 250 V Version - - - Internal dimension 80x38mm Internal dimension 80x38mm Module type H CH250W2 CH250/0N0F FR250V/2 FR250/0N0F DK250V/2 1 DK250/0N0F 1 Media module for support column (92.74) (70.59) (92.74) (70.59) (92.74) (70.59) Rated power 250 V/10 A alternating current 250V/10A alternating current 250V/16A alternating current 250V/16A alternating current 250V/16A alternating current 250 V/16 A alternating current 139
