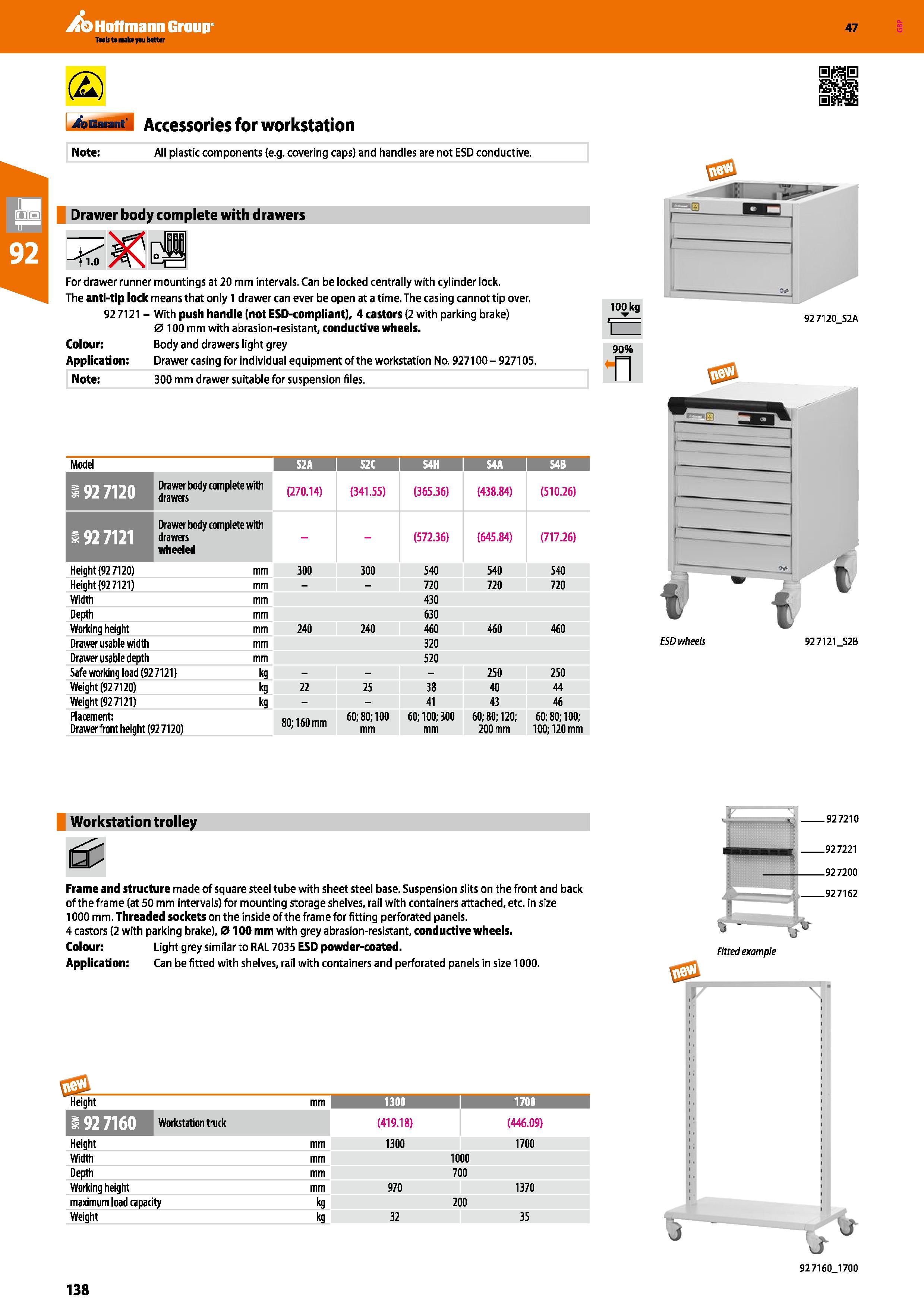

138 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.138

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 138 0138 ENG Lab2u

Hoffmann Group 47 (2) bGaiant Accessories for workstation Note: All plastic components (e.g. covering caps) and handles are not ESD conductive. Drawer body complete with drawers For drawer runner mountings at 20 mm intervals. Can be locked centrally with cylinder lock. The anti-tip lock means that only 1 drawer can ever be open at a time. The casing cannot tip over, 927121 - With push handle (not ESD-compliant), 4 castors (2 with parking brake) 0 100 mm with abrasion-resistant, conductive wheels. Colour: Body and drawers light grey Application: Drawer casing for individual equipment of the workstation No. 927100 - 927105. Note: 300 mm drawer suitable for suspension files. 100kg 90% n 92 7120 52A Model S2A I S2C I S4H I S4A S4B 1927120 Drawer body complete with drawers (270.14) (341.55) (365.36) (438.84) (510.26) Drawer body complete with drawers wheeled - - (572.36) (645.84) (717.26) Height (92 7120) mm 300 300 540 540 540 Height (92 7121) mm - - 720 720 720 Width mm 430 Depth mm 630 Working height mm 240 240 460 460 460 Drawer usable width mm 320 Drawer usable depth mm 520 Safe working load (92 7121) kg - - - 250 250 Weight (927120) kg 22 25 38 40 44 Weight (927121) kg - - 41 43 46 Placement: Drawer front height (92 7120) 80; 160 mm 60; 80; 100 mm 60; 100; 300 mm 60; 80; 120; 200 mm 60; 80; 100; 100; 120 mm i ESD wheels 927121 S2B Workstation trolley 927210 Frame and structure made of square steel tube with sheet steel base. Suspension slits on the front and back of the frame (at 50 mm intervals) for mounting storage shelves, rail with containers attached, etc. in size 1000 mm. Threaded sockets on the inside of the frame for fitting perforated panels. 4 castors (2 with parking brake), 0100 mm with grey abrasion-resistant, conductive wheels. Colour: Light grey similar to RAL 7035 ESD powder-coated. Application: Can be fitted with shelves, rail with containers and perforated panels in size 1000. Height Xl 1300 I 1700 j Workstation truck (419.18) (446.09) Height mm 1300 1700 Width mm 1000 Depth mm 700 Working height mm 970 1370 maximum load capacity kg 200 Weight kg 32 35 92 7160_1700 138
