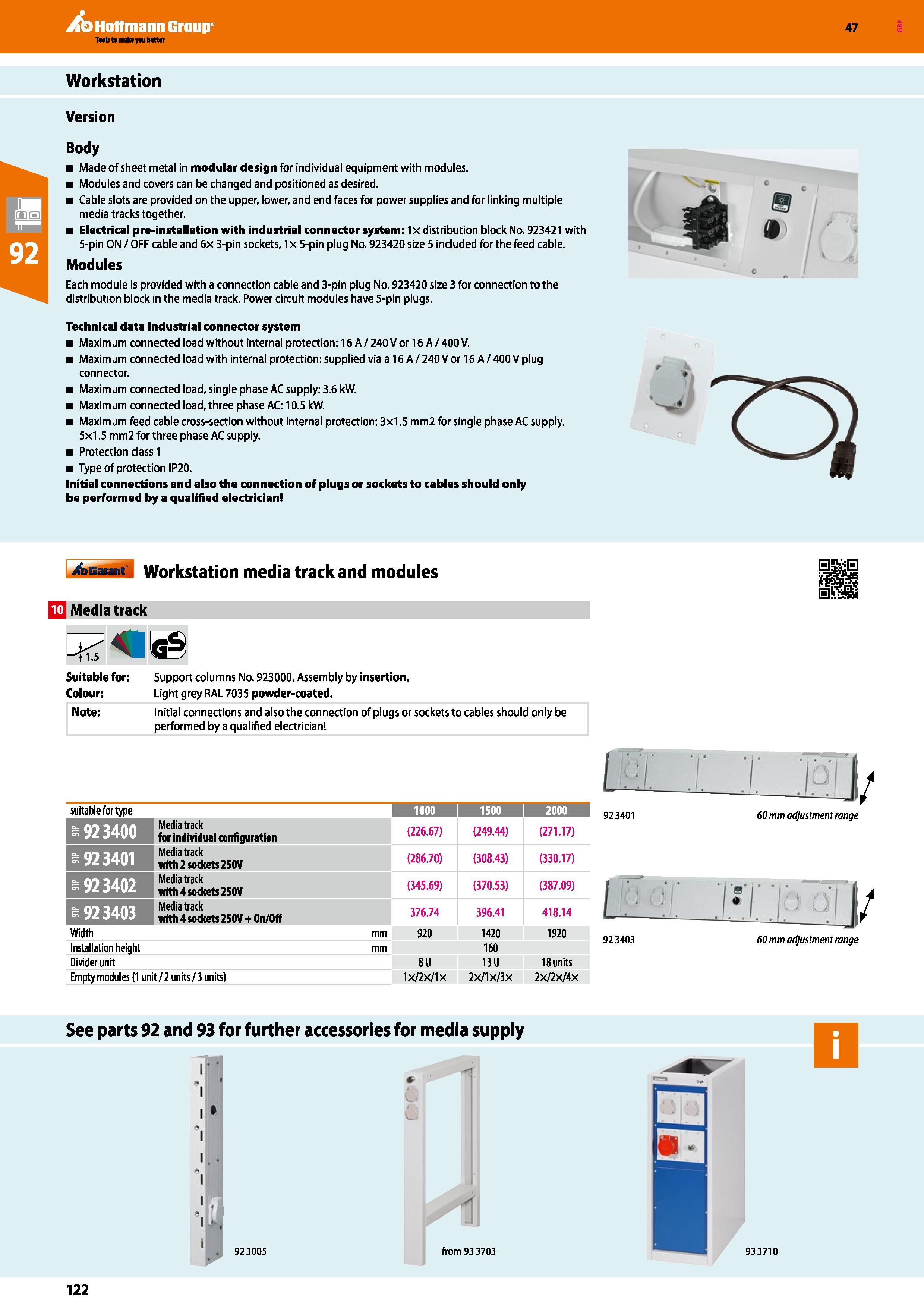

122 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.122

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 122 0122 ENG Lab2u

Hoffmann Group 47 Workstation Version Body Made of sheet metal in modular design for individual equipment with modules. Modules and covers can be changed and positioned as desired. Cable slots are provided on the upper, lower, and end faces for power supplies and for linking multiple media tracks together. Electrical pre-installation with industrial connector system: 1x distribution block No. 923421 with 5-pin ON / OFF cable and 6x 3-pin sockets, 1 x 5-pin plug No. 923420 size 5 included for the feed cable. Modules Each module is provided with a connection cable and 3-pin plug No. 923420 size 3 for connection to the distribution block in the media track. Power circuit modules have 5-pin plugs. Technical data Industrial connector system Maxim um connected load without internal protection: 16 A / 240 V or 16 A / 400 V. Maximum connected load with internal protection: supplied via a 16 A/240 Vor 16 A/400V plug connector. Maximum connected load, single phase AC supply: 3.6 kW. Maximum connected load, three phase AC: 10.5 kW. Maximum feed cable cross-section without internal protection: 3x1.5 mm2 for single phase AC supply. 5x1.5 mm2 for three phase AC supply. Protection class 1 Type of protection IP20. Initial connections and also the connection of plugs or sockets to cables should only be performed by a qualified electrician aBiiaaii Workstation media track and modules f 1-5 Suitable for: Support columns No. 923000. Assembly by insertion. Colour: Light grey RAL 7035 powder-coated. Note: Initial connections and also the connection of plugs or sockets to cables should only be performed by a qualified electrician suitable for type SmfTl Media track for individual configuration Media track with 2 sockets 250V Media track with 4 sockets 250V Media track with 4 sockets 250V+On/Off Width mm Installation height mm Divider unit Empty modules (1 unit / 2 units / 3 units) 1000 I 1500 iKUHB (226.67) (249.44) (271.17) (286.70) (308.43) (330.17) (345.69) (370.53) (387.09) 376.74 396.41 418.14 920 1420 1920 160 8U 13 U 18 units 1X/2X/1X 2X/1X/3X 2X/2X/4X 923401 923403 60 mm adjustment range 1 ft & / 60 mm adjustment range See parts 92 and 93 for further accessories for media supply 1 1 1 \ ‘ V . 5“ ' ’’ 1 923005
