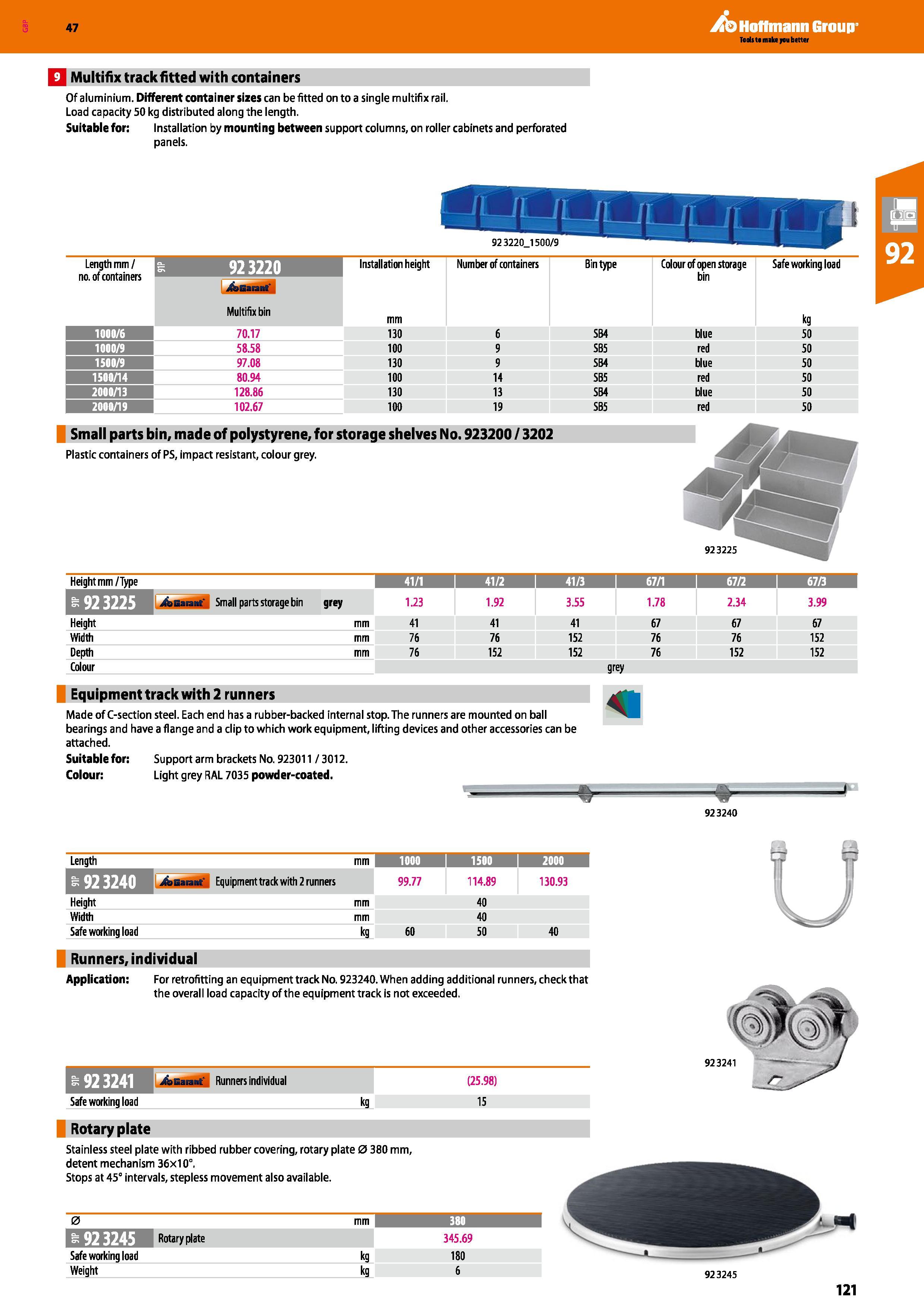

121 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.121

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 121 0121 ENG Lab2u

Hoffmann Group 47 B Multifix track fitted with containers Of aluminium. Different container sizes can befitted on to a single multifix rail. Load capacity 50 kg distributed along the length. Suitable for: Installation by mounting between support columns, on roller cabinets and perforated panels. 92 3220_1500/9 Length mm / no. of containers & 923220 Installation height Number of containers Bin type Colour of open storage bin Safe working load J&Gaianti Multifix bin mm kg 1000/6 70.17 130 6 SB4 blue 50 1000/9 58.58 100 9 SB5 red 50 1500/9 97.08 130 9 SB4 blue 50 1500/14 80.94 100 14 SB5 red 50 2000/13 128.86 130 13 SB4 blue 50 2000/19 102.67 100 19 SB5 red 50 Small parts bin, made of polystyrene, for storage shelves No. 923200 / 3202 Plastic containers of PS, impact resistant, colour grey. Height mm /Type 41/1 i 41/2 1 41/3 i 67/1 I 67/2 I 67/3 1 s 92 3225 Small Darts storaqe bin grey 1.23 1.92 3.55 1.78 2.34 3.99 Height mm 41 41 41 67 67 67 Width mm 76 76 152 76 76 152 Depth mm 76 152 152 76 152 152 Colour grey Equipment track with 2 runners Made of C-section steel. Each end has a rubber-backed internal stop. The runners are mounted on ball bearings and have a flange and a clip to which work equipment, lifting devices and other accessories can be attached. Suitable for: Support arm brackets No. 923011 / 3012. Colour: Light grey RAL 7035 powder-coated. 923240 Length mm 1000 1500 i 2000 f /bGarant Equipment track with 2 runners 99.77 114.89 130.93 Height mm 40 Width mm 40 Safe working load kg 60 50 40 Runners, individual Application: For retrofitting an equipment track No. 923240. When adding additional runners, check that the overall load capacity of the equipment track is not exceeded. x Runners individual (25.98) Safe working load kg 15 Rotary plate Stainless steel plate with ribbed rubber covering, rotary plate 0 380 mm, detent mechanism 36x10°. Stops at 45° intervals, stepless movement also available. 0 mm 380 f I ft 92 3245 mm 345.69 Safe working load kg 180 Weight kg 6 923245 121 923225 923241
