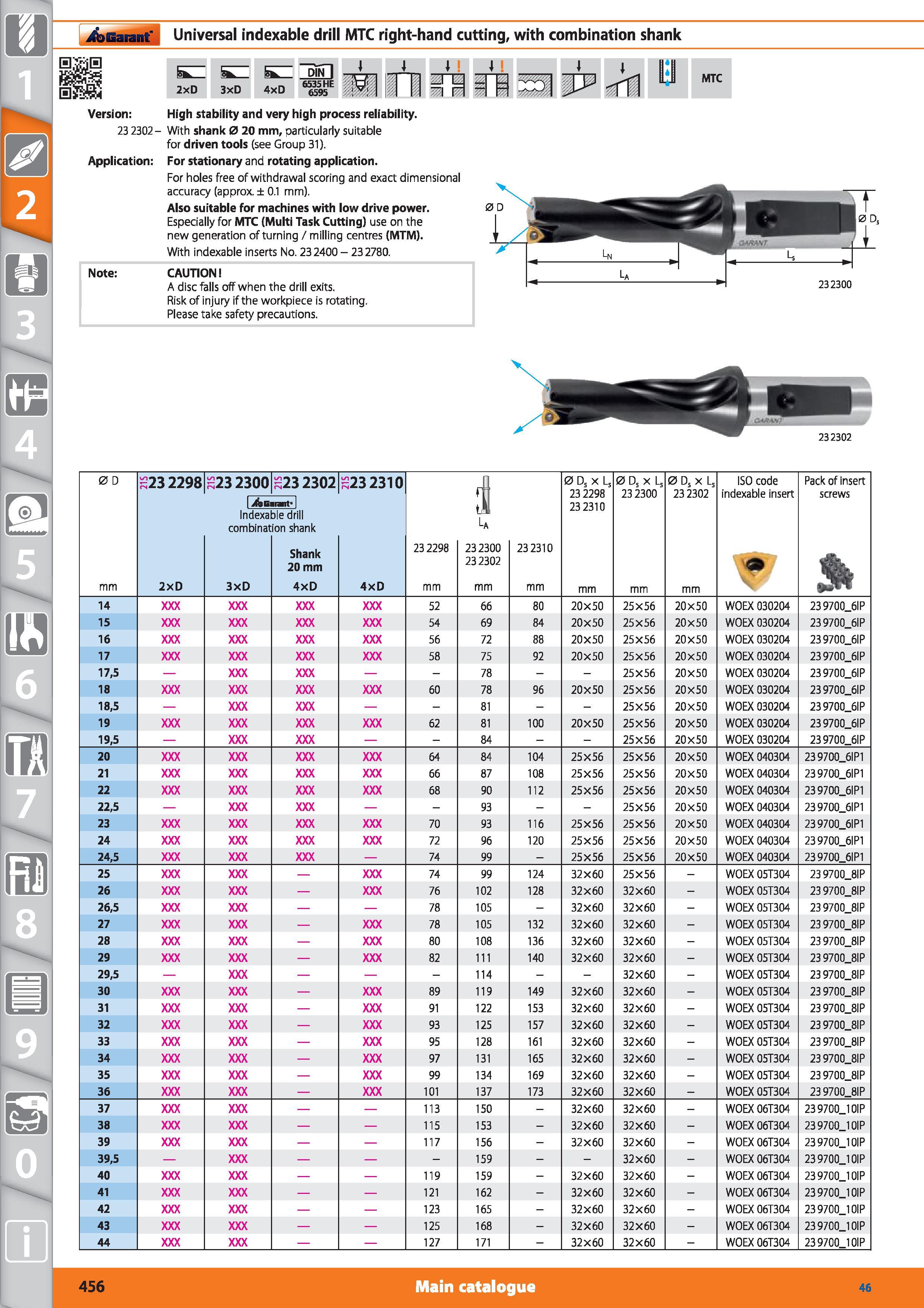

Universal indexable drill Garant MTC right-hand cutting, with combination shank Version 23 2302- Application 2xD 3xD 4xD zrq i r 4 1 s MTC High stability and very high process reliability. With shank 0 20 mm, particularly suitable for driven tools (see Group 31). For stationary and rotating application. For holes free of withdrawal scoring and exact dimensional accuracy (approx. ± 0.1 mm). Also suitable for machines with low drive power. Especially for MTC (Multi Task Cutting) use on the new generation of turning / milling centres (MTM). With indexable inserts No. 232400 - 232780. Note CAUTION A disc falls off when the drill exits. Risk of injury if the workpiece is rotating. Please take safety precautions. 0 D 23 2298 23 2300 232302 232310 0 Ds x Ls 23 2298 23 2310 0 Ds x Ls 23 2300 0 Ds x Ls 23 2302 ISO code indexable insert Pack of insert screws 1 jfeEmnt11 tl L/ Indexable drill combination shank Shank 20 mm 23 2298 232300 232302 23 2310 mm 2xD 3xD 4xD 4xD mm wPr 14 52 66 80 20x50 25x56 20x50 WOEX 030204 23 9700_6IP 15 54 69 84 20x50 25x56 20x50 WOEX 030204 23 9700_6IP 16 56 72 88 20X50 25X56 20X50 WOEX 030204 23 9700_6IP 17 58 75 92 20x50 25x56 20x50 WOEX 030204 23 9700_6IP 17,5 - 78 25X56 20X50 WOEX 030204 23 9700_6IP 18 60 78 96 20X50 25X56 20X50 WOEX 030204 23 9700_6IP 18,5 - 81 25X56 20X50 WOEX 030204 23 9700_6IP 19 62 81 100 20X50 25X56 20X50 WOEX 030204 23 9700_6IP 19,5 - 84 25X56 20X50 WOEX 030204 23 9700_6IP 20 64 84 104 25X56 25X56 20X50 WOEX 040304 239700_6IP1 21 66 87 108 25X56 25X56 20X50 WOEX 040304 23 9700_6IP1 22 68 90 112 25X56 25X56 20X50 WOEX 040304 239700_6IP1 22,5 - 93 25X56 20X50 WOEX 040304 23 9700_6IP1 23 70 93 116 25x56 25x56 20x50 WOEX 040304 23 9700_6IP1 24 72 96 120 25x56 25x56 20x50 WOEX 040304 23 9700_6IP1 24,5 74 99 - 25X56 25X56 20X50 WOEX 040304 239700_6IP1 25 74 99 124 32x60 25x56 - WOEX 05T304 23 9700_8IP 26 76 102 128 32x60 32x60 - WOEX 05T304 23 9700_8IP 26,5 78 105 - 32X60 32X60 - WOEX 05T304 23 9700_8IP 27 78 105 132 32x60 32x60 - WOEX 05T304 23 9700_8IP 28 80 108 136 32X60 32X60 - WOEX 05T304 23 9700_8IP 29 82 111 140 32X60 32X60 - WOEX 05T304 23 9700_8IP 29,5 - 114 32X60 - WOEX 05T304 23 9700_8IP 30 89 119 149 32X60 32X60 - WOEX 05T304 23 9700_8IP 31 91 122 153 32X60 32X60 - WOEX 05T304 23 9700_8IP 32 93 125 157 32X60 32X60 - WOEX 05T304 23 9700_8IP 33 95 128 161 32X60 32X60 - WOEX 05T304 23 9700_8IP 34 97 131 165 32X60 32X60 - WOEX 05T304 23 9700_8IP 35 99 134 169 32X60 32X60 - WOEX 05T304 23 9700_8IP 36 101 137 173 32X60 32X60 - WOEX 05T304 23 9700_8IP 37 113 150 - 32X60 32X60 - WOEX 06T304 239700J0IP 38 115 153 - 32x60 32x60 - WOEX 06T304 239700J0IP 39 117 156 - 32x60 32x60 - WOEX 06T304 239700J0IP 39,5 - 159 32x60 - WOEX 06T304 239700J0IP 40 119 159 - 32x60 32x60 - WOEX 06T304 239700J0IP 41 121 162 - 32x60 32x60 - WOEX 06T304 239700J0IP 42 123 165 - 32x60 32x60 - WOEX 06T304 239700J0IP 43 125 168 - 32X60 32X60 - WOEX 06T304 239700J0IP 44 127 171 - 32x60 32x60 - WOEX 06T304 239700J0IP 456 Main catalogue Hoffmann Group 46 232300 232302
