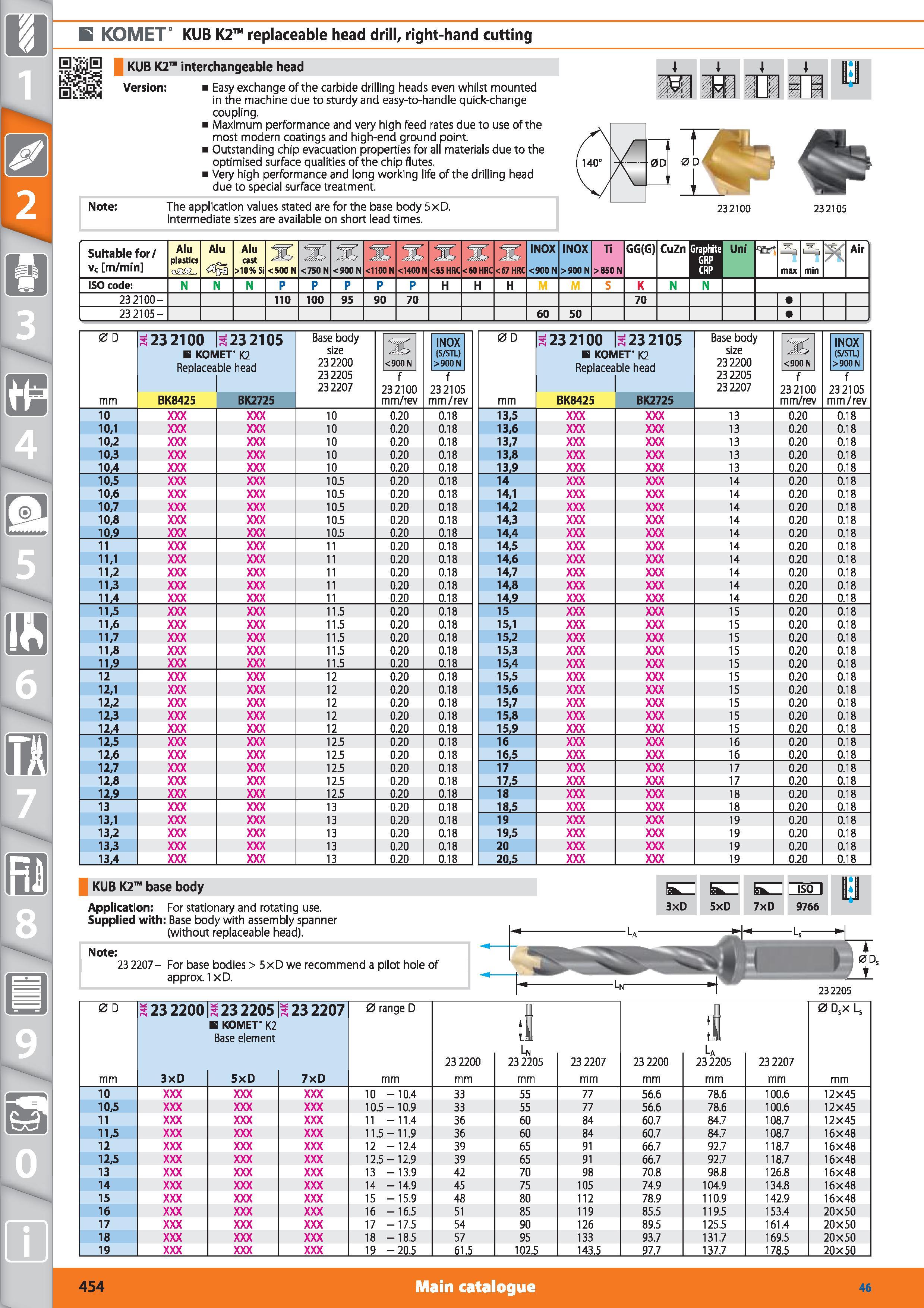

KOMET KUB K2 replaceable head drill, right-hand cutting KUB K2 interchangeable head Version Easy exchange of the carbide drilling heads even whil

KOMET KUB K2 replaceable head drill, right-hand cutting KUB K2 interchangeable head Version Easy exchange of the carbide drilling heads even whilst mounted in the machine due to sturdy and easy-to-handle quick-change coupling. Maximum performance and very high feed rates due to use of the most modem coatings and high-end ground point. Outstanding chip evacuation properties for all materials due to the optimised surface qualities of the chip flutes. Very high performance and long working life of the drilling head due to special surface treatment. 1 Note The application values stated are for the base body 5xD. Intermediate sizes are available on short lead times. >f 0D 232100 232105 Suitable for/ vc m/min Alu plastics osm Alu cast >10% Si <500 N <750 N <900 N 1 I <1100 N <1400 N 13 n 900 N Ti >850 N GG(G) CuZn i Uni te- _5f= max min Air ISO code N P H K N 1 1 23 2100- 110 100 95 90 70 70 23 2105 - 60 50 0 D s 23 2100 N 23 2105 KOMET K2 Replaceable head Base body size 232200 232205 232207 <900 N INOX (S/STL) >900N 0 D s 23 2100 Is 23 2105 KOMET K2 Replaceable head Base body size 232200 232205 232207 <900 N INOX (S/STL) >900N f 23 2100 mm/rev f 23 2105 mm/rev f 23 2100 mm/rev f 23 2105 mm/rev mm BK8425 BK2725 mm BK8425 BK2725 10 10 0.20 0.18 13,5 13 0.20 0.18 10,1 10 0.20 0.18 13,6 13 0.20 0.18 10,2 10 0.20 0.18 13,7 13 0.20 0.18 10,3 10 0.20 0.18 13,8 13 0.20 0.18 10.4 10 0.20 0.18 13.9 13 0.20 0.18 10,5 10.5 0.20 0.18 14 14 0.20 0.18 10,6 10.5 0.20 0.18 14,1 14 0.20 0.18 10,7 10.5 0.20 0.18 14,2 14 0.20 0.18 10,8 10.5 0.20 0.18 14,3 14 0.20 0.18 10.9 10.5 0.20 0.18 14,4 14 0.20 0.18 11 11 0.20 0.18 14,5 14 0.20 0.18 11,1 11 0.20 0.18 14,6 14 0.20 0.18 11,2 11 0.20 0.18 14,7 14 0.20 0.18 11,3 11 0.20 0.18 14,8 14 0.20 0.18 11,4 11 0.20 0.18 14.9 14 0.20 0.18 11,5 11.5 0.20 0.18 15 15 0.20 0.18 11,6 11.5 0.20 0.18 15,1 15 0.20 0.18 11,7 11.5 0.20 0.18 15,2 15 0.20 0.18 11,8 11.5 0.20 0.18 15,3 15 0.20 0.18 11.9 11.5 0.20 0.18 15,4 15 0.20 0.18 12 12 0.20 0.18 15,5 15 0.20 0.18 12,1 12 0.20 0.18 15,6 15 0.20 0.18 12,2 12 0.20 0.18 15,7 15 0.20 0.18 12,3 12 0.20 0.18 15,8 15 0.20 0.18 12,4 12 0.20 0.18 15,9 15 0.20 0.18 12,5 12.5 0.20 0.18 16 16 0.20 0.18 12,6 12.5 0.20 0.18 16.5 16 0.20 0.18 12,7 12.5 0.20 0.18 17 17 0.20 0.18 12,8 12.5 0.20 0.18 17,5 17 0.20 0.18 12.9 12.5 0.20 0.18 18 18 0.20 0.18 13 13 0.20 0.18 18.5 18 0.20 0.18 13,1 13 0.20 0.18 19 19 0.20 0.18 13,2 13 0.20 0.18 19,5 19 0.20 0.18 13,3 13 0.20 0.18 20 19 0.20 0.18 13,4 13 0.20 0.18 20.5 19 0.20 0.18 KUB K2 base body Application For stationary and rotating use. Supplied with Base body with assembly spanner (without replaceable head). 3xD 5xD 7xD iso l 9766 Note 23 2207- For base bodies > 5xD we recommend a pilot hole of approx. 1xD. 232205 0 D s 23 2200 1232205 s 23 2207 0 range D DSX Ls KOMET K2 i Base element tl La 23 2200 23 2205 23 2207 23 2200 232205 23 2207 mm 3xD 5xD 7xD mm 10 10 -10.4 33 55 77 56.6 78.6 100.6 12x45 10,5 10.5-10.9 33 55 77 56.6 78.6 100.6 12x45 11 11 -11.4 36 60 84 60.7 84.7 108.7 12x45 11,5 11.5-11.9 36 60 84 60.7 84.7 108.7 16x48 12 12 -12.4 39 65 91 66.7 92.7 118.7 16x48 12,5 12.5-12.9 39 65 91 66.7 92.7 118.7 16x48 13 13 -13.9 42 70 98 70.8 98.8 126.8 16x48 14 14 -14.9 45 75 105 74.9 104.9 134.8 16x48 15 15 -15.9 48 80 112 78.9 110.9 142.9 16x48 16 16 -16.5 51 85 119 85.5 119.5 153.4 20X50 17 17 -17.5 54 90 126 89.5 125.5 161.4 20X50 18 18 -18.5 57 95 133 93.7 131.7 169.5 20X50 19 19 -20.5 61.5 102.5 143.5 97.7 137.7 178.5 20x50 454 Main catalogue Hoffmann Group 46
