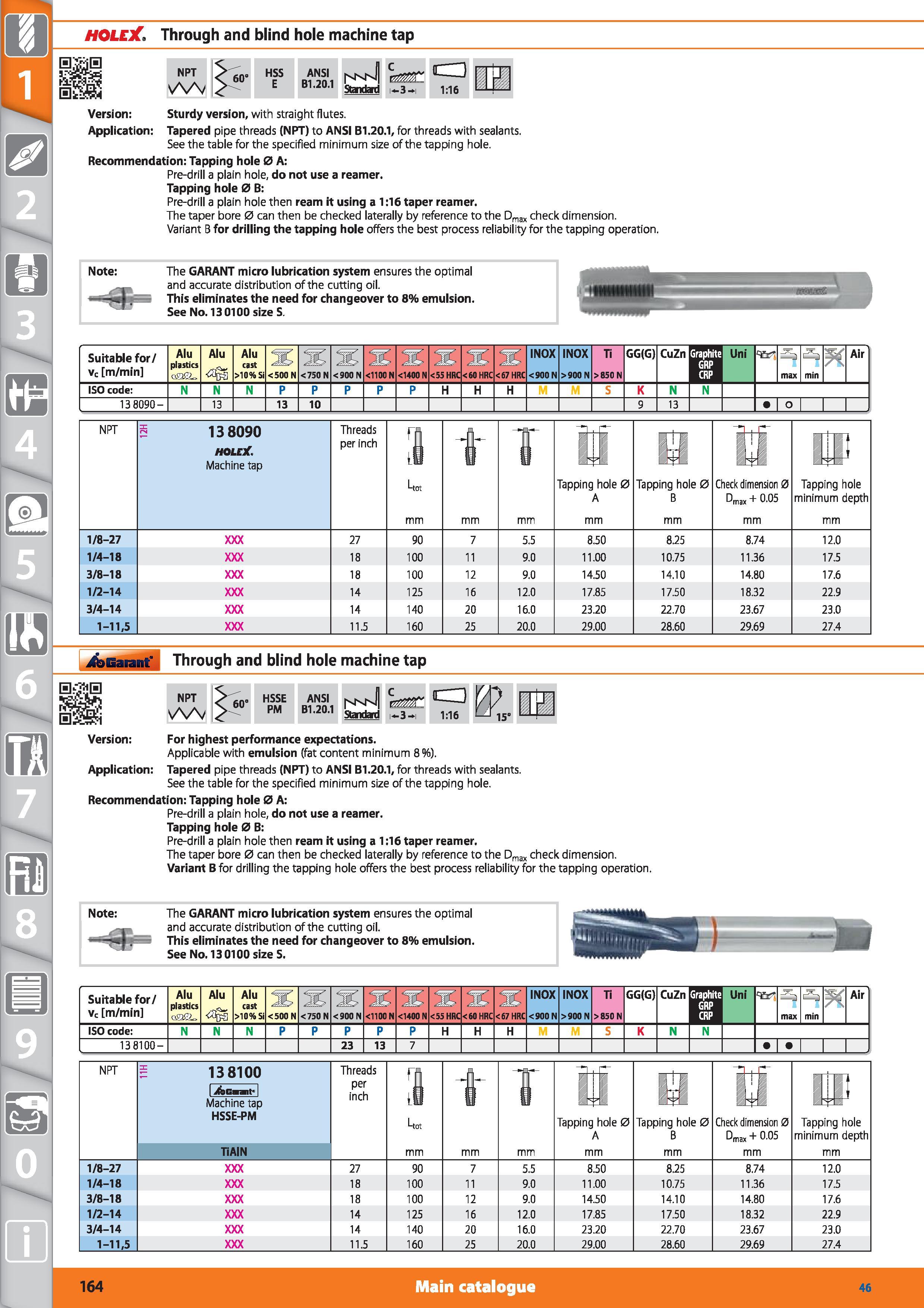

Through and blind hole machine tap HOLEX Sturdy version, with straight flutes Application Tapered pipe threads (NPT) to ANSI B1 20 1, for threads

Through and blind hole machine tap HOLEX Sturdy version, with straight flutes. Application Tapered pipe threads (NPT) to ANSI B1.20.1, for threads with sealants. See the table for the specified minimum size of the tapping hole. Recommendation Tapping hole 0 A Pre-drill a plain hole, do not use a reamer. Tapping hole 0 B Pre-drill a plain hole then ream it using a 1:16 taper reamer. The taper bore 0 can then be checked laterally by reference to the Dmax check dimension. Variant B for drilling the tapping hole offers the best process reliability for the tapping operation. Note The GARANT micro lubrication system ensures the optimal and accurate distribution of the cutting oil. This eliminates the need for changeover to 8% emulsion. See No. 130100 size S. Suitable for/ vc m/min Alu plastics qSQSZU Alu cast >10% Si <500 N 25 s -r T T' m 900 N Ti >850 N GG(G) CuZn Gra G C 9 Uni max min Air <750 N <900 N ISO code N P H K N 13 8090 - 13 13 10 9 13 1 o 1 1 1 NPT 1 138090 HOLEX Machine tap Threads per inch Uot mm t mm 1 mm r r W 2 w Tapping hole 0 A mm Tapping hole 0 B mm Check dimension 0 Dmax + 0-05 mm Tapping hole minimum depth mm 1/8-27 27 90 7 5.5 8.50 8.25 8.74 12.0 1/4-18 18 100 11 9.0 11.00 10.75 11.36 17.5 3/8-18 18 100 12 9.0 14.50 14.10 14.80 17.6 1/2-14 14 125 16 12.0 17.85 17.50 18.32 22.9 3/4-14 14 140 20 16.0 23.20 22.70 23.67 23.0 1-11,5 11.5 160 25 20.0 29.00 28.60 29.69 27.4 i&Gaiant" Through and blind hole machine tap NPT Wv 60" HSSE PM ANSI B1.20.1 Standard a 1:16 P 15“ Version For highest performance expectations. Applicable with emulsion (fat content minimum 8 %). Application Tapered pipe threads (NPT) to ANSI B1.20.1, for threads with sealants. See the table for the specified minimum size of the tapping hole. Recommendation Tapping hole 0 A Pre-drill a plain hole, do not use a reamer. Tapping hole 0 B Pre-drill a plain hole then ream it using a 1:16 taper reamer. The taper bore 0 can then be checked laterally by reference to the Dmax check dimension. Variant B for drilling the tapping hole offers the best process reliability for the tapping operation. Suitable for/ Vc m/min Alu plastics qSXZU Alu cast >10% Si <500 N <750 N <900 N <1100N FjrFl <1400 N 2 n 900 N Ti >850 N GG(G) CuZn Gra G C 1 Uni 'Er max min Air ISO code N P H K N 138100- 23 13 7 1 1 NPT 138100 1 Aim 1 Machine tap HSSE-PM TiAIN Threads per inch Uot mm t mm i mm p Tapping hole 0 A mm Tapping hole 0 B mm Check dimension 0 Dmax 0 05 mm Tapping hole minimum depth mm 1/8-27 27 90 7 5.5 8.50 8.25 8.74 12.0 1/4-18 18 100 11 9.0 11.00 10.75 11.36 17.5 3/8-18 18 100 12 9.0 14.50 14.10 14.80 17.6 1/2-14 14 125 16 12.0 17.85 17.50 18.32 22.9 3/4-14 14 140 20 16.0 23.20 22.70 23.67 23.0 1-11,5 11.5 160 25 20.0 29.00 28.60 29.69 27.4 164 Main catalogue Hoffmann Group 46 Note The GARANT micro lubrication system ensures the optimal and accurate distribution of the cutting oil. This eliminates the need for changeover to 8% emulsion. See No. 130100 size S.
