Synchronised blind hole machine tap Garant with internal coolant supply M 60 HSSE PM Sturdy version with right-hand helix and shank to DIN 1835-B

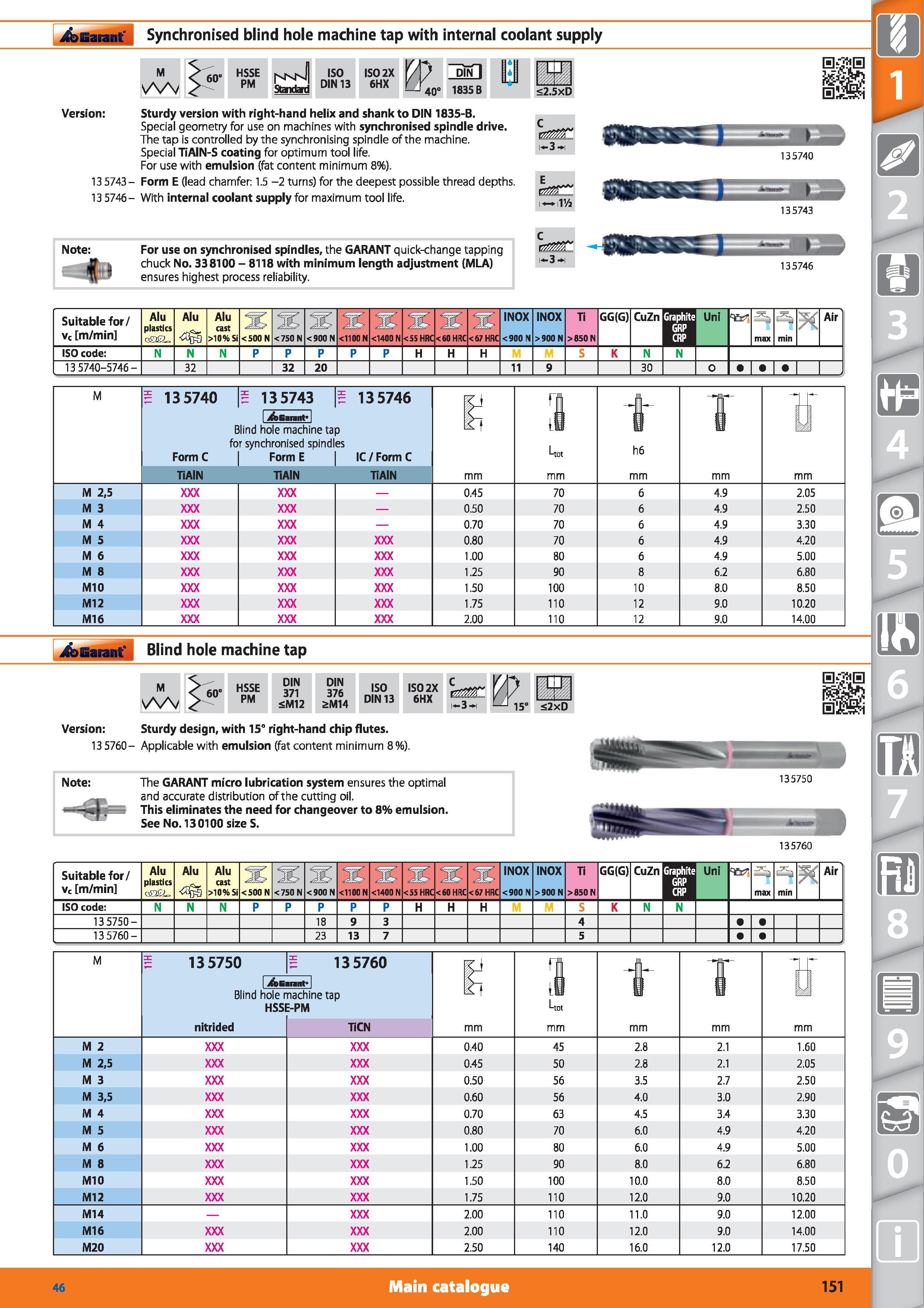

Synchronised blind hole machine tap Garant with internal coolant supply M 60 HSSE PM Sturdy version with right-hand helix and shank to DIN 1835-B. Special geometry for use on machines with synchronised spindle drive. The tap is controlled by the synchronising spindle of the machine. Special TiAIN-S coating for optimum tool life. For use with emulsion (fat content minimum 8%). 13 5743- Form E (lead chamfer 1.5 -2 turns) for the deepest possible thread depths. 13 5746- With internal coolant supply for maximum tool life. C GS n-3-h E - i1Vi Note For use on synchronised spindles, the GARANT quick-change tapping chuck No. 338100 - 8118 with minimum length adjustment (MLA) ensures highest process reliability. i-3 i Suitable for/ vc m/min Alu plastics Alu cast >10% Si <500 N <750 N <900 N FitH <1100 N r Fi <1400 N 1 <55 HRC PH <60 HRC <67 HRC INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn Gra G C 1 Uni max min Air ISO code N P H K N 13 5740-5746 - 32 32 20 11 9 30 O 1 SSSSSEK1 M 1 135740 135743 l 135746 1 XbEarant I Blind hole machine tap for synchronised spindles Form C Form E IC / Form C TiAIN TiAIN mm Uot mm t h6 mm 1 mm nn M 2,5 0.45 70 6 4.9 2.05 M 3 0.50 70 6 4.9 2.50 M 4 0.70 70 6 4.9 3.30 M 5 0.80 70 6 4.9 4.20 M 6 1.00 80 6 4.9 5.00 M 8 1.25 90 8 6.2 6.80 M10 1.50 100 10 8.0 8.50 Ml 2 1.75 110 12 9.0 10.20 M16 2.00 110 12 9.0 14.00 frmgi Blind hole machine tap M 60" HSSE PM DIN 371 SM12 DIN 376 SM14 ISO DIN 13 IS02X 6HX 1-3 1 <2xD Version Sturdy design, with 15° right-hand chip flutes. 13 5760- Applicable with emulsion (fat content minimum 8%). Note The GARANT micro lubrication system ensures the optimal and accurate distribution of the cutting oil. This eliminates the need for changeover to 8% emulsion. See No. 130100 size S. 1° - 3 135750 135760 Suitable for/ Vc m/min Alu plastics oS3 L> Alu cast >10% Si <500 N <750 N <900 N <1100 N <1400 N n PH n INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn B Uni Err max min Air ISO code N P H K N 1 1 13 5750- 18 9 3 4 z_\ 13 5760- 23 13 7 5 ZJ M 2 M 2,5 M 3 M 3,5 M 4 M 5 M 6 M 8 M10 Ml 2 M14 M16 M20 135750 135760 Blind hole machine tap HSSE-PM nitrided TiCN mm 0.40 0.45 0.50 0.60 0.70 0.80 1.00 1.25 1.50 1.75 2.00 2.00 2.50 mm 45 50 56 56 63 70 80 90 100 110 110 110 140 mm 2.8 2.8 3.5 4.0 4.5 6.0 6.0 8.0 10.0 12.0 11.0 12.0 16.0 2.1 2.1 2.7 3.0 3.4 4.9 4.9 6.2 8.0 9.0 9.0 9.0 12.0 mm 1.60 2.05 2.50 2.90 3.30 4.20 5.00 6.80 8.50 10.20 12.00 14.00 17.50 m Main catalogue Hoffmann Group 46 151 Standard ISO DIN 13 IS02X 6HX W 1% B 40° 1835 B <2.5xD Version
