Push broaches set Version Consists of push broaches HSS No 290405 including the necessary shims No 29 0410 and guide bushes No 290415 The tools a

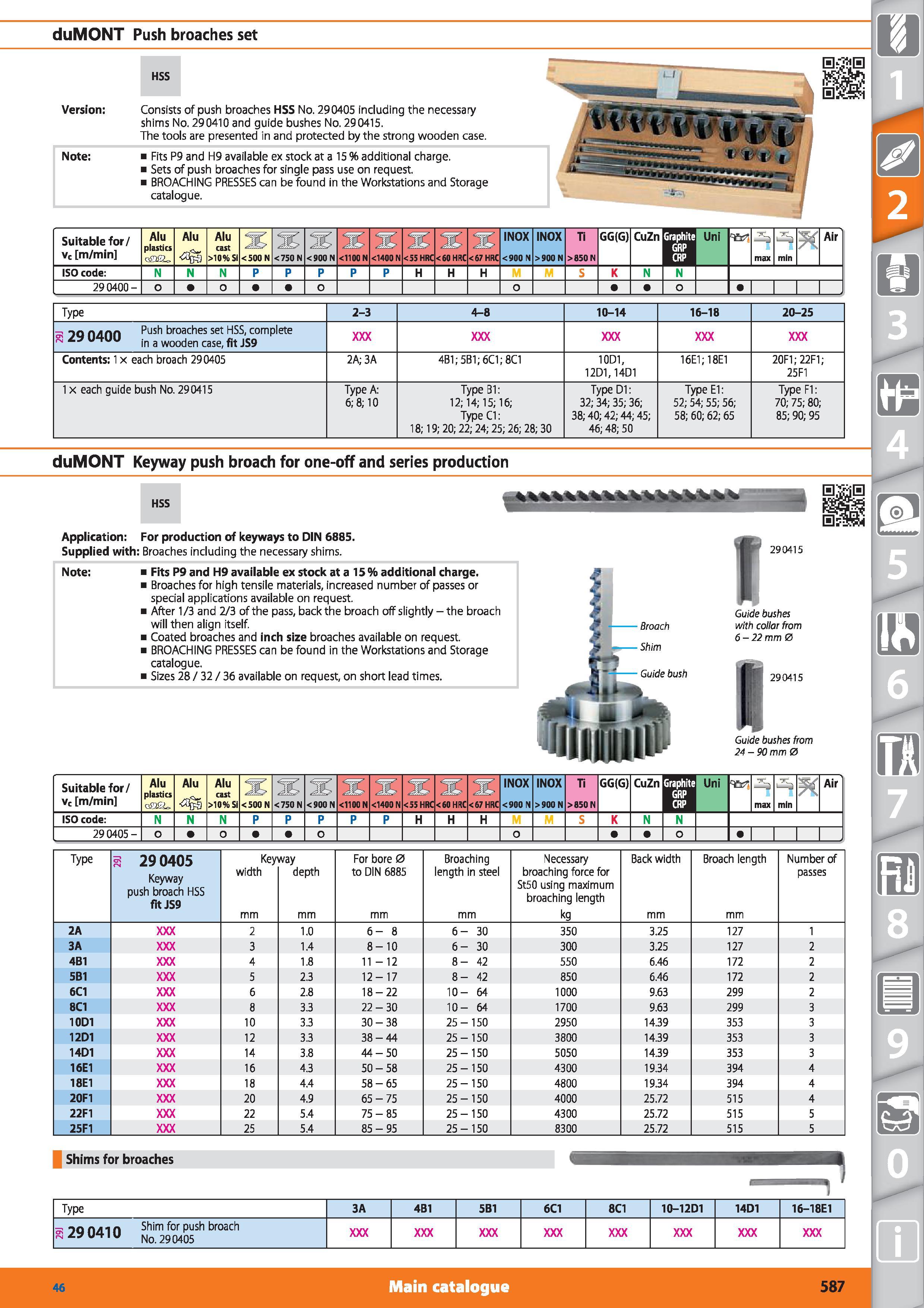

Push broaches set Version Consists of push broaches HSS No. 290405 including the necessary shims No. 29 0410 and guide bushes No. 290415. The tools are presented in and protected by the strong wooden case. Note Fits P9 and H9 available ex stock at a 15 additional charge. Sets of push broaches for single pass use on request. BROACHING PRESSES can be found in the Workstations and Storage catalogue. Suitable for/ vc m/min Alu plastics oSOSU Alu cast >10% Si <500 N <750 N <900 N W\ <1100 N 1 1 <1400 N 2 Ic 0E INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn B Uni max 3 min Air ISO code N P H K N 290400- 1 J Type 2-3 4-8 10-14 16-18 20-25 - no n/inn Push broaches set HSS, complete gj 29 0400 in a w(xxjen casei fjf j59 Contents 1 x each broach 290405 2A;3A 4B1;5B1; 6C1; 8C1 10D1, 12D1,14D1 16E1; 18E1 20F1; 22F1; 25F1 1 x each guide bush No. 290415 Type A 6; 8; 10 Type B1 12; 14; 15; 16; Type Cl 18; 19; 20; 22; 24; 25; 26; 28; 30 Type D1 32; 34; 35; 36; 38; 40; 42; 44; 45; 46; 48; 50 Type El 52; 54; 55; 56; 58; 60; 62; 65 Type F1 70; 75; 80; 85; 90; 95 duMONT Keyway push broach for one-off and series production HSS Application For production of keyways to DIN 6885. Supplied with Broaches including the necessary shims. Note Fits P9 and H9 available ex stock at a 15% additional charge. Broaches for high tensile materials, increased number of passes or special applications available on request. After 1/3 and 2/3 of the pass, back the broach off slightly - the broach will then align itself. Coated broaches and inch size broaches available on request. BROACHING PRESSES can be found in the Workstations and Storage catalogue. Sizes 28/ 32 / 36 available on request, on short lead times. Guide bushes from 24-90 mm 0 Suitable for/ vc m/min Alu plastics omu Alu cast >10% Si <500 N <750 N <900 N <1100 N pjW <1400 N n INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn ISO code N P H K N 290405- o Uni 'EB' H max min U Type s 290405 Keyway push broach HSS fit JS9 Key width mm way depth mm For bore 0 to DIN 6885 mm Broaching length in steel mm Necessary broaching force for St50 using maximum broaching length kg Back width mm Broach length mm Number of passes 2A 2 1.0 6- 8 6-30 350 3.25 127 1 3A 3 1.4 8-10 6-30 300 3.25 127 2 4B1 4 1.8 11 - 12 8-42 550 6.46 172 2 5B1 5 2.3 12-17 8-42 850 6.46 172 2 6C1 6 2.8 18-22 10- 64 1000 9.63 299 2 8C1 8 3.3 22-30 10- 64 1700 9.63 299 3 10D1 10 3.3 30-38 25-150 2950 14.39 353 3 12D1 12 3.3 38-44 25-150 3800 14.39 353 3 14D1 14 3.8 44-50 25-150 5050 14.39 353 3 16E1 16 4.3 50-58 25-150 4300 19.34 394 4 18E1 18 4.4 58-65 25-150 4800 19.34 394 4 20F1 20 4.9 65-75 25-150 4000 25.72 515 4 22F1 22 5.4 75-85 25-150 4300 25.72 515 5 25F1 25 5.4 85-95 25-150 8300 25.72 515 5 Shims for broaches Type 3A 4B1 5B1 6C1 8C1 10-12D1 14D1 16-18E1 IQ riAi n Shim for push broach rsZVlWIU No. 290405 Main catalogue Hoffmann Group 46 587
