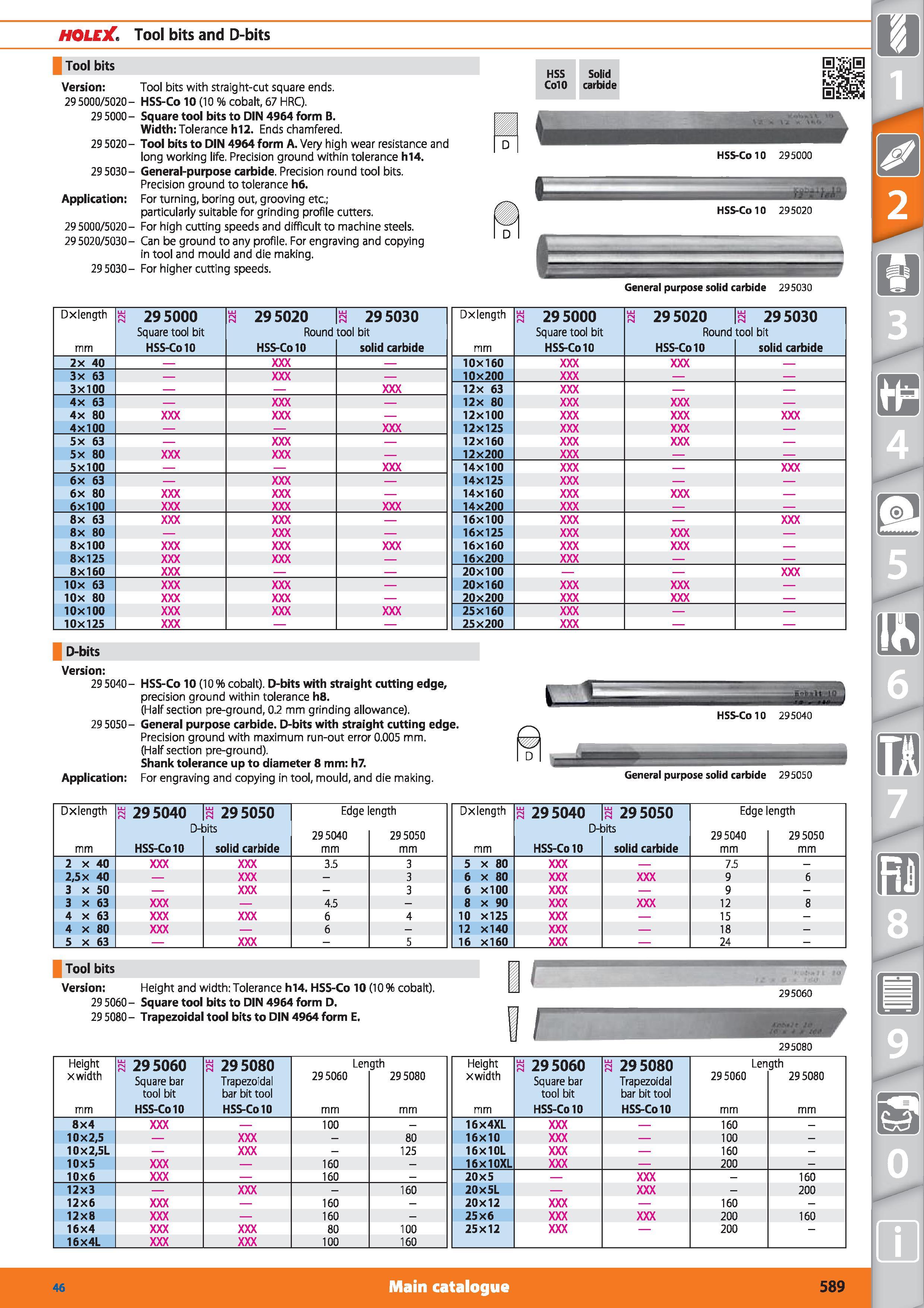

HOLEX Tool bits and D-bits Tool bits Version Tool bits with straight-cut square ends 295000/5020- HSS-Co 10 (10 cobalt, 67 HRC) 29 5000- Square t

HOLEX Tool bits and D-bits Tool bits Version Tool bits with straight-cut square ends. 295000/5020- HSS-Co 10 (10 cobalt, 67 HRC). 29 5000- Square tool bits to DIN 4964 form B. Width Tolerance h12. Ends chamfered. 29 5020- Tool bits to DIN 4964 form A. Very high wear resistance and long working life. Precision ground within tolerance h14. 29 5030- General-purpose carbide. Precision round tool bits. Precision ground to tolerance h6. Application For turning, boring out, grooving etc.; particularly suitable for grinding profile cutters. 295000/5020- For high cutting speeds and difficult to machine steels. 295020/5030- Can be ground to any profile. For engraving and copying in tool and mould and die making. 295030- For higher cutting speeds. HSS ColO Solid carbide HSS-ColO 295000 HSS-ColO 295020 General purpose solid carbide 295030 Dxlength mm 3 295000 Square tool bit HSS-ColO H 295020 Round HSS-ColO a 295030 tool bit solid carbide Dxlength mm H 295000 Square tool bit HSS-ColO H 295020 Round HSS-ColO H 295030 tool bit solid carbide 2x 40 10x160 3x 63 10x200 3x100 12x 63 4x 63 12x 80 4x 80 12x100 4x100 12x125 5x 63 12x160 5x 80 12x200 5x100 14x100 6x 63 14x125 6x 80 14x160 6x100 14x200 8x 63 16x100 8x 80 16x125 8x100 16x160 8x125 16x200 8x160 20x100 lOx 63 20x160 lOx 80 20x200 10x100 25x160 10x125 25x200 D-bits Version 29 5040- HSS-Co 10 (10 cobalt). D-bits with straight cutting edge, precision ground within tolerance h8. (Half section pre-ground, 0.2 mm grinding allowance). 29 5050- General purpose carbide. D-bits with straight cutting edge. Precision ground with maximum run-out error 0.005 mm. (Half section pre-ground). Shank tolerance up to diameter 8 mm h7. Application For engraving and copying in tool, mould, and die making. General purpose solid carbide 295050 Dxlength mm a 295040 D- HSS-ColO a 295050 sits solid carbide Edge 295040 mm ength 29 5050 mm Dxlength mm n 295040 D- HSS-ColO s 295050 sits solid carbide Edge 295040 mm ength 295050 mm 2 x 40 3.5 3 5 x 80 7.5 - 2,5 x 40 - 3 6 x 80 9 6 3 x 50 - 3 6 X100 9 - 3 x 63 4.5 - 8 x 90 12 8 4 x 63 6 4 10 X125 15 - 4 x 80 6 - 12 X140 18 - 5 x 63 - 5 16 X160 24 - Tool bits Version Height and width Tolerance h14. HSS-Co 10 (10 cobalt). 29 5060- Square tool bits to DIN 4964 form D. 29 5080- Trapezoidal tool bits to DIN 4964 form E. 295080 Height x width mm a 295060 Square bar tool bit HSS-Co 10 3 295080 Trapezoidal bar bit tool HSS-Co 10 Len 295060 mm gth 29 5080 mm Height xwidth mm 3 295060 Square bar tool bit HSS-ColO 3 295080 Trapezoidal bar bit tool HSS-Co 10 Len 295060 mm gth 295080 mm 8x4 100 - 16X4XL 160 - 10X2,5 - 80 16X10 100 - 10x2,5L 125 16X10L 160 10X5 160 - 16X10XL 200 - 10X6 160 - 20X5 160 12X3 - 160 20X5L - 200 12X6 160 - 20X12 160 - 12X8 160 - 25X6 200 160 16X4 80 100 25X12 200 - 16X4L 100 160 Main catalogue Hoffmann Group 46 589
