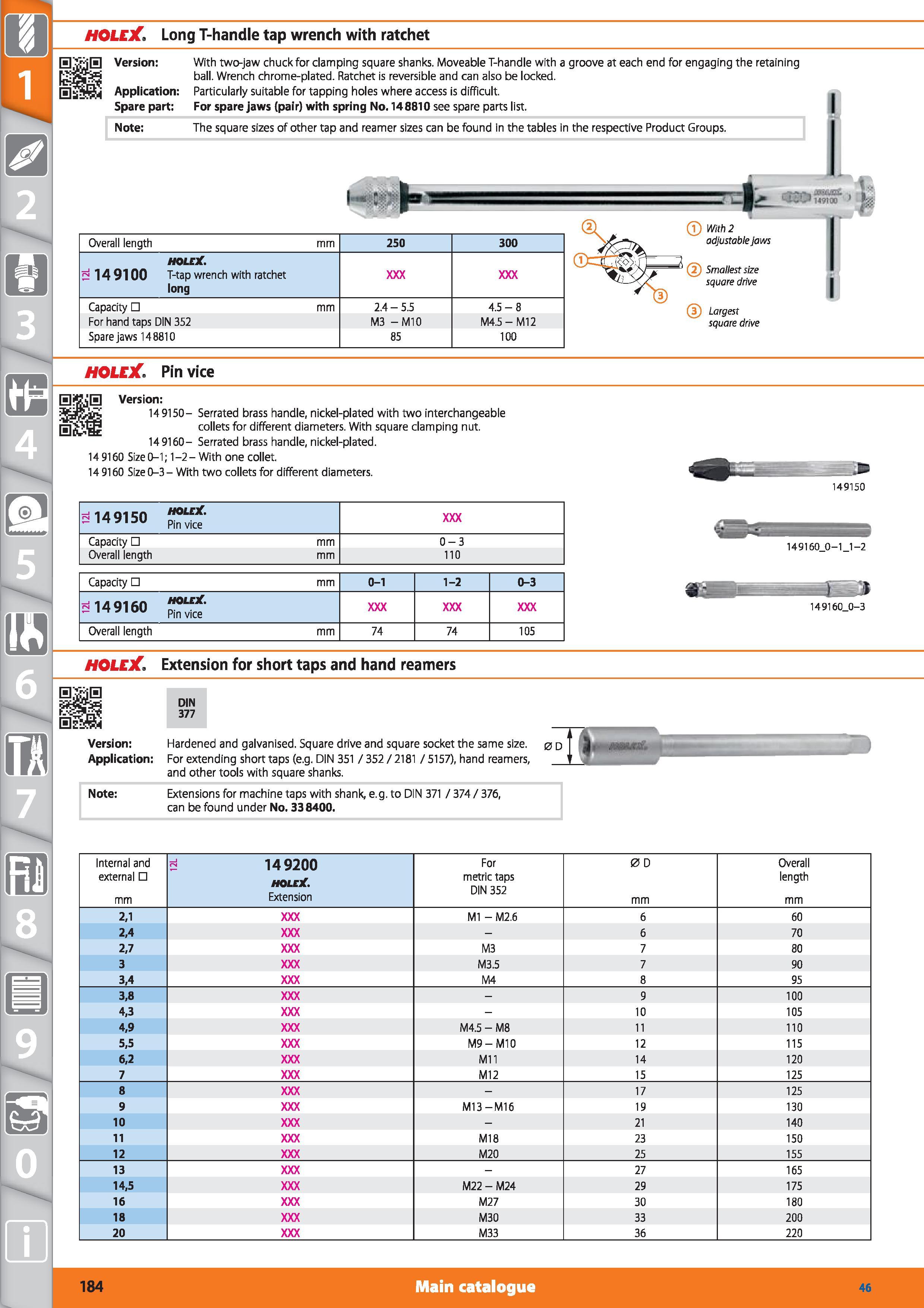

Long T-handle tap wrench HOLEX with ratchet Version Application With two-jaw chuck for clamping square shanks. Moveable T-handle with a groove at each end for engaging the retaining ball. Wrench chrome-plated. Ratchet is reversible and can also be locked. Particularly suitable for tapping holes where access is difficult. Spare part For spare jaws (pair) with spring No. 148810 see spare parts list. Note The square sizes of other tap and reamer sizes can be found in the tables in the respective Product Groups. Overall length mm 250 300 HOLEX 14 9100 T-tap wrench with ratchet long Capacity mm 2.4-5.5 4.5-8 For hand taps DIN 352 M3 -M10 M4.5-M12 Spare jaws 148810 85 100 (T) With 2 adjustable jaws (2) Smallest size square drive (3) Largest square drive HOLEX Pin vice Version 149150- Serrated brass handle, nickel-plated with two interchangeable collets for different diameters. With square clamping nut. 149160- Serrated brass handle, nickel-plated. 14 9160 Size 0-1; 1-2- With one collet. 14 9160 Size 0-3- With two collets for different diameters. d 149150 HOLEX Pin vice Capacity mm 0-3 Overall length mm 110 Capacity mm 0-1 1-2 0-3 S 149160 holbC. Pin vice Overall length mm 74 74 105 149150 149160 0-1 1-2 149160_0-3 HOLEX Extension for short taps and hand reamers 0 DIN 377 Version Hardened and galvanised. Square drive and square socket the same size. 0 Application For extending short taps (e.g. DIN 351 / 352 / 2181 / 5157), hand reamers, and other tools with square shanks. Note Extensions for machine taps with shank, e.g. to DIN 371 / 374 / 376, can be found under No. 338400. Internal and external mm d 149200 holbC. Extension For metric taps DIN 352 0 D mm Overall length mm 2,1 Ml - M2.6 6 60 2,4 - 6 70 2,7 M3 7 80 3 M3.5 7 90 3,4 M4 8 95 3,8 - 9 100 4,3 - 10 105 4,9 M4.5 - M8 11 110 5,5 M9-M10 12 115 6,2 Mil 14 120 7 M12 15 125 8 - 17 125 9 M13-M16 19 130 10 - 21 140 11 M18 23 150 12 M20 25 155 13 - 27 165 14,5 M22 - M24 29 175 16 M27 30 180 18 M30 33 200 20 M33 36 220 184 Main catalogue Hoffmann Group 46
