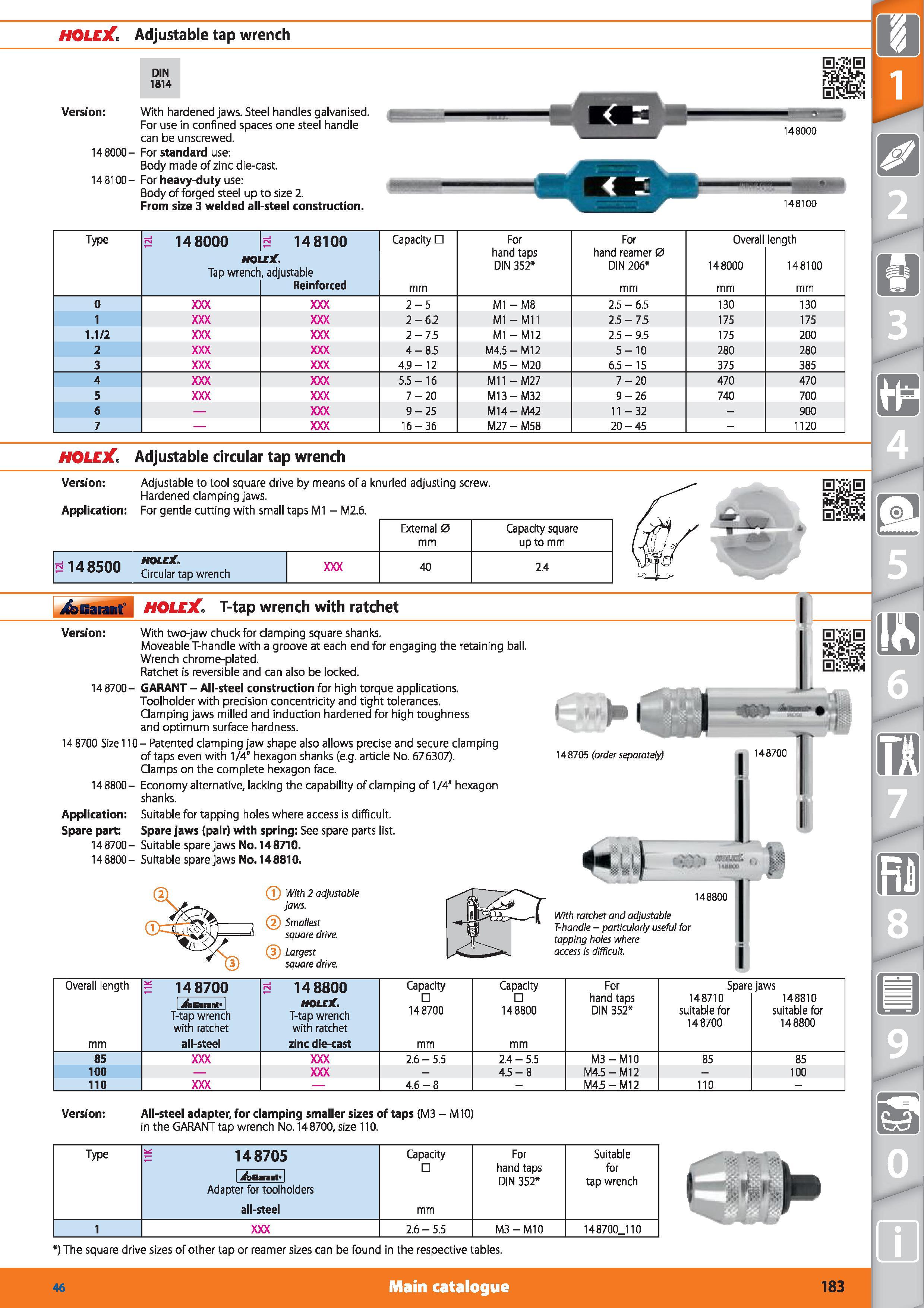

Adjustable tap wrench Version 148000- 148100- DIN 1814 With hardened jaws. Steel handles galvanised. For use in confined spaces one steel handle can be unscrewed. For standard use Body made of zinc die-cast. For heavy-duty use Body of forged steel up to size 2. From size 3 welded all-steel construction. 148100 Type d 148000 HOI Tap wrench d 148100 ETC. , adjustable Reinforced Capacity mm For hand taps DIN 352 For hand reamer 0 DIN 206 mm Overall 148000 mm length 148100 mm 0 2-5 Ml -M8 2.5 - 6.5 130 130 1 2-6.2 Ml -M11 2.5 - 7.5 175 175 1.1/2 2-7.5 Ml -M12 2.5 - 9.5 175 200 2 4-8.5 M4.5-M12 5-10 280 280 3 4.9-12 M5 - M20 6.5-15 375 385 4 5.5-16 Mil -M27 7-20 470 470 5 7-20 M13-M32 9-26 740 700 6 9-25 M14-M42 11 -32 - 900 7 16-36 M27 - M58 20-45 - 1120 HOLEX Adjustable circular tap wrench Version Adjustable to tool square drive by means of a knurled adjusting screw. Hardened clamping jaws. Application For gentle cutting with small taps Ml - M2.6. External 0 mm Capacity square up to mm 2148500 Sf„pw ,ch 40 2.4 Garant HOLE7C. T-tap wrench with ratchet Version With two-jaw chuck for clamping square shanks. Moveable T-handle with a groove at each end for engaging the retaining ball. Wrench chrome-plated. Ratchet is reversible and can also be locked. 148700- GARANT - All-steel construction for high torque applications. Toolholder with precision concentricity and tight tolerances. Clamping jaws milled and induction hardened for high toughness and optimum surface hardness. 14 8700 Size 110- Patented clamping jaw shape also allows precise and secure clamping of taps even with 1/4” hexagon shanks (e.g. article No. 676307). Clamps on the complete hexagon face. 148800- Economy alternative, lacking the capability of clamping of 1/4" hexagon shanks. Application Suitable for tapping holes where access is difficult. Spare part Spare jaws (pair) with spring See spare parts list. 148700- Suitable spare jaws No. 148710. 148800- Suitable spare jaws No. 148810. (J With 2 adjustable jaws. 2 ( Smallest square drive. (5) Largest square drive. 148705 (order separately) With ratchet and adjustable T-handle - particularly useful for tapping holes where access is difficult. Overall length mm 148700 Garant I T-tap wrench with ratchet all-steel d 148800 holhC. T-tap wrench with ratchet zinc die-cast Capacity 148700 mm Capacity 148800 mm For hand taps DIN 352 Spare 148710 suitable for 148700 jaws 148810 suitable for 148800 85 2.6 - 5.5 2.4 - 5.5 M3-M10 85 85 100 - 4.5-8 M4.5-M12 - 100 110 4.6-8 - M4.5-M12 110 - Version All-steel adapter, for clamping smaller sizes of taps (M3 - M10) in the GARANT tap wrench No. 148700, size 110. Type 148705 jfbGanmt11 Adapter for toolholders all-steel Capacity mm For hand taps DIN 352 Suitable for tap wrench 1 2.6 - 5.5 M3 - Ml 0 148700J10 ) The square drive sizes of other tap or reamer sizes can be found in the respective tables. Main catalogue Hoffmann Group 46 183
