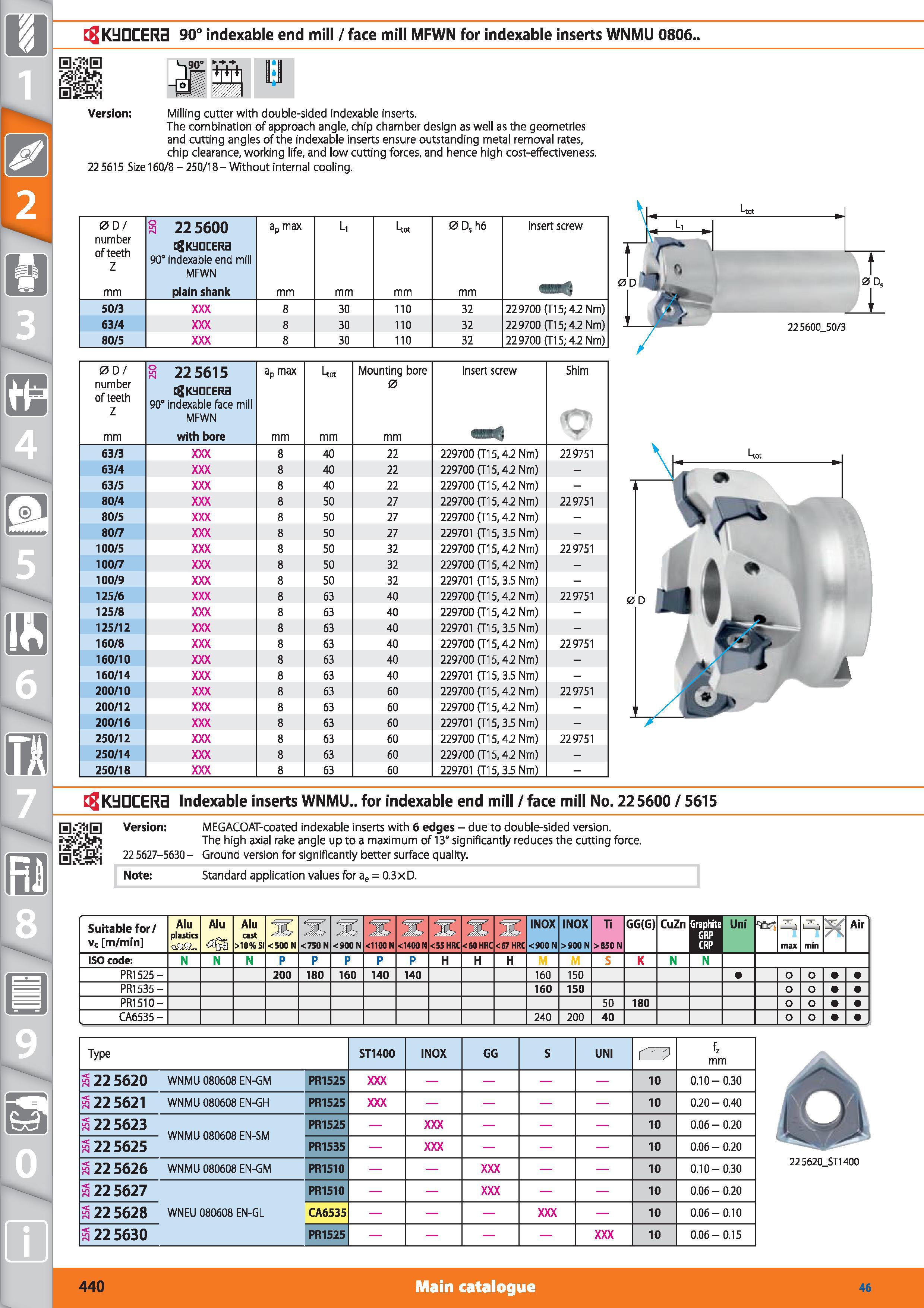

Kyocera 90° indexable end mill / face mill MFWN for indexable inserts WNMU 0806 , Version Milling cutter with double-sided indexable inserts The

Kyocera 90° indexable end mill / face mill MFWN for indexable inserts WNMU 0806., Version Milling cutter with double-sided indexable inserts. The combination of approach angle, chip chamber design as well as the geometries and cutting angles of the indexable inserts ensure outstanding metal removal rates, chip clearance, working life, and low cutting forces, and hence high cost-effectiveness. 22 5615 Size 160/8 - 250/18- Without internal cooling. 0 D / number of teeth Z mm s 22 5600 cgKuacERa 90° indexable end mill MFWN plain shank 3p max mm L, mm L-tOt mm 0 Ds h6 mm Insert screw 50/3 8 30 110 32 229700 (TI 5; 4.2 Nm) 63/4 8 30 110 32 229700 CT15; 4.2 Nm) 80/5 8 30 110 32 229700 (TI 5; 4.2 Nm) \ Uot - 0 D / number of teeth Z mm s 22 5615 cgKuacERa 90° indexable face mill MFWN with bore ap max mm Uot mm Mounting bore 0 mm Insert screw Shim 63/3 8 40 22 229700 (TI 5,4.2 Nm) 229751 63/4 8 40 22 229700 (T15,4.2 Nm) - 63/5 8 40 22 229700 (T15,4.2 Nm) - 80/4 8 50 27 229700 (T15,4.2 Nm) 229751 80/5 8 50 27 229700 (T15,4.2 Nm) - 80/7 8 50 27 229701 (TI 5,3.5 Nm) - 100/5 8 50 32 229700 (T15,4.2 Nm) 229751 100/7 8 50 32 229700 (TI 5,4.2 Nm) - 100/9 8 50 32 229701 (TI 5,3.5 Nm) - 125/6 8 63 40 229700 (TI 5,4.2 Nm) 229751 125/8 8 63 40 229700 (T15,4.2 Nm) - 125/12 8 63 40 229701 (T15,3.5 Nm) - 160/8 8 63 40 229700 (T15,4.2 Nm) 229751 160/10 8 63 40 229700 (TI 5,4.2 Nm) - 160/14 8 63 40 229701 (T15,3.5 Nm) - 200/10 8 63 60 229700 (TI 5,4.2 Nm) 229751 200/12 8 63 60 229700 (T15,4.2 Nm) - 200/16 8 63 60 229701 (TI 5,3.5 Nm) - 250/12 8 63 60 229700 (T15,4.2 Nm) 229751 250/14 8 63 60 229700 (TI 5,4.2 Nm) - 250/18 8 63 60 229701 (T15,3.5 Nm) - 0 D. 22 5600_50/3 0 D Kyocera Indexable inserts WNMU for indexable end mill / face mill No. 22 5600 / 5615 Version 225627-5630- MEGACOAT-coated indexable inserts with 6 edges - due to double-sided version. The high axial rake angle up to a maximum of 13° significantly reduces the cutting force. Ground version for significantly better surface quality. Note Standard application values for ae 0,3 xD, Suitable for/ vc m/min Alu plastics q L> Alu cast >10% Si <500 N <750 N <900 N FtEH <1100 N <1400 N 900 N Ti >850 N GG(G) CuZn B Uni max min Air ISO code N P H K N 1 1 PR1525- 200 180 160 140 140 160 150 PR1535- 160 150 PR1510- 50 180 CA6535 - 240 200 40 Type ST1400 INOX GG S UNI 0 fz mm 22 5620 WNMU 080608 EN-GM PR1525 10 0.10-0.30 S 22 5621 WNMU 080608 EN-GH PR1525 10 0.20 - 0.40 S 22 5623 PR1525 10 0.06 - 0.20 s 22 5625 PR1535 10 0.06 - 0.20 s 22 5626 wnmu 080608 en-gm PR1510 10 0.10-0.30 s 22 5627 PR1510 10 0.06 - 0.20 s 22 5628 wneu 080608 en-gl CA6535 10 0.06-0.10 3 22 5630 PR1525 10 0.06-0.15 225620_ST1400 440 Main catalogue Hoffmann Group 46
