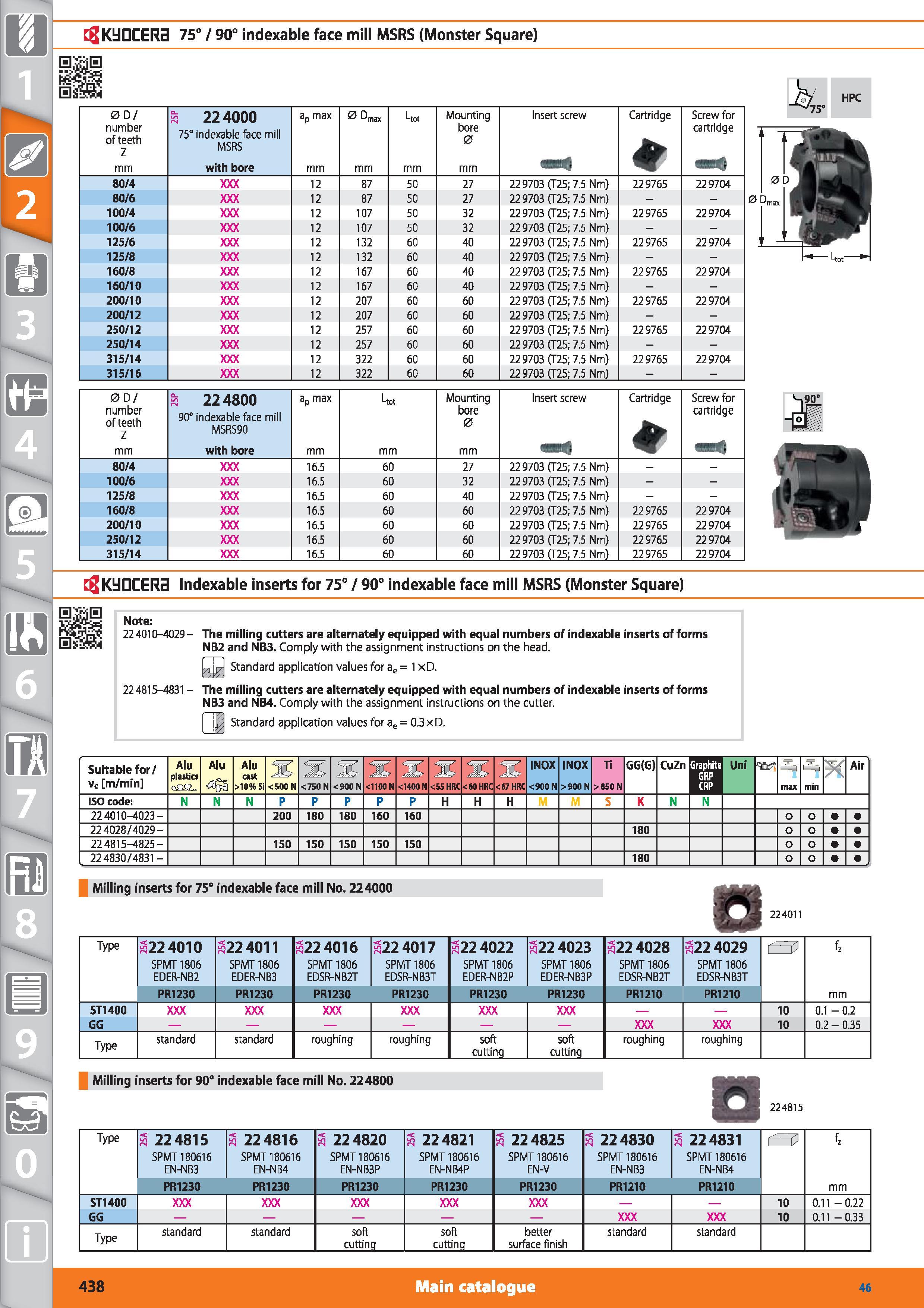

Kyocera 75° / 90° indexable face mill MSRS (Monster Square) 0 D/ number of teeth z s 224000 75° indexable face mill MSRS ap max Dmax l-tot Mounti

Kyocera 75° / 90° indexable face mill MSRS (Monster Square) 0 D/ number of teeth z s 224000 75° indexable face mill MSRS ap max Dmax l-tot Mounting bore 0 Insert screw Cartridge Screw for cartridge mm with bore mm w 80/4 12 87 50 27 229703 (725 7.5 Nm) 229765 229704 80/6 12 87 50 27 229703 (725 7.5 Nm) 100/4 12 107 50 32 229703 (725 7.5 Nm) 229765 229704 100/6 12 107 50 32 229703 (725 7.5 Nm) 125/6 12 132 60 40 229703 (725 7.5 Nm) 229765 229704 125/8 12 132 60 40 229703 (725 7.5 Nm) 160/8 12 167 60 40 229703 (725 7.5 Nm) 229765 229704 160/10 12 167 60 40 229703 (725 7.5 Nm) 200/10 12 207 60 60 229703 (725 7.5 Nm) 229765 229704 200/12 12 207 60 60 229703 (725 7.5 Nm) 250/12 12 257 60 60 229703 (725 7.5 Nm) 229765 229704 250/14 12 257 60 60 229703 (725 7.5 Nm) 315/14 12 322 60 60 229703 (725 7.5 Nm) 229765 229704 315/16 12 322 60 60 22 9703 (725 7.5 Nm) 0D / number of teeth Z mm 3 224800 90° indexable face mill MSRS90 with bore ap max mm kot mm Mounting bore 0 mm Insert screw Cartridge + Screw for cartridge 80/4 16.5 60 27 229703 (725 7.5 Nm) 100/6 16.5 60 32 229703 (725 7.5 Nm) 125/8 16.5 60 40 229703 (725 7.5 Nm) 160/8 16.5 60 60 229703 (725 7.5 Nm) 229765 229704 200/10 16.5 60 60 229703 (725 7.5 Nm) 229765 229704 250/12 16.5 60 60 229703 (725 7.5 Nm) 229765 229704 315/14 16.5 60 60 229703 (725 7.5 Nm) 229765 229704 KtlDCERa Indexable inserts for 75° / 90° indexable face mill MSRS (Monster Square) Note 22 4010-4029 - The milling cutters are alternately equipped with equal numbers of indexable inserts of forms NB2 and NB3. Comply with the assignment instructions on the head. -l J7 Standard application values for ae 1XD. 22 4815-4831 - The milling cutters are alternately equipped with equal numbers of indexable inserts of forms NB3 and NB4. Comply with the assignment instructions on the cutter. Standard application values for ae 0.3 xD. Suitable for/ vc m/min Alu plastics omu Alu cast >10% Si <500 N <750 N <900 N pH <1100N <1400 N 900 N Ti >850 N GG(G) CuZn i Uni JP max 3a min Air ISO code N P H K N 1 1 224010-4023- 200 180 180 160 160 224028/4029- 180 224815-4825- 150 150 150 150 150 224830/4831 - 180 Milling inserts for 75° indexable face mill No. 224000 224011 Type 224010 SPMT 1806 EDER-NB2 322 4011 SPM7 1806 EDER-NB3 3224016 SPM7 1806 EDSR-NB27 322 4017 SPMT 1806 EDSR-NB3T 3224022 SPMT 1806 EDER-NB2P 3224023 SPMT 1806 EDER-NB3P 3224028 SPMT 1806 EDSR-NB2T 3224029 SPMT 1806 EDSR-NB3T fz PR1230 PR1230 PR1230 PR1230 PR1230 PR1230 PR1210 PR1210 mm 5T1400 10 0.1 - 0.2 GG 10 0.2 - 0.35 Type standard standard roughing roughing soft cutting soft cutting roughing roughing Milling inserts for 90° indexable face mill No. 224800 224815 Type 3 224815 SPMT 180616 EN-NB3 3 224816 SPMT 180616 EN-NB4 3 224820 SPMT 180616 EN-NB3P 3 224821 SPMT 180616 EN-NB4P 3 224825 SPMT 180616 EN-V 3 224830 SPMT 180616 EN-NB3 3 224831 SPMT 180616 EN-NB4 fz PR1230 PR1230 PR1230 PR1230 PR1230 PR1210 PR1210 mm ST1400 10 0.11 -0.22 GG 10 0.11 -0.33 Type standard standard soft cutting soft cutting better surface finish standard standard 438 Main catalogue Hoffmann Group 46
