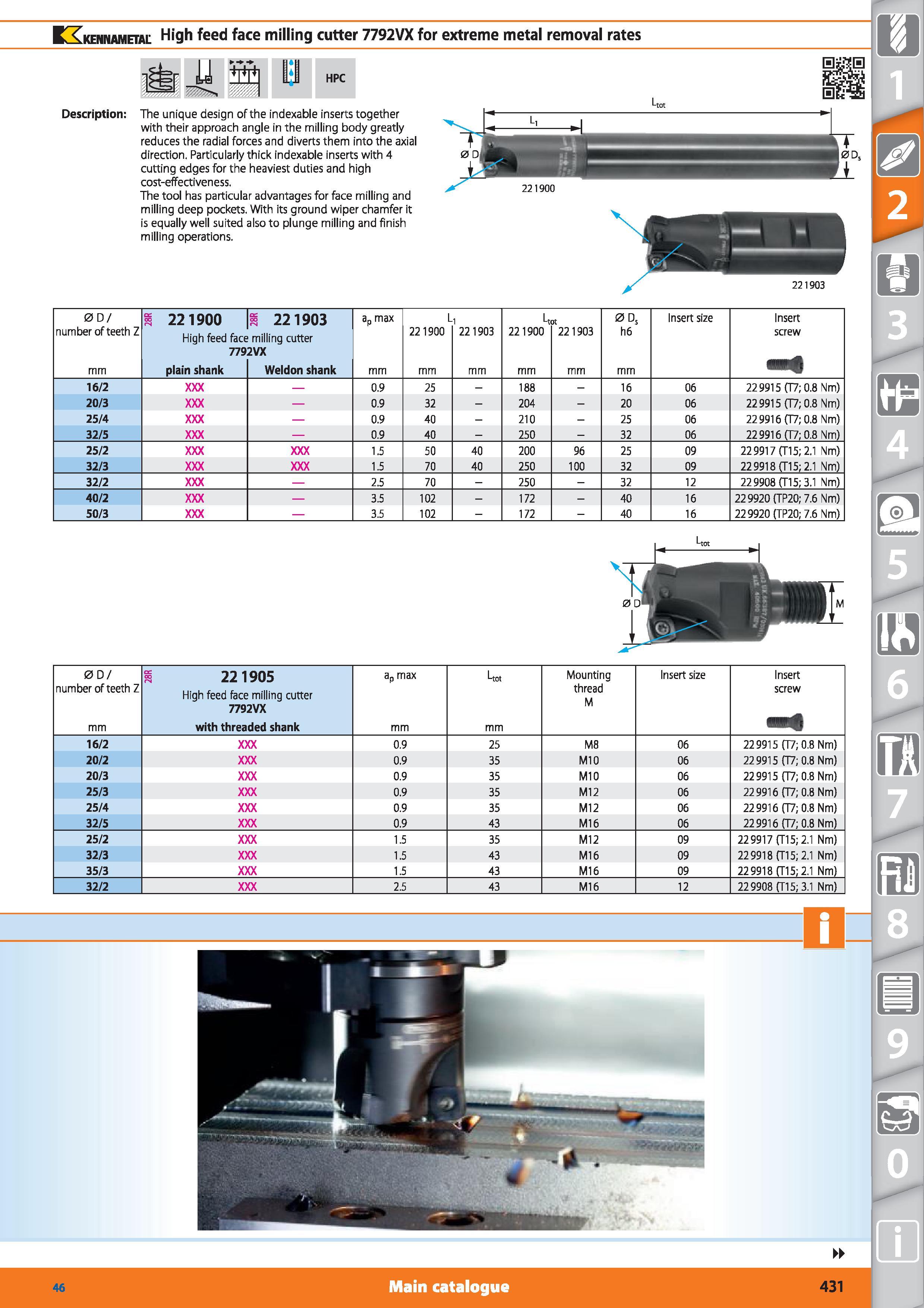

kennametal High feed face milling cutter 7792VX for extreme metal removal rates Description Sr TV HPC .12 The unique design of the indexable inserts together with their approach angle in the milling body greatly reduces the radial forces and diverts them into the axial direction. Particularly thick indexable inserts with 4 cutting edges for the heaviest duties and high cost-effectiveness. The tool has particular advantages for face milling and milling deep pockets. With its ground wiper chamfer it is equally well suited also to plunge milling and finish milling operations. 221903 0 D/ number of teeth Z mm 221900 High feed face 779 plain shank 221903 milling cutter 2VX Weldon shank ap max mm L 221900 mm 221903 mm L-t 221900 mm 3t 221903 mm 0 Ds h6 mm Insert size Insert screw 16/2 0.9 25 - 188 - 16 06 229915 07; 0.8 Nm) 20/3 0.9 32 - 204 - 20 06 229915 CT7; 0.8 Nm) 25/4 0.9 40 210 25 06 229916CT7;0.8 Nm) 32/5 0.9 40 - 250 - 32 06 229916 CT7; 0.8 Nm) 25/2 1.5 50 40 200 96 25 09 229917 (Tl5; 2.1 Nm) 32/3 1.5 70 40 250 100 32 09 229918 (T15; 2.1 Nm) 32/2 2.5 70 - 250 - 32 12 229908 015; 3.1 Nm) 40/2 3.5 102 - 172 - 40 16 229920 OP20; 7.6 Nm) 50/3 3.5 102 - 172 - 40 16 229920 (TP20; 7.6 Nm) 0 D/ number of teeth Z mm 221905 High feed face milling cutter 7792VX with threaded shank ap max mm Uot mm Mounting thread M Insert size Insert screw 16/2 0.9 25 M8 06 229915 07; 0.8 Nm) 20/2 0.9 35 M10 06 229915 07; 0.8 Nm) 20/3 0.9 35 M10 06 229915 07; 0.8 Nm) 25/3 0.9 35 M12 06 229916 07; 0.8 Nm) 25/4 0.9 35 M12 06 229916 07; 0.8 Nm) 32/5 0.9 43 M16 06 229916 07; 0.8 Nm) 25/2 1.5 35 M12 09 229917 015; 2.1 Nm) 32/3 1.5 43 M16 09 229918 015:2.1 Nm) 35/3 1.5 43 M16 09 229918 015; 2.1 Nm) 32/2 2.5 43 M16 12 229908 015; 3.1 Nm) m wstwiBBav- Main catalogue 431
