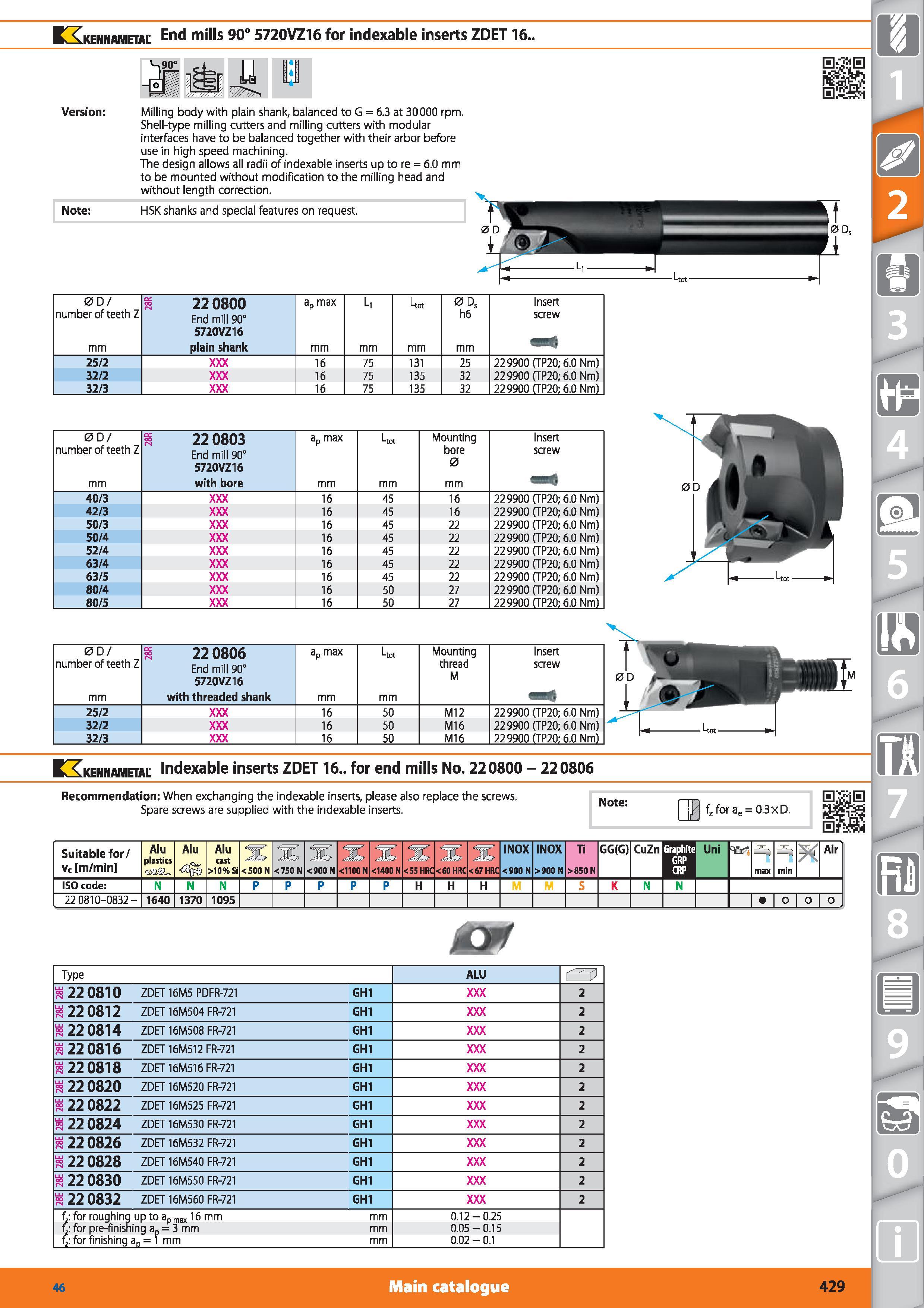

KENNAMETAL End mills 90° 5720VZ16 for indexable inserts ZDET 16 Note Version Milling body with plain shank, balanced to G 6.3 at 30000 rpm Shell-type milling cutters and milling cutters with modular interfaces have to be balanced together with their arbor before use in high speed machining. The design allows all radii of indexable inserts up to re 6.0 mm to be mounted without modification to the milling head and without length correction. HSK shanks and special features on request. 0 D/ number of teeth Z mm 220800 End mill 90° 5720VZ16 plain shank ap max mm L, mm L-tOt mm 0 Ds h6 mm Insert screw 25/2 16 75 131 25 22 9900 (TP20; 6.0 Nm) 32/2 16 75 135 32 22 9900 (TP20; 6.0 Nm) 32/3 16 75 135 32 22 9900 (TP20:6.0 Nm) Kf 05 0 0, 0 D/ number of teeth Z mm 220803 End mill 90° 5720VZ16 with bore ap max mm Uot mm Mounting bore 0 mm Insert screw 40/3 16 45 16 22 9900 (TP20; 6.0 Nm) 42/3 16 45 16 22 9900 (TP20; 6.0 Nm) 50/3 16 45 22 22 9900 (TP20; 6.0 Nm) 50/4 16 45 22 22 9900 (TP20; 6.0 Nm) 52/4 16 45 22 22 9900 (TP20; 6.0 Nm) 63/4 16 45 22 22 9900 (TP20; 6.0 Nm) 63/5 16 45 22 22 9900 (TP20; 6.0 Nm) 80/4 16 50 27 22 9900 (TP20; 6.0 Nm) 80/5 16 50 27 22 9900 (TP20:6.0 Nm) KSkehnametal Indexable inserts ZDET 16 for end mills No. 220800 - 220806 0D / number of teeth Z mm 220806 End mill 90° 5720VZ16 with threaded shank ap max mm Uot mm Mounting thread M Insert screw 25/2 16 50 M12 22 9900 (TP20; 6.0 Nm) 32/2 16 50 M16 22 9900 (TP20; 6.0 Nm) 32/3 16 50 M16 22 9900 (TP20:6.0 Nm) Recommendation When exchanging the indexable inserts, please also replace the screws. Spare screws are supplied with the indexable inserts. Note fzfor ae 0.3 xD. Ill l-l Suitable for/ vc m/min Alu plastics Alu < Alu cast >10% Si <500 N <750 N <900 N <1100 N 1 <1400N 2 INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn i Uni max min Air ISO code N P H K N 1 1 22 0810-0832- 1640 1370 1095 L2J Type ALU "22 0810 ZDET 16M5 PDFR-721 GH1 2 22 0812 ZDET 16M504 FR-721 GH1 2 >220814 ZDET 16M508 FR-721 GH1 2 3 220816 ZDET 16M512 FR-721 GH1 2 22 0818 ZDET 16M516 FR-721 GH1 2 220820 ZDET 16M520 FR-721 GH1 2 22 0822 ZDET 16M525 FR-721 GH1 2 "22 0824 ZDET 16M530 FR-721 GH1 2 "220826 ZDET 16M532 FR-721 GH1 2 "22 0828 ZDET 16M540 FR-721 GH1 2 "22 0830 ZDET 16M550 FR-721 GH1 2 "220832 ZDET 16M560 FR-721 GH1 2 for roughing up to ap max 16 mm 0.12-0.25 for pre-finishing a„ 3 mm 0.05-0.15 for finishing an 1 mm 0.02 - 0.1 m Main catalogue Hoffmann Group 46 429
