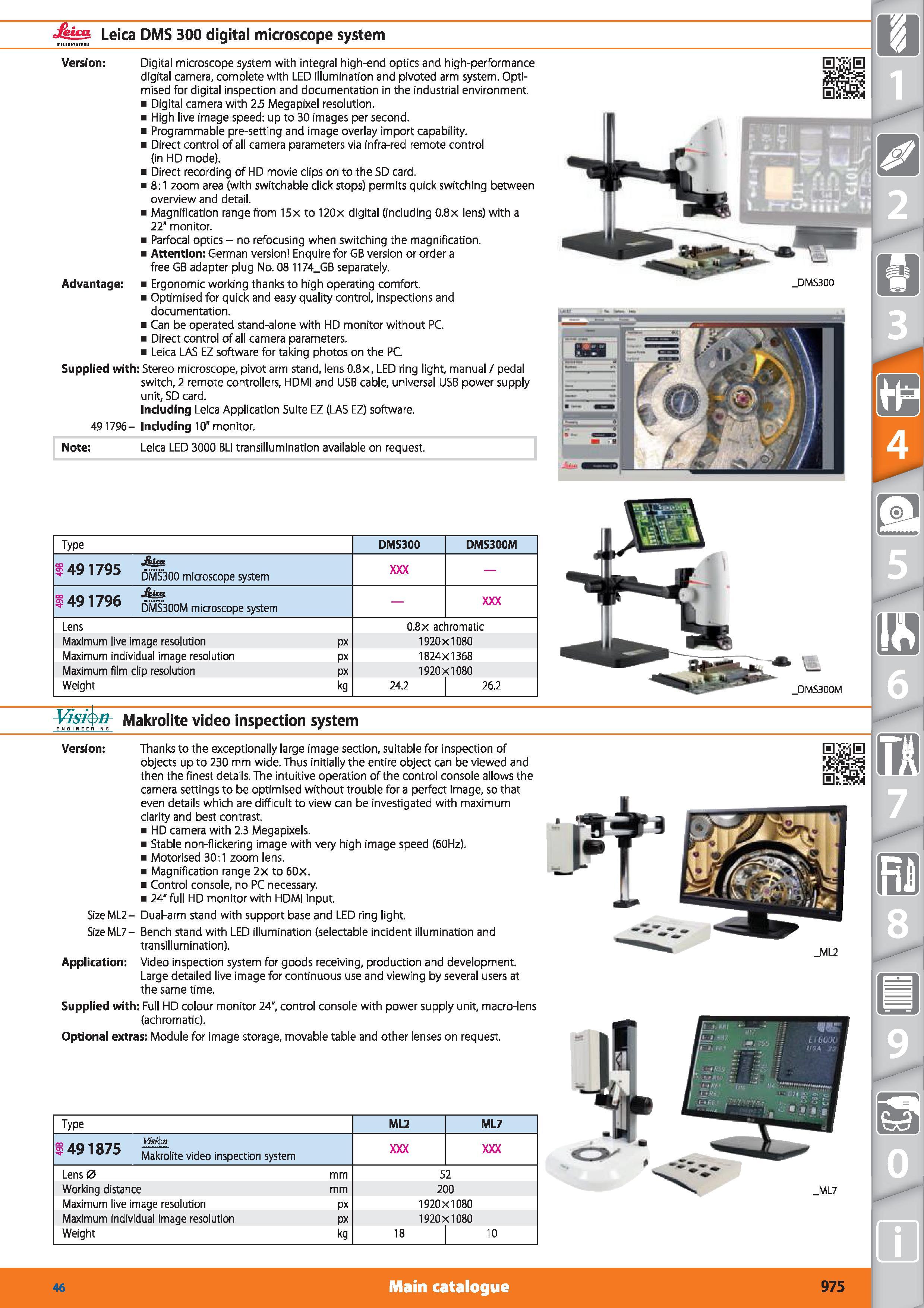

Leica DMS 300 digital microscope system Version Digital microscope system with integral high-end optics and high-performance digital camera, complete with LED illumination and pivoted arm system. Optimised for digital inspection and documentation in the industrial environment. Digital camera with 2.5 Megapixel resolution. High live image speed up to 30 images per second. Programmable pre-setting and image overlay import capability. Direct control of all camera parameters via infra-red remote control (in HD mode). Direct recording of HD movie clips on to the SD card. 8:1 zoom area (with switchable click stops) permits quick switching between overview and detail. Magnification range from 15x to 120x digital (including 0.8x lens) with a 22" monitor. Parfocal optics - no refocusing when switching the magnification. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB separately. Advantage Ergonomic working thanks to high operating comfort. Optimised for quick and easy quality control, inspections and documentation. Can be operated stand-alone with HD monitor without PC. Direct control of all camera parameters. Leica LAS EZ software for taking photos on the PC. Supplied with Stereo microscope, pivot arm stand, lens 0.8x, LED ring light, manual / pedal switch, 2 remote controllers, HDMI and USB cable, universal USB power supply unit, SD card. Including Leica Application Suite EZ (LAS EZ) software. 49 1796- Including 10” monitor. Note Leica LED 3000 BLI transillumination available on request. Type DMS300 DMS300M f 491795 jftita DMS300 microscope system 1491796 jfetol DMS300M microscope system Lens 0.8x achromatic Maximum live image resolution px 1920x1080 Maximum individual image resolution px 1824x1368 Maximum film clip resolution px 1920x1080 Weight kg 24.2 26.2 Viskm Makrolite video inspection system Version Thanks to the exceptionally large image section, suitable for inspection of objects up to 230 mm wide. Thus initially the entire object can be viewed and then the finest details. The intuitive operation of the control console allows the camera settings to be optimised without trouble for a perfect image, so that even details which are difficult to view can be investigated with maximum clarity and best contrast. HD camera with 2.3 Megapixels. Stable non-flickering image with very high image speed (60Hz). Motorised 30:1 zoom lens. Magnification range 2x to 60x. Control console, no PC necessary. 24'full HD monitor with HDMI input. SizeML2- Dual-arm stand with support base and LED ring light. SizeML7- Bench stand with LED illumination (selectable incident illumination and transillumination). Application Video inspection system for goods receiving, production and development. Large detailed live image for continuous use and viewing by several users at the same time. Supplied with Full HD colour monitor 24”, control console with power supply unit, macro-lens (achromatic). Optional extras Module for image storage, movable table and other lenses on request. Type ML2 ML7 491875 :5 a Makrolite video inspection system Lens 0 mm 52 Working distance mm 200 Maximum live image resolution px 1920X1080 Maximum individual image resolution px 1920x1080 Weight kg 18 10 Main catalogue Hoffmann Group 46 975 DMS300M _DMS300
