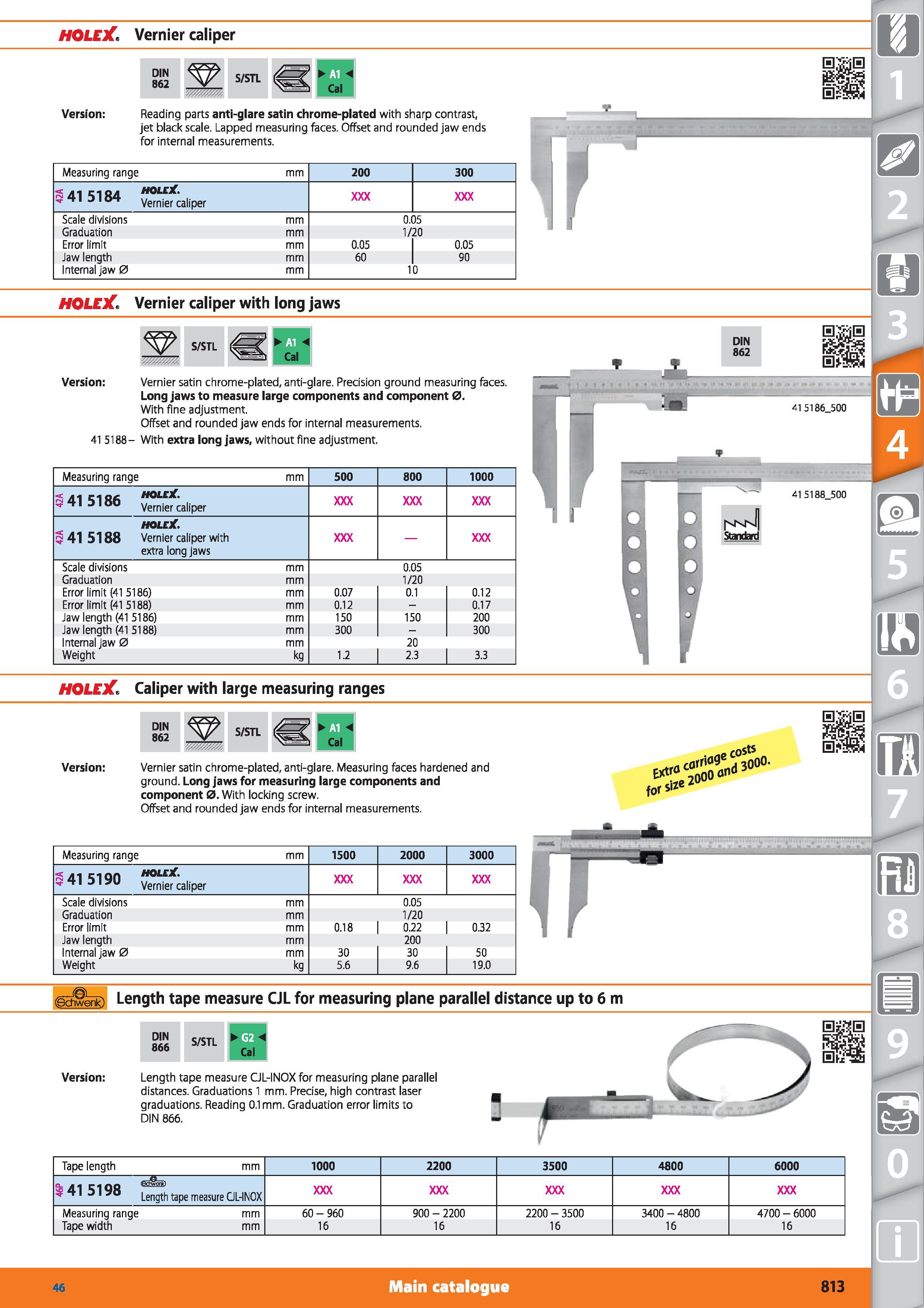

HOLEX Vernier caliper DIN 862 S/STL Version Reading parts anti-glare satin chrome-plated with sharp contrast, jet black scale. Lapped measuring faces. Offset and rounded jaw ends for internal measurements. Measuring range mm 200 300 415184 SSfolp, Scale divisions mm 0.05 Graduation mm 1/20 Error limit mm 0.05 0.05 Jaw length mm 60 90 Internal jaw 0 mm 1 0 HOLEX Vernier caliper with long jaws S/STL Cal Version Vernier satin chrome-plated, anti-glare. Precision ground measuring faces. Long jaws to measure large components and component 0. With fine adjustment. Offset and rounded jaw ends for internal measurements. 41 5188- With extra long jaws, without fine adjustment. Measuring range mm 500 800 1000 341 5186 holbC. Vernier caliper 341 5188 HOLEX Vernier caliper with extra long jaws Scale divisions mm 0.05 Graduation mm 1/20 Error limit (41 5186) mm 0.07 0.1 0.12 Error limit (41 5188) mm 0.12 - 0.17 Jaw length (41 5186) mm 150 150 200 Jaw length (41 5188) mm 300 - 300 Internal jaw 0 mm 20 Weight kg 1.2 2.3 3.3 HOLEX Caliper with large measuring ranges DIN 862 S/STL Cal Version Vernier satin chrome-plated, anti-glare. Measuring faces hardened and ground. Long jaws for measuring large components and component 0. With locking screw. Offset and rounded jaw ends for internal measurements. Measuring range mm 1500 2000 3000 S 4.1 51 on holcX. , 4I5ISU vernier caliper Scale divisions mm 0.05 Graduation mm 1/20 Error limit mm 0.18 0.22 0.32 Jaw length mm 200 Internal jaw 0 mm 30 30 50 Weight kg 5.6 9.6 19.0 Length tape measure CJL for measuring plane parallel distance up to 6 m DIN 866 S/STL < Cal Version Length tape measure GL-INOXfor measuring plane parallel distances. Graduations 1 mm. Precise, high contrast laser graduations. Reading 0.1 mm. Graduation error limits to DIN 866. Tape length mm 1000 2200 3500 4800 6000 41 5198 3 131 0 Length tape measure Measuring range mm 60 - 960 900 - 2200 2200 - 3500 3400 - 4800 4700 - 6000 Tape width mm 16 16 16 16 16 Main catalogue Hoffmann Group 46 813
