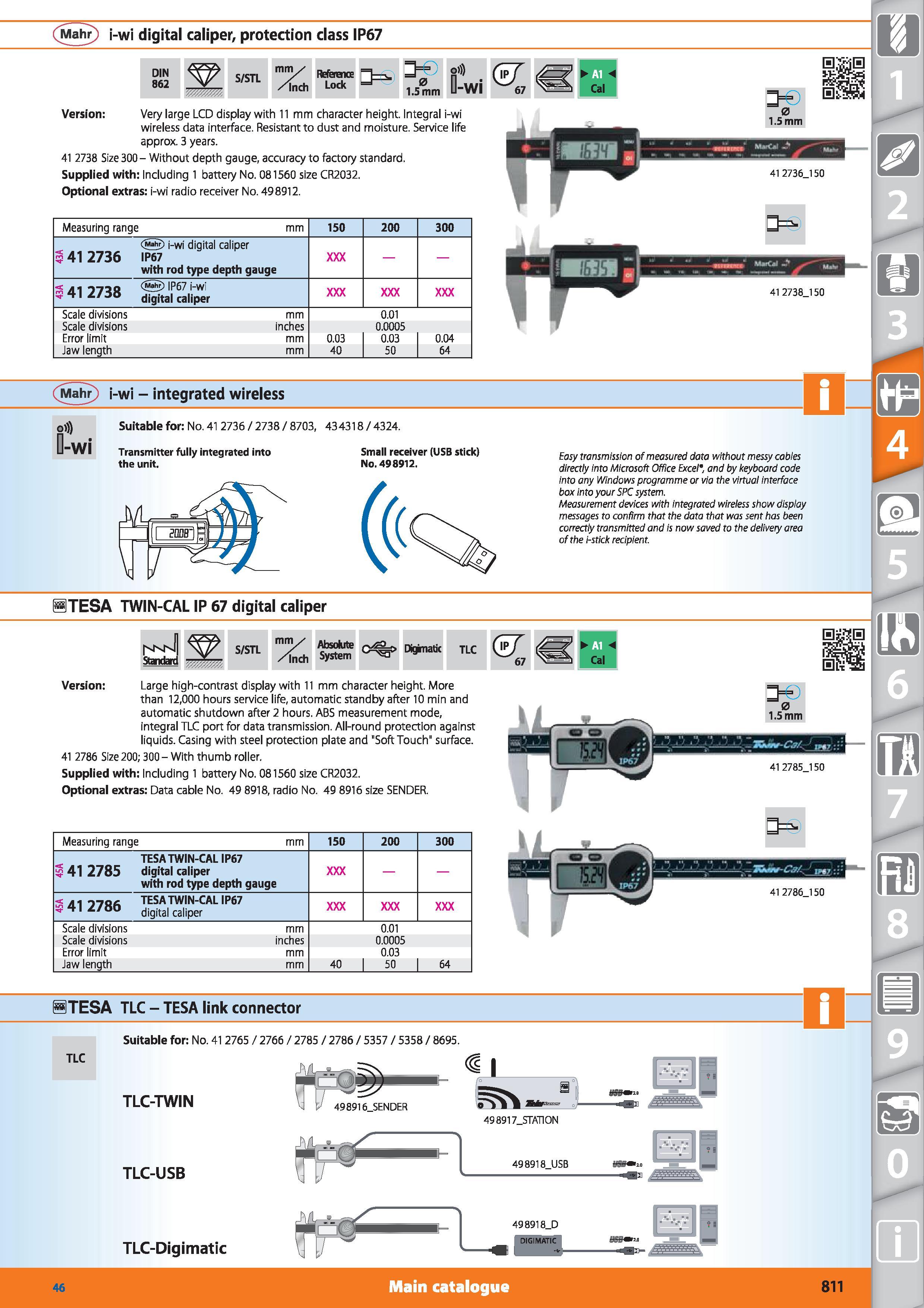

811 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.811

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 811 0811 ENG Lab2u

Mahr i-wi digital caliper, protection class IP67 DIN 862 S/STL mm/ /Inch Reference Lock > 0 1.5 mm Version Very large LCD display with 11mm character height. Integral i-wi wireless data interface. Resistant to dust and moisture. Service life approx. 3 years. 41 2738 Size 300-Without depth gauge, accuracy to factory standard. Supplied with Including 1 battery No. 081560 size CR2032. Optional extras i-wi radio receiver No. 498912. Measuring range mm 150 200 300 3 41 2736 i-wi digital caliper IP67 with rod type depth gauge 3 41 2738 IP67 i-wi digital caliper Scale divisions mm 0.01 Scale divisions inches 0.0005 Error limit mm 0.03 0.03 0.04 Jaw length mm 40 50 64 Mahr i-wi - integrated wireless Suitable for No. 41 2736 / 2738 / 8703, 43 4318 / 4324. WI Transmitter fully integrated into the unit. Small receiver (USB stick) No. 498912. Easy transmission of measured data without messy cables directly into Microsoft Office Excel and by keyboard code into any Windows programme or via the virtual interface box into your SPC system. Measurement devices with integrated wireless show display messages to confirm that the data that was sent has been correctly transmitted and is now saved to the delivery area of the i-stick recipient. BTESA TWIN-CAL IP 67 digital caliper Standard S/STL mm/ /inch Absolute System Diginatk TLC Version Large high-contrast display with 11 mm character height. More than 12,000 hours service life, automatic standby after 10 min and automatic shutdown after 2 hours. ABS measurement mode, integral TLC port for data transmission. All-round protection against liquids. Casing with steel protection plate and "Soft Touch" surface. 41 2786 Size 200; 300 - With thumb roller. Supplied with Including 1 battery No. 081560 size CR2032. Optional extras Data cable No. 49 8918, radio No. 49 8916 size SENDER. 41 2785 J 50 Measuring range mm 150 200 300 3 41 2785 TESA TWIN-CAL IP67 digital caliper with rod type depth gauge 3 41 2786 TESA TWIN-CAL IP67 digital caliper Scale divisions mm 0.01 Scale divisions inches 0.0005 Error limit mm 0.03 Jaw length mm 40 50 64 q 412786 150 Jj STESA TLC - TESA link connector TLC Suitable for No. 41 2765 / 2766 / 2785 / 2786 / 5357 / 5358 / 8695. TLC-TWIN TLC-USB TLC-Digimatic 811 Main catalogue
