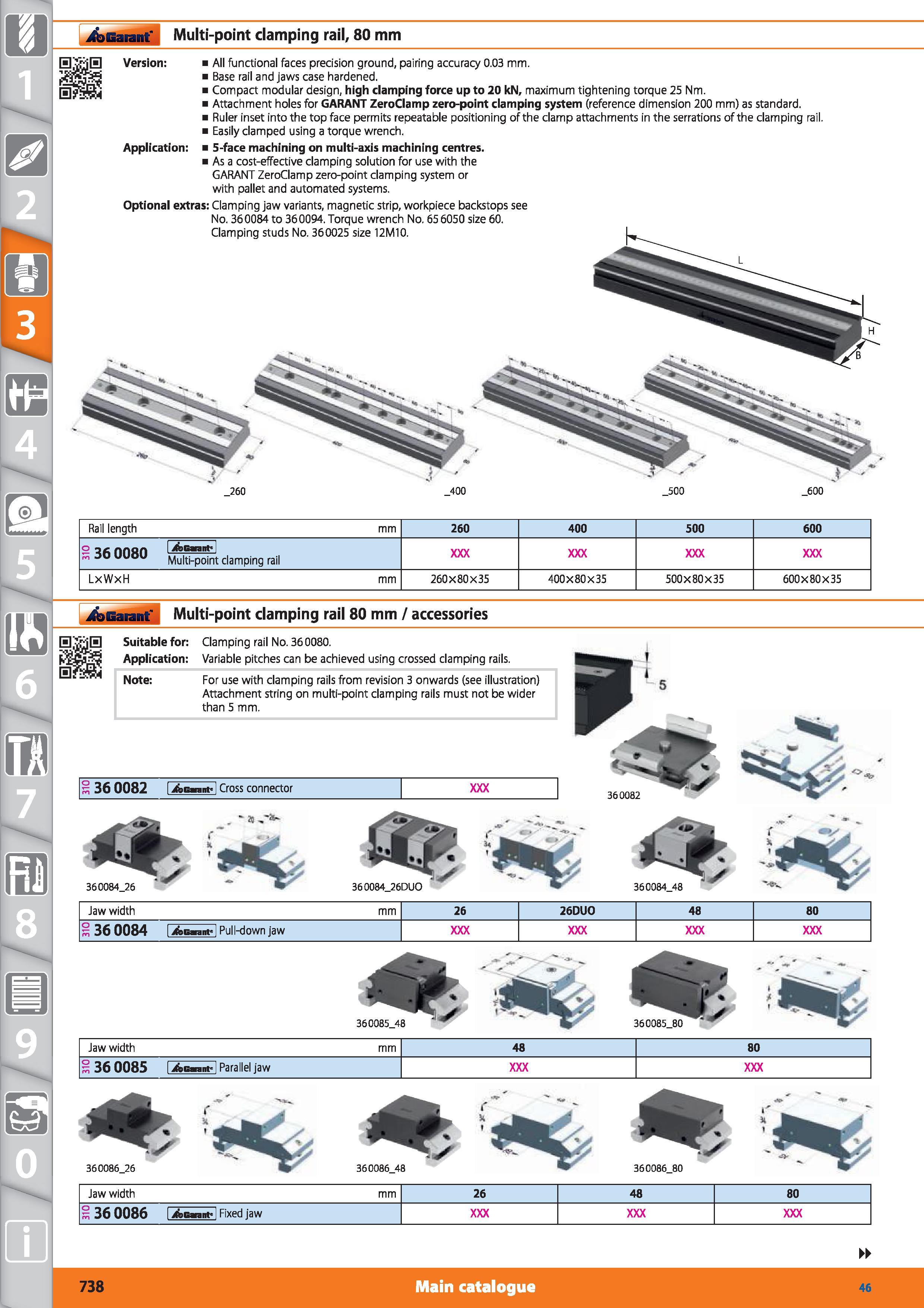

s 36 0082 jfecwnf Cross connector i&Garantf Multi-point clamping rail 80 mm / accessories a a Suitable for Clamping rail No. 360080. Application Variable pitches can be achieved using crossed clamping rails. Note For use with clamping rails from revision 3 onwards (see illustration) Attachment string on multi-point clamping rails must not be wider than 5 mm. 360080 I jfednnt Multi-point clamping rail LxWxH 260x80x35 400X80X35 500X80X35 600X 80 X 35 Garant Multi-point clamping rail, 80 mm Rail length Version All functional faces precision ground, pairing accuracy 0.03 mm. Base rail and jaws case hardened. Compact modular design, high clamping force up to 20 kN, maximum tightening torque 25 Nm. Attachment holes for GARANT ZeroClamp zero-point clamping system (reference dimension 200 mm) as standard. Ruler inset into the top face permits repeatable positioning of the clamp attachments in the serrations of the clamping rail. Easily clamped using a torque wrench. Application 5-face machining on multi-axis machining centres. As a cost-effective clamping solution for use with the GARANT ZeroClamp zero-point clamping system or with pallet and automated systems. Optional extras Clamping jaw variants, magnetic strip, workpiece backstops see No. 360084 to 360094. Torque wrench No. 65 6050 size 60. Clamping studs No. 360025 size 12M10. 360084_48 36Q084_26DUO 360084_26 - a Jaw width mm 26 26DU0 48 80 s 36 0084 j&Gnnt-1 Pul l-down jaw 360085_48 360085_80 Jaw width mm 48 80 s 36 0085 jCbGmnt' Parallel jaw 360086_26 360086_48 360086_80 Jaw width mm 26 48 80 36 0086 1 jfeGnnt-1 Fixed iaw 738 Main catalogue Hoffmann Group 46
