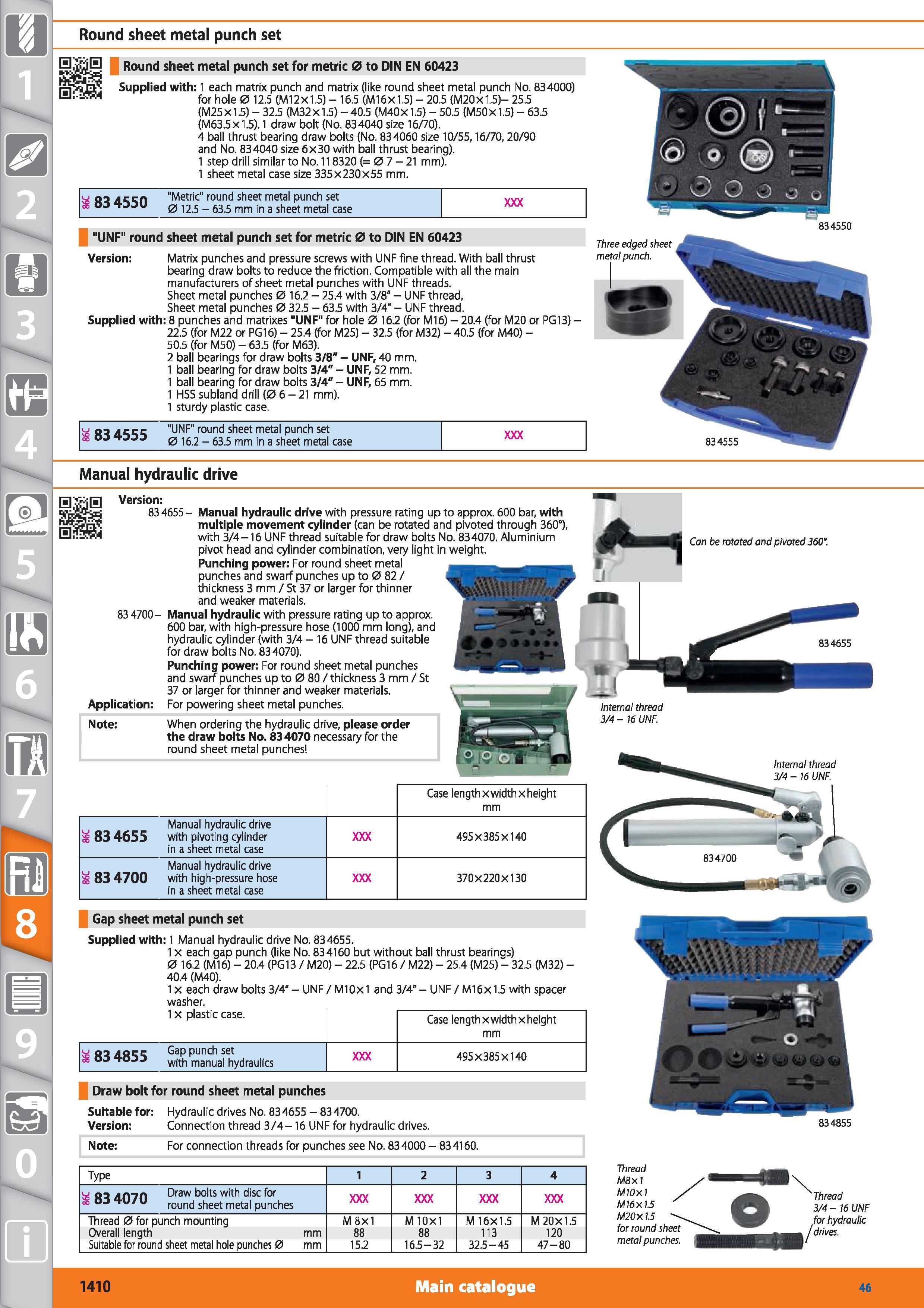

(3f"z & o - 1 o 1 Round sheet metal punch set Round sheet metal punch set for metric 0 to DIN EN 60423 Supplied with 1 each matrix punch and matrix (like round sheet metal punch No. 834000) for hole 0 12.5 (M12X1.5) - 16.5 (M16X 1.5) - 20.5 (M20X1.5)- 25.5 (M25x 1.5) - 32.5 (M32x 1.5)-40.5 (M40x 1.5) - 50.5 (M50x 1.5) - 63.5 (M63.5X1.5). 1 draw bolt (No. 834040 size 16/70). 4 ball thrust bearing draw bolts (No. 834060 size 10/55,16/70,20/90 and No. 834040 size 6x30 with ball thrust bearing). 1 step drill similar to No. 118320 (=07 - 21 mm). 1 sheet metal case size 335x230x55 mm. 834550 "Metric" round sheet metal punch set 0 12.5 - 63.5 mm in a sheet metal case "UNF" round sheet metal punch set for metric 0 to DIN EN 60423 Version Matrix punches and pressure screws with UNF fine thread. With ball thrust bearing draw bolts to reduce the friction. Compatible with all the main manufacturers of sheet metal punches with UNF threads. Sheet metal punches 0 16.2 - 25.4 with 3/8" - UNF thread, Sheet metal punches 0 32.5 - 63.5 with 3/4” - UNF thread. Supplied with 8 punches and matrixes "UNF" for hole 0 16.2 (for M16) - 20.4 (for M20 or PG13) - 22.5 (for M22 or PG16) - 25.4 (for M25) - 32.5 (for M32) - 40.5 (for M40) - 50.5 (for M50) - 63.5 (for M63). 2 ball bearings for draw bolts 3/8" - UNF, 40 mm. 1 ball bearing for draw bolts 3/4" - UNF, 52 mm. 1 ball bearing for draw bolts 3/4" - UNF, 65 mm. 1 HSS subland drill (0 6 - 21 mm). 1 sturdy plastic case. ; nn iccc "UNF" round sheet metal punch set 1 0 16.2 - 63.5 mm in a sheet metal case Manual hydraulic drive Version 83 4655 - Manual hydraulic drive with pressure rating up to approx. 600 bar, with multiple movement cylinder (can be rotated and pivoted through 360°), with 3/4-16 UNF thread suitable for draw bolts No. 834070. Aluminium pivot head and cylinder combination, very light in weight. Punching power For round sheet metal punches and swarf punches up to 0 82/ thickness 3 mm / St 37 or larger for thinner and weaker materials. 83 4700- Manual hydraulic with pressure rating up to approx. 600 bar, with high-pressure hose (1000 mm long), and hydraulic cylinder (with 3/4 - 16 UNF thread suitable for draw bolts No. 834070). Punching power For round sheet metal punches and swarf punches up to 0 80 / thickness 3 mm / St 37 or larger for thinner and weaker materials. Application For powering sheet metal punches. Can be rotated and pivoted 360°. Note When ordering the hydraulic drive, please order the draw bolts No. 834070 necessary for the round sheet metal punches Case lengthxwidthxheight mm Manual hydraulic drive ig 83 4655 with pivoting cylinder in a sheet metal case 495X385X140 Manual hydraulic drive ig 83 4700 with high-pressure hose in a sheet metal case 370X220X130 Gap sheet metal punch set Supplied with 1 Manual hydraulic drive No. 834655. 1 x each gap punch (like No. 834160 but without ball thrust bearings) 0 16.2 (Ml6) - 20.4 (PG13 / M20) - 22.5 (PG16 / M22) - 25.4 (M25) - 32.5 (M32) -40.4 (M40). 1 x each draw bolts 3/4” - UNF / M10X1 and 3/4” - UNF / M16x 1.5 with spacer washer. 1 x plastic case. Case lengthxwidthxheight mm s 5 5 Gap punch set a 03 W33 with manua hydraulics 495X385X140 Draw bolt for round sheet metal punches Suitable for Hydraulic drives No. 834655 - 834700. Version Connection thread 3/4-16 UNF for hydraulic drives. Note For connection threads for punches see No. 834000 - 834160. Type 1 2 3 4 ijj oi An 7(\ Draw bolts with disc for co 03 4U/U round sheet metal punches Thread 0 for punch mounting M 8x1 M 10x1 M 16x1.5 M 20x1.5 Overall length mm 88 88 113 120 Suitable for round sheet metal hole punches 0 mm 15.2 16.5-32 32.5-45 47-80 834855 Thread 3/4 - 16 UNF for hydraulic drives. 1410 Main catalogue Hoffmann Group 46
