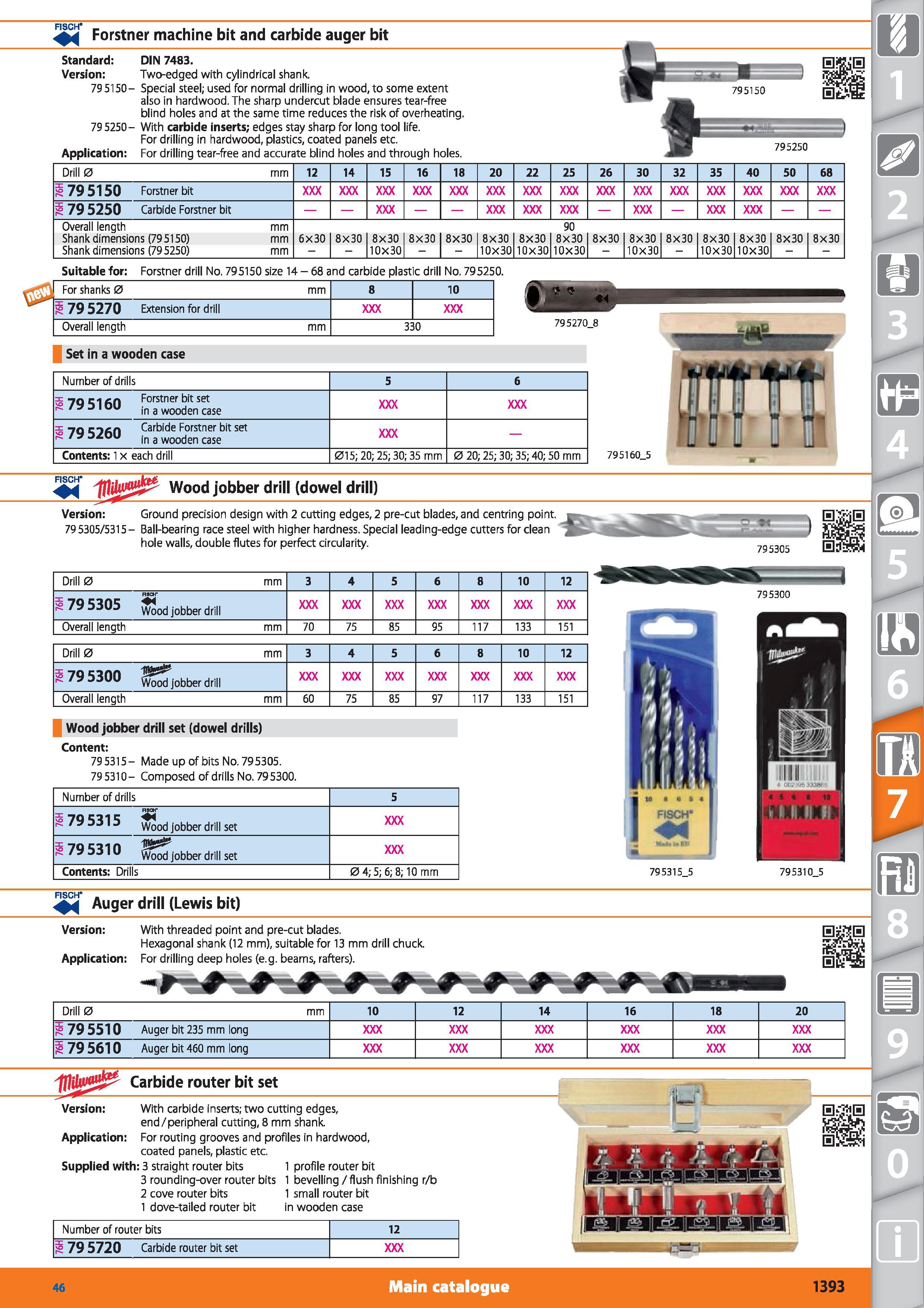

FISCH- Forstner machine bit and carbide auger bit Standard DIN 7483. Version Two-edged with cylindrical shank. 79 5150- Special steel; used for normal drilling in wood, to some extent also in hardwood. The sharp undercut blade ensures tear-free blind holes and at the same time reduces the risk of overheating. 79 5250- With carbide inserts; edges stay sharp for long tool life. For drilling in hardwood, plastics, coated panels etc. Application For drilling tear-free and accurate blind holes and through holes. 795250 Drill 0 mm 12 14 15 16 18 20 22 25 26 30 32 35 40 50 68 1 79 5150 Forstner bit 1 79 5250 Carbide Forstner bit Overall length mm 90 Shank dimensions (795150) mm 6X30 8X30 8X30 8X30 8X30 8X30 8X30 8X30 8X30 8X30 8X30 8X30 8X30 8X30 8X30 Shank dimensions (795250) mm 10X30 O ro X ro X ro X o - 10X30 - o ro X ro X o Suitable for Forstner drill No. 795150 size 14 - 68 and carbide plastic drill No. 795250. For shanks 0 mm 8 10 1 79 5270 Extension for drill Overall length mm 330 Set in a wooden case Number of drills 5 6 S "70 c 1 Forstner bit set 795160 inaw00dencase - o ciert Carbide Forstner bit set S 79 5260 m a wooden case Contents 1 x each drill 015; 20; 25; 30; 35 mm 0 20; 25; 30; 35; 40; 50 mm 795160_5 FISCH- Wood jobber drill (dowel drill) Version Ground precision design with 2 cutting edges, 2 pre-cut blades, and centring point. 795305/5315- Ball-bearing race steel with higher hardness. Special leading-edge cutters for clean hole walls, double flutes for perfect circularity. Drill 0 mm 3 4 5 6 8 10 12 1795305 FISCH Wood jobber drill Overall length mm 70 75 85 95 117 133 151 795300 Drill 0 mm 3 4 5 6 8 10 12 1795300 Wood jobber drill Overall length mm 60 75 85 97 117 133 151 Wood jobber drill set (dowel drills) Content 795315- Made up of bits No. 795305. 79 5310- Composed of drills No. 795300. Number of drills 5 S 79 5315 Wood jobber drill set 3 79 5310 33 1U WoQd Jobbe driN se( Contents Drills 0 4; 5; 6; 8; 10 mm IP 795315 5 Auger drill (Lewis bit) Version With threaded point and pre-cut blades. Hexagonal shank (12 mm), suitable for 13 mm drill chuck. Application For drilling deep holes (e.g. beams, rafters). Drill 0 mm 10 12 14 16 18 20 1795510 Auger bit 235 mm long 1795610 Auger bit 460 mm long Carbide router bit set Version With carbide inserts; two cutting edges, end/peripheral cutting, 8 mm shank Application For routing grooves and profiles in hardwood, coated panels, plastic etc. Supplied with 3 straight router bits 3 rounding-over router bits 2 cove router bits 1 dove-tailed router bit 1 profile router bit 1 bevelling /flush finishing r/b 1 small router bit in wooden case Number of router bits 12 1 79 5720 Carbide router bit set Main catalogue Hoffmann Group 46 1393
