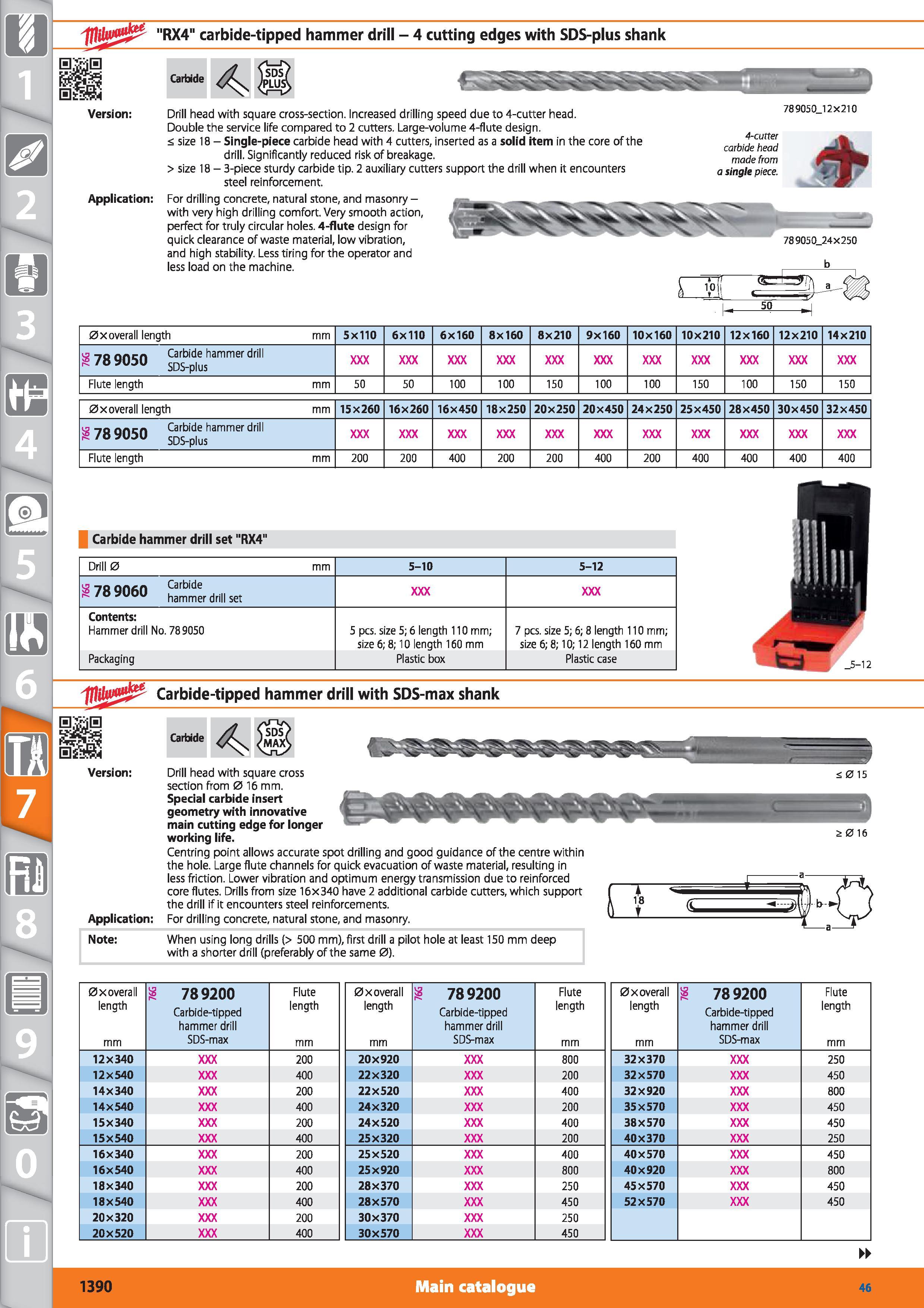

1390 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1390

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1390 1390 ENG Lab2u

"RX4" carbide-tipped hammer drill - 4 cutting edges with SDS-plus shank Carbide Version Application Drill head with square cross-section. Increased drilling speed due to 4-cutter head. Double the service life compared to 2 cutters. Large-volume 4-flute design. <, size 18 - Single-piece carbide head with 4 cutters, inserted as a solid item in the core of the drill. Significantly reduced risk of breakage. > size 18 - 3-piece sturdy carbide tip. 2 auxiliary cutters support the drill when it encounters steel reinforcement. For drilling concrete, natural stone, and masonry -with very high drilling comfort. Very smooth action, perfect for truly circular holes. 4-flute design for quick clearance of waste material, low vibration, and high stability. Less tiring for the operator and less load on the machine. 789050_12x210 4-cutter carbide head made from a single piece. 789050_24x250 b 0xoverall length mm 5x110 6x110 6x160 8x160 8x210 9x160 10x160 10x210 12x160 12x210 14x210 -70 nnm Carbide hammer drill 78 9050 SDS_p us Flute length mm 50 50 100 100 150 100 100 150 100 150 150 0xoverall length mm 15x260 16x260 16x450 18x250 20x250 20x450 24x250 25x450 28x450 30x 450 32x450 ig onncn Carbide hammer drill s 78 9050 SDS_p us Flute length mm 200 200 400 200 200 400 200 400 400 400 400 8 Carbide hammer drill set "RX4" Drill 0 mm 5-10 5-12 78 9060 Carbide hammer drill set Contents Flammer drill No. 789050 5 pcs. size 5; 6 length 110 mm; size 6; 8; 10 length 160 mm 7 pcs. size 5; 6; 8 length 110 mm; size 6; 8; 10; 12 length 160 mm Packaging Plastic box Plastic case fed .5-12 Carbide-tipped hammer drill with SDS-max shank Version Application Drill head with square cross section from 0 16 mm. Special carbide insert geometry with innovative main cutting edge for longer working life. Centring point allows accurate spot drilling and good guidance of the centre within the hole. Large flute channels for quick evacuation of waste material, resulting in less friction. Lower vibration and optimum energy transmission due to reinforced core flutes. Drills from size 16x340 have 2 additional carbide cutters, which support the drill if it encounters steel reinforcements. For drilling concrete, natural stone, and masonry. a 0 16 Note When using long drills (> 500 mm), first drill a pilot hole at least 150 mm deep with a shorter drill (preferably of the same 0). 0 xoverall length mm 789200 Carbide-tipped hammer drill SDS-max Flute length mm 0xoverall length mm 789200 Carbide-tipped hammer drill SDS-max Flute length mm 0xoverall length mm St 789200 Carbide-tipped hammer drill SDS-max Flute length mm 12X340 200 20X920 800 32X370 250 12x540 400 22x320 200 32x570 450 14X340 200 22X520 400 32X920 800 14x540 400 24x320 200 35x570 450 15X340 200 24X520 400 38X570 450 15X540 400 25X320 200 40X370 250 16x340 200 25x520 400 40x570 450 16x540 400 25x920 800 40x920 800 18x340 200 28x370 250 45x570 450 18X540 400 28X570 450 52X570 450 20x320 200 30x370 250 20X 520 400 30X570 450 1390 Main catalogue Hoffmann Group 46
