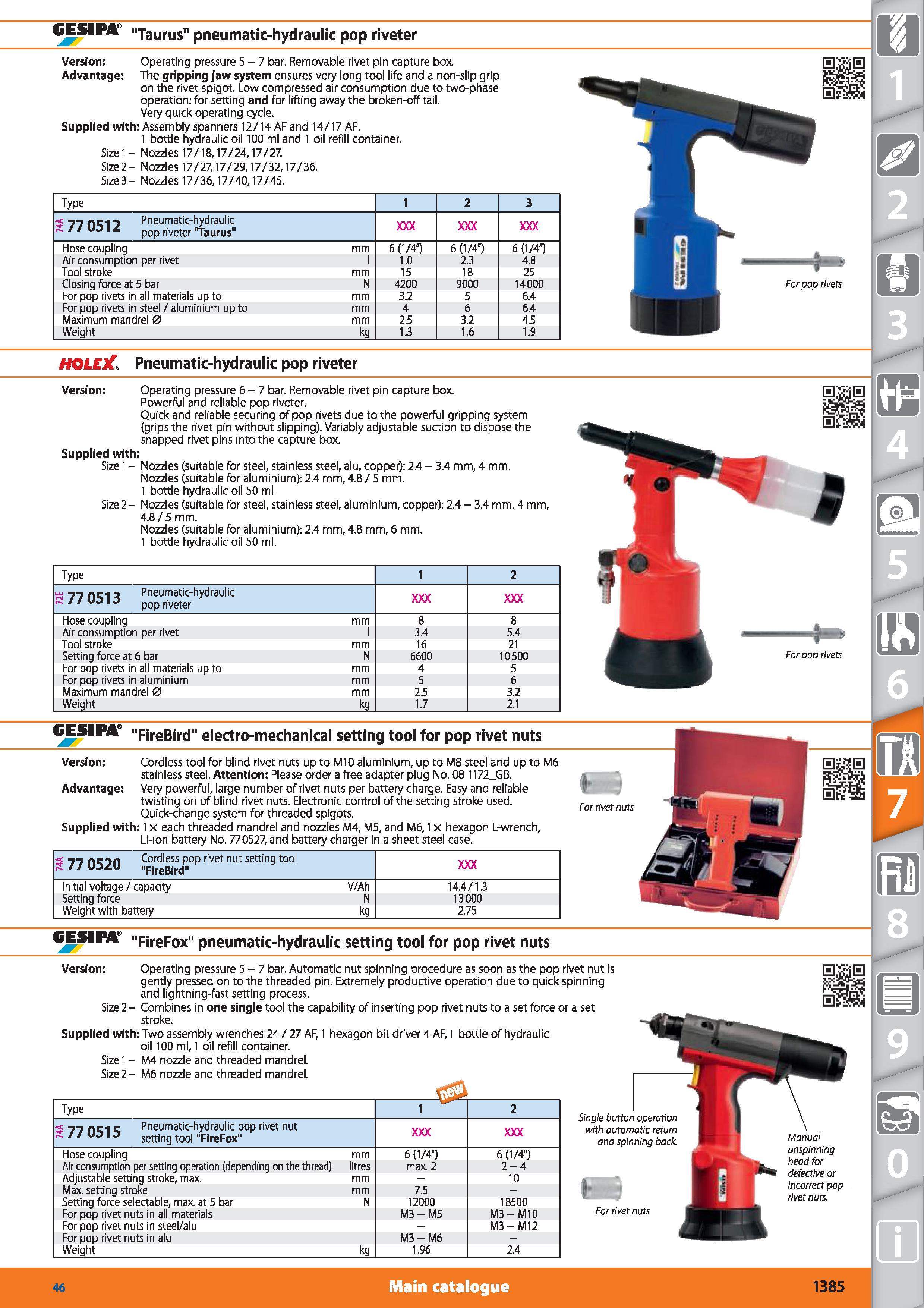

ESIPA1 "Taurus" pneumatic-hydraulic pop riveter Version Operating pressure 5-7 bar. Removable rivet pin capture box. Advantage The gripping jaw system ensures very long tool life and a non-slip grip on the rivet spigot. Low compressed air consumption due to two-phase operation for setting and for lifting away the broken-off tail. Very quick operating cycle. Supplied with Assembly spanners 12/14 AF and 14/17 AF. 1 bottle hydraulic oil 100 ml and 1 oil refill container. Size 1 - Nozzles 17/18,17/24,17/27. Size 2- Nozzles 17/27,17/29,17/32,17/36. Size 3- Nozzles 17/36,17/40,17/45. Type 1 2 3 -j-j aci j Pneumatic-hydraulic / / vd i z pop rivgter '7aurus" Hose coupling mm 6 (1/4") 6 (1/4”) 6 (1/4”) Air consumption per rivet 1 1.0 2.3 4.8 Tool stroke mm 15 18 25 Closing force at 5 bar N 4200 9000 14000 For pop rivets in all materials up to mm 3.2 5 6.4 For pop rivets in steel / aluminium up to mm 4 6 6.4 Maximum mandrel 0 mm 2.5 3.2 4.5 Weight kg 1.3 1.6 1.9 HOLEJt. Pneumatic-hydraulic pop riveter Version Operating pressure 6-7 bar. Removable rivet pin capture box. Powerful and reliable pop riveter. Quick and reliable securing of pop rivets due to the powerful gripping system (grips the rivet pin without slipping). Variably adjustable suction to dispose the snapped rivet pins into the capture box. Supplied with Size 1 - Nozzles (suitable for steel, stainless steel, alu, copper) 2.4 - 3.4 mm, 4 mm. Nozzles (suitable for aluminium) 2.4 mm, 4.8/5 mm. 1 bottle hydraulic oil 50 ml. Size 2- Nozzles (suitable for steel, stainless steel, aluminium, copper) 2.4 - 3.4 mm, 4 mm, 4.8/5 mm. Nozzles (suitable for aluminium) 2.4 mm, 4.8 mm, 6 mm. 1 bottle hydraulic oil 50 ml. Type 1 2 m -j- a Pneumatic-hydraulic r. / / VD 1 3 pop rivgter Hose coupling mm 8 8 Air consumption per rivet 1 3.4 5.4 Tool stroke mm 16 21 Setting force at 6 bar N 6600 10500 For pop rivets in all materials up to mm 4 5 For pop rivets in aluminium mm 5 6 Maximum mandrel 0 mm 2.5 3.2 Weight kg 1.7 2.1 "FireBird" electro-mechanical setting tool for pop rivet nuts Version Cordless tool for blind rivet nuts up to M10 aluminium, up to M8 steel and up to M6 stainless steel. Attention Please order a free adapter plug No. 081172_GB. Advantage Very powerful, large number of rivet nuts per battery charge. Easy and reliable twisting on of blind rivet nuts. Electronic control of the setting stroke used. F Quick-change system for threaded spigots. Supplied with 1 x each threaded mandrel and nozzles M4, M5, and M6,1 x hexagon L-wrench, Li-ion battery No. 770527, and battery charger in a sheet steel case. s n neon Cordless pop rivet nut setting tool //U3 U "FireBird" Initial voltage / capacity V/Ah 14.4/1.3 Setting force N 13000 Weight with battery kg 2.75 "FireFox" pneumatic-hydraulic setting tool for pop rivet nuts Version Operating pressure 5-7 bar. Automatic nut spinning procedure as soon as the pop rivet nut is gently pressed on to the threaded pin. Extremely productive operation due to quick spinning and lightning-fast setting process. Size 2 - Combines in one single tool the capability of inserting pop rivet nuts to a set force or a set stroke. Supplied with Two assembly wrenches 24 / 27 AF, 1 hexagon bit driver 4 AF, 1 bottle of hydraulic oil 100 ml, 1 oil refill container. Size 1 - M4 nozzle and threaded mandrel. Size 2- M6 nozzle and threaded mandrel. Type 1 2 -j- c Pneumatic-hydraulic pop rivet nut setting tool "FireFox" Hose coupling mm 6 (1/4") 6 (1/4") Air consumption per setting operation (depending on the thread) litres max 2 2-4 Adjustable setting stroke, max mm - 10 Max. setting stroke mm 7.5 - Setting force selectable, max. at 5 bar N 12000 18500 For pop rivet nuts in all materials M3-M5 M3-M10 For pop rivet nuts in steel/alu - M3-M12 For pop rivet nuts in alu M3-M6 - Weight kg 1.96 2.4 Single button operation with automatic return and spinning back. For rivet nuts Main catalogue Hoffmann Group 46 1385
