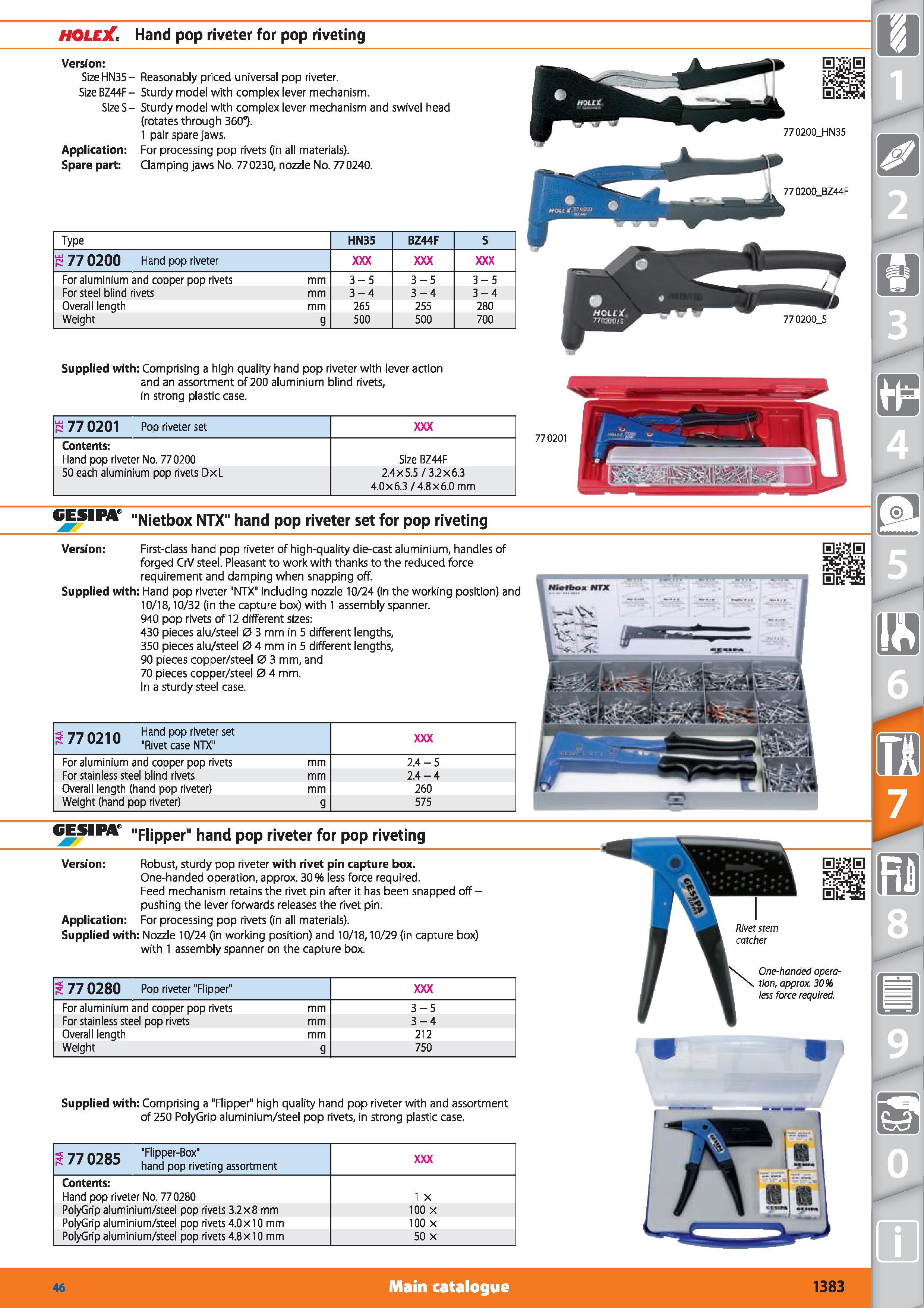

HOLEX Hand pop riveter for pop riveting Version SizeHN35- Reasonably priced universal pop riveter. Size BZ44F- Sturdy model with complex lever mechanism. Size S- Sturdy model with complex lever mechanism and swivel head (rotates through 360°). 1 pair spare jaws. Application For processing pop rivets (in all materials). Spare part Clamping jaws No. 770230, nozzle No. 770240. Type HN35 BZ44F S R 77 0200 Hand pop riveter For aluminium and copper pop rivets mm 3-5 3-5 3-5 For steel blind rivets mm 3-4 3-4 3-4 Overall length mm 265 255 280 Weight g 500 500 700 Supplied with Comprising a high quality hand pop riveter with lever action and an assortment of 200 aluminium blind rivets, in strong plastic case. H 77 0201 Pop riveter set Contents Hand pop riveter No. 77 0200 Size BZ44F 50 each aluminium pop rivets DxL 2.4X5.5/3.2X6.3 4.0X6.3 /4.8X6.0 mm "Nietbox NTX" hand pop riveter set for pop riveting Version First-class hand pop riveter of high-quality die-cast aluminium, handles of forged CrV steel. Pleasant to work with thanks to the reduced force requirement and damping when snapping off. Supplied with Fiand pop riveter "NTX" including nozzle 10/24 (in the working position) and 10/18,10/32 (in the capture box) with 1 assembly spanner. 940 pop rivets of 12 different sizes 430 pieces alu/steel 0 3 mm in 5 different lengths, 350 pieces alu/steel 0 4 mm in 5 different lengths, 90 pieces copper/steel 0 3 mm, and 70 pieces copper/steel 0 4 mm. In a sturdy steel case. Hand pop riveter set S//IWIU "RiVet case NTX" For aluminium and copper pop rivets mm 2.4-5 For stainless steel blind rivets mm 2.4-4 Overall length (hand pop riveter) mm 260 Weight (hand pop riveter) g 575 "Flipper" hand pop riveter for pop riveting Version Robust, sturdy pop riveter with rivet pin capture box. One-handed operation, approx. 30% less force required. Feed mechanism retains the rivet pin after it has been snapped off-pushing the lever forwards releases the rivet pin. Application For processing pop rivets (in all materials). Supplied with Nozzle 10/24 (in working position) and 10/18,10/29 (in capture box) with 1 assembly spanner on the capture box. S 77 0280 Pop riveter "Flipper" For aluminium and copper pop rivets mm 3-5 For stainless steel pop rivets mm 3-4 Overall length mm 212 Weight g 750 Supplied with Comprising a "Flipper" high quality hand pop riveter with and assortment of 250 PolyGrip aluminium/steel pop rivets, in strong plastic case. 3 77 0285 "Flipper-Box" l- han j pop riveting assortment Contents Hand pop riveter No. 77 0280 1 X PolyGrip aluminium/steel pop rivets 3.2x8 mm 100 X PolyGrip aluminium/steel pop rivets 4.0 x 10 mm 100 x PolyGrip aluminium/steel pop rivets 4.8 x 10 mm 50 x 77 0200_S 77 0200_BZ44F 770201 Rivet stem catcher One-handed operation, approx. 30 less force required.
