1304 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1304

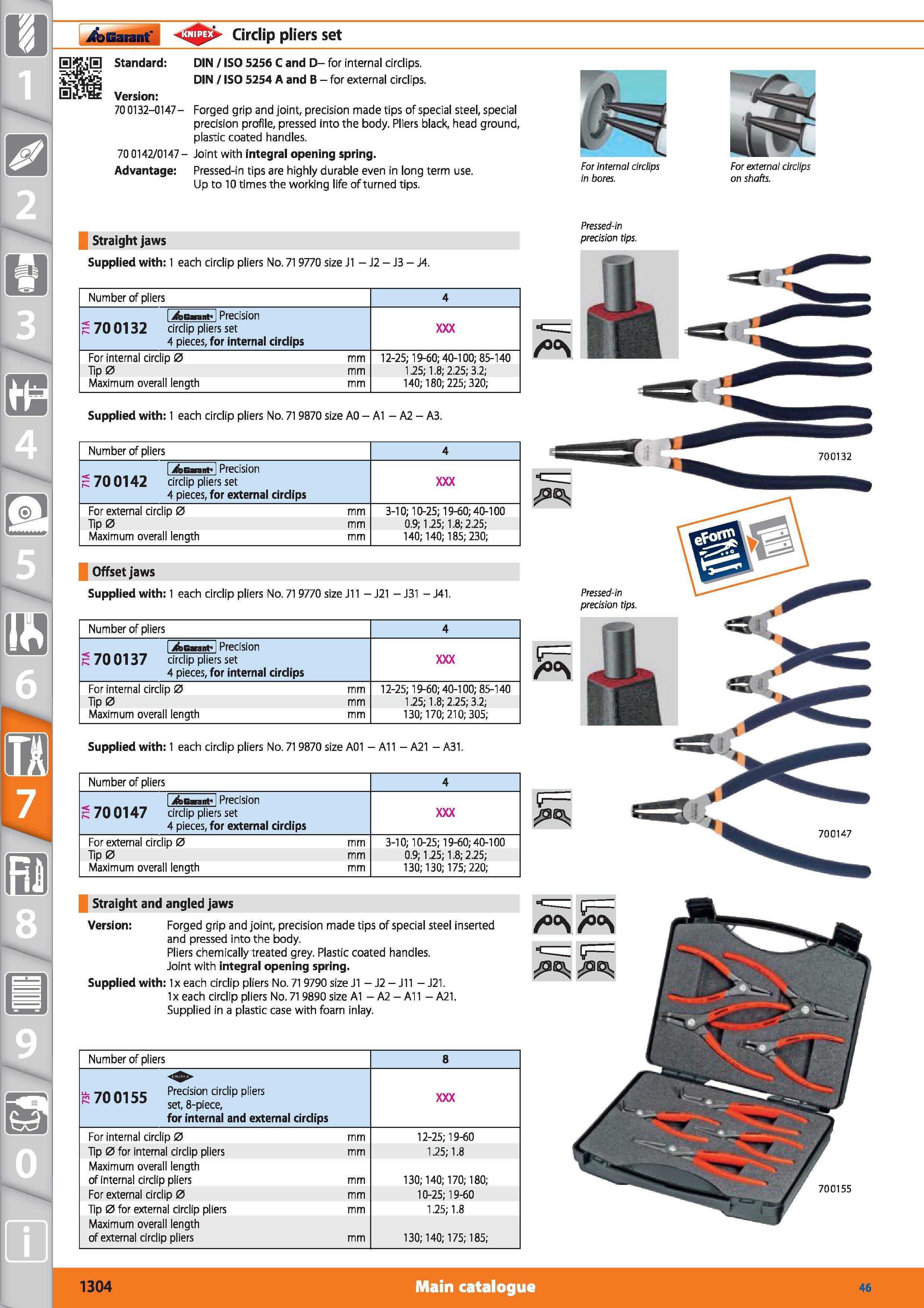

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1304 1304 ENG Lab2u

Garant Circlip pliers set Standard DIN / ISO 5256 C and D- for internal circlips. DIN / ISO 5254 A and B - for external circlips. Version 700132-0147- Forged grip and joint, precision made tips of special steel, special precision profile, pressed into the body. Pliers black, head ground, plastic coated handles. 700142/0147- Joint with integral opening spring. Advantage Pressed-in tips are highly durable even in long term use. For internal circlips For external circlips Up to 10 times the working life of turned tips. m ores' onsas. Straight jaws Supplied with 1 each circlip pliers No. 719770 size J1 J2 J3 J4. Number of pliers 4 jfecnnt-1 Precision 70 0132 circlip pliers set 4 pieces, for internal circlips For internal circlip 0 mm 12-25; 19-60; 40-100; 85-140 Tip 0 mm 1.25; 1.8; 2.25; 3.2; Maximum overall length mm 140; 180; 225; 320; Supplied with 1 each circlip pliers No. 719870 size A0 - A1 - A2 - A3. Number of pliers 4 jfeGnnt-1 Precision 700142 circlip pliers set 4 pieces, for external circlips For external circlip 0 mm 3-10; 10-25; 19-60; 40-100 Tip 0 mm 0.9; 1.25; 1.8; 2.25; Maximum overall length mm 140; 140; 185; 230; Offset jaws Supplied with 1 each circlip pliers No. 719770 size J11 - J21 - J31 - J41. Number of pliers 4 1 jfeGannt” 1 Precision 70 0137 circlip pliers set 4 pieces, for internal circlips For internal circlip 0 mm 12-25; 19-60; 40-100; 85-140 Tip 0 mm 1.25; 1.8; 2.25; 3.2; Maximum overall length mm 130; 170; 210; 305; Supplied with 1 each circlip pliers No. 719870 size A01 - All - A21 - A31. Number of pliers 4 1 j&Gnnf 1 Precision 70 0147 circlip pliers set 4 pieces, for external circlips For external circlip 0 mm 3-10; 10-25; 19-60; 40-100 Tip 0 mm 0.9; 1.25; 1.8; 2.25; Maximum overall length mm 130; 130; 175; 220; 8 0 m Straight and angled jaws Version Forged grip and joint, precision made tips of special steel inserted and pressed into the body. Pliers chemically treated grey. Plastic coated handles. Joint with integral opening spring. Supplied with lx each circlip pliers No. 719790 size J1 J2 J11 J21. lx each circlip pliers No. 719890 size A1 - A2 - All - A21. Supplied in a plastic case with foam inlay. Number of pliers 8 Si 711 m Precision circlip pliers -/UUI33 set, 8-piece, for internal and external circlips For internal circlip 0 mm 12-25; 19-60 Tip 0 for internal circlip pliers mm 1.25; 1.8 Maximum overall length of internal circlip pliers mm 130; 140; 170; 180; For external circlip 0 mm 10-25; 19-60 Tip 0 for external circlip pliers mm 1.25; 1.8 Maximum overall length of external circlip pliers mm 130; 140; 175; 185; Pressed-in precision tips. 1304 Main catalogue Hoffmann Group 46
