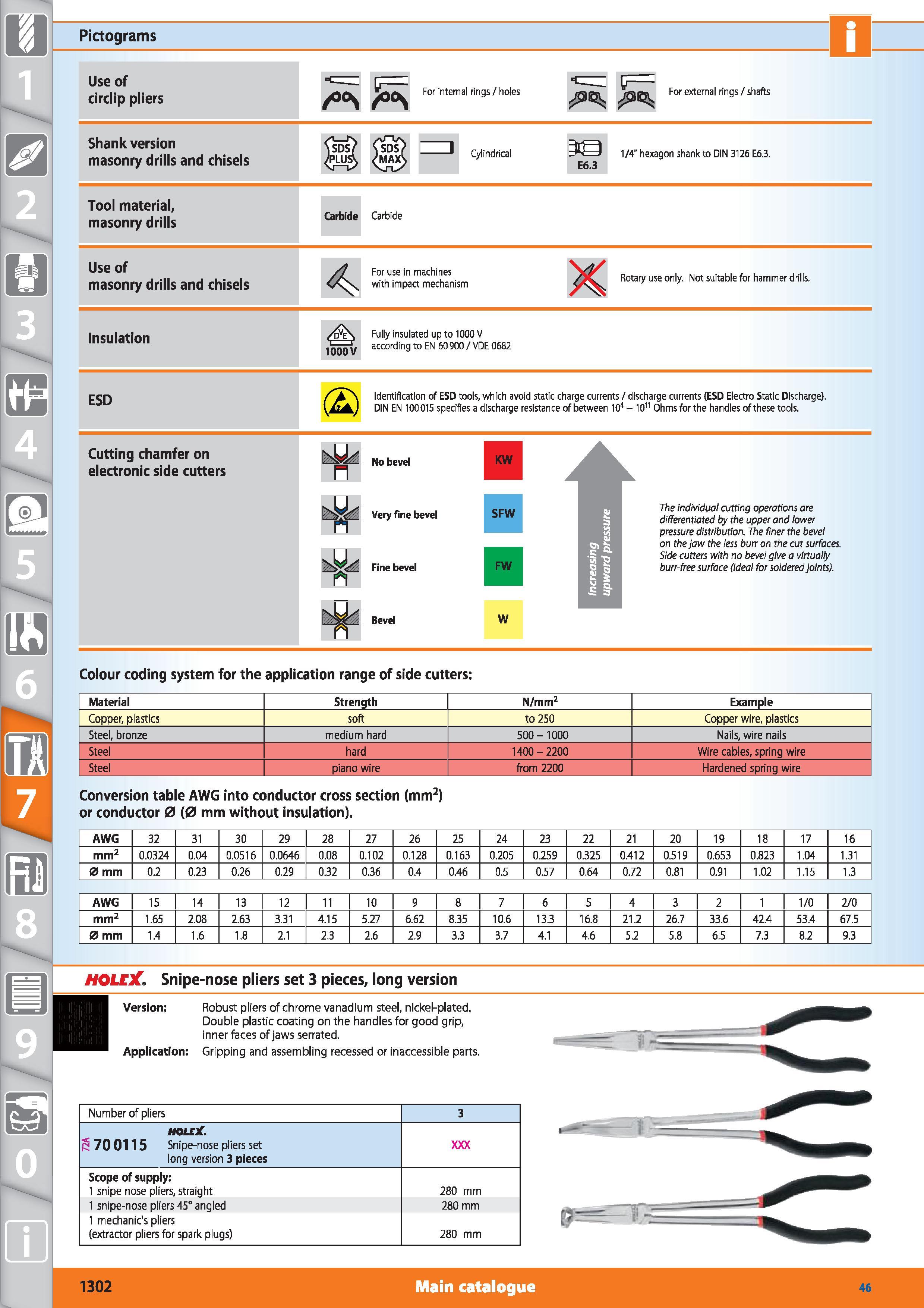

Pictograms Use of circlip pliers Shank version masonry drills and chisels /°°s /°°s For Internal rings / holes For external rings / shafts Cylindrical E6.3 1/4" hexagon shank to DIN 3126 E6.3. Tool material, masonry drills Use of masonry drills and chisels Insulation ESD Caifaide 1000V Carbide For use in machines with impact mechanism Fully insulated up to 1000 V according to EN 60900 / VDE 0682 Rotary use only. Not suitable for hammer drills. A Identification of ESD tools, which avoid static charge currents / discharge currents (ESD Electro Static Discharge). DIN EN 100015 specifies a discharge resistance of between 104- 1011 Ohms for the handles of these tools. Cutting chamfer on electronic side cutters n f\ No bevel Very fine bevel Fine bevel Bevel KW SFW FW The individual cutting operations are differentiated by the upper and lower pressure distribution. The finer the bevel on the jaw the less burr on the cut surfaces. Side cutters with no bevel give a virtually burr-free surface (ideal for soldered joints W Colour coding system for the application range of side cutters Material Strength N/mm2 Example Copper, plastics soft to 250 Copper wire, plastics Steel, bronze medium hard 500- 1000 Nails, wire nails Steel hard 1400 - 2200 Wire cables, spring wire Steel piano wire from 2200 Flardened spring wire Conversion table AWG into conductor cross section (mm2) or conductor 0 (0 mm without insulation). AWG 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 mm2 0.0324 0.04 0.0516 0.0646 0.08 0.102 0.128 0.163 0.205 0.259 0.325 0.412 0.519 0.653 0.823 1.04 1.31 0 mm 0.2 0.23 0.26 0.29 0.32 0.36 0.4 0.46 0.5 0.57 0.64 0.72 0.81 0.91 1.02 1.15 1.3 AWG 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1/0 2/0 mm2 1.65 2.08 2.63 3.31 4.15 5.27 6.62 8.35 10.6 13.3 16.8 21.2 26.7 33.6 42.4 53.4 67.5 0 mm 1.4 1.6 1.8 2.1 2.3 2.6 2.9 3.3 r-> rn 4.1 4.6 5.2 5.8 6.5 7.3 8.2 9.3 HOLEX Snipe-nose pliers set 3 pieces, long version Version Robust pliers of chrome vanadium steel, nickel-plated. Double plastic coating on the handles for good grip, inner faces of jaws serrated. Application Gripping and assembling recessed or inaccessible parts. Number of pliers 3 HOLEX 1 R 70 0115 Snipe-nose pliers set long version 3 pieces Scope of supply 1 snipe nose pliers, straight 280 mm 1 snipe-nose pliers 45° angled 280 mm , 1 mechanic's pliers (extractor pliers for spark plugs) 280 mm 1302 Main catalogue Hoffmann Group 46
