1296 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1296

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1296 1296 ENG Lab2u

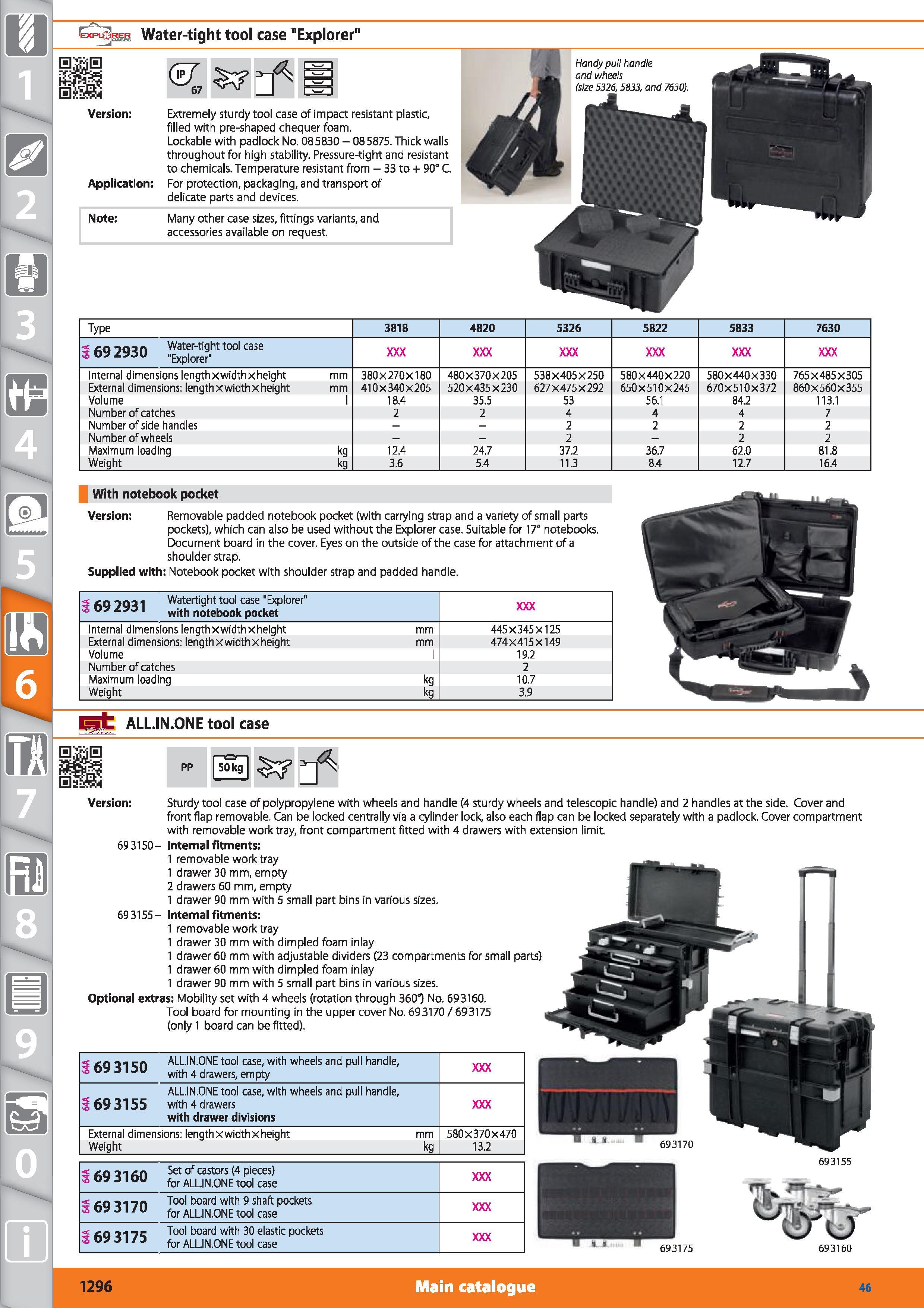

1 Water-tight tool case "Explorer" & 67 Version Application Extremely sturdy tool case of impact resistant plastic, filled with pre-shaped chequer foam. Lockable with padlock No. 085830 - 085875. Thick walls throughout for high stability. Pressure-tight and resistant to chemicals. Temperature resistant from - 33 to + 90° C. For protection, packaging, and transport of delicate parts and devices. Note Many other case sizes, fittings variants, and accessories available on request. Type 3818 4820 5326 5822 5833 7630 s co ooan Water-tight tool case soy zvsu "Exp orer- Internal dimensions lengthxwidthxheight mm 380X270X180 480X 370X 205 538 X405X 250 580X440X220 580X440X330 765 X 485 X305 External dimensions lengthxwidthxheight mm 410x340x205 520x435x230 627 x475x 292 650x510x245 670x510x372 860x560x355 Volume 1 18.4 35.5 53 56.1 84.2 113.1 Number of catches 2 2 4 4 4 7 Number of side handles 2 2 2 2 Number of wheels 2 - 2 2 Maximum loading kg 12.4 24.7 37.2 36.7 62.0 81.8 Weight kg 3.6 5.4 11.3 8.4 12.7 16.4 m With notebook pocket Version Removable padded notebook pocket (with carrying strap and a variety of small parts pockets), which can also be used without the Explorer case. Suitable for 17” notebooks. Document board in the cover. Eyes on the outside of the case for attachment of a shoulder strap. Supplied with Notebook pocket with shoulder strap and padded handle. s fiQ jqo 1 Watertight tool case "Explorer" 3 OS with notebook pocket Internal dimensions lengthxwidthxheight mm 445 X 345X125 External dimensions lengthxwidthxheight mm 474X415X149 Volume I 19.2 Number of catches 2 Maximum loading kg 10.7 Weight kg 3.9 st ALL.IN.ONE tool case PP 50 kg Handy pull handle and wheels 5833, and 7630 Version Sturdy tool case of polypropylene with wheels and handle (4 sturdy wheels and telescopic handle) and 2 handles at the side. Cover and front flap removable. Can be locked centrally via a cylinder lock, also each flap can be locked separately with a padlock Cover compartment with removable work tray, front compartment fitted with 4 drawers with extension limit. 69 3150 - Internal fitments 1 removable work tray 1 drawer 30 mm, empty 2 drawers 60 mm, empty 1 drawer 90 mm with 5 small part bins in various sizes. 69 3155- Internal fitments 1 removable work tray 1 drawer 30 mm with dimpled foam inlay 1 drawer 60 mm with adjustable dividers (23 compartments for small parts) 1 drawer 60 mm with dimpled foam inlay 1 drawer 90 mm with 5 small part bins in various sizes. Optional extras Mobility set with 4 wheels (rotation through 360°) No. 693160. Tool board for mounting in the upper cover No. 69 3170 / 693175 (only 1 board can be fitted). 1693150 ALL.IN.0NE tool case, with wheels and pull handle, with 4 drawers, empty 1693155 ALL.IN.0NE tool case, with wheels and pull handle, with 4 drawers with drawer divisions External dimensions lengthxwidthxheight mm 580x370x470 Weight kg 13.2 1693160 Set of castors (4 pieces) for ALL.IN.0NE tool case 1693170 Tool board with 9 shaft pockets for ALL.IN.0NE tool case 1693175 Tool board with 30 elastic pockets for ALL.IN.ONE tool case 693155 693160 1296 Main catalogue Hoffmann Group 46
