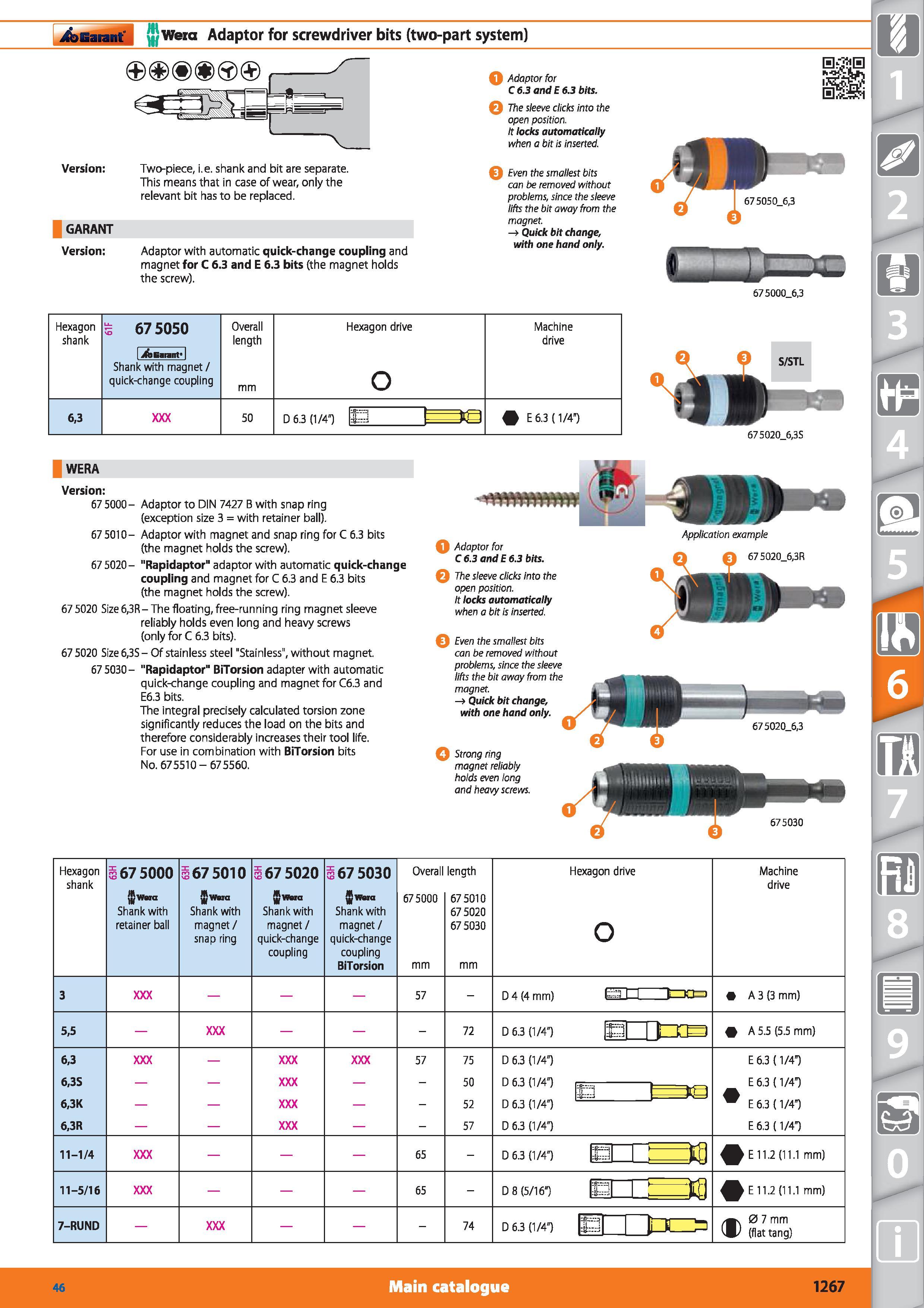

Garant Wera Adaptor for screwdriver bits (two-part system) < )< >0 Version GARANT Version Two-piece, i.e. shank and bit are separate. This means that in case of wear, only the relevant bit has to be replaced. Adaptor with automatic quick-change coupling and magnet for C 6.3 and E 6.3 bits (the magnet holds the screw). Hexagon shank 6,3 c 675050 I jfeElMIt I Shank with magnet / quick-change coupling Overall length 50 Hexagon drive D 6.3 (1/4") Q Adaptor for C 6.3 and E 6.3 bits. Q The sleeve clicks into the open position. It locks automatically when a bit is inserted. Q Even the smallest bits can be removed without problems, since the sleeve lifts the bit away from the magnet. > Quick bit change, with one hand only. Machine drive E 6.3 (1/4”) a TV rf 67 5000_6,3 675020_6,3S WERA Version 67 5000- Adaptor to DIN 7427 B with snap ring (exception size 3 with retainer ball). 67 5010- Adaptor with magnet and snap ring for C 6.3 bits (the magnet holds the screw). 67 5020- "Rapidaptor" adaptor with automatic quick-change coupling and magnet for C 6.3 and E 6.3 bits (the magnet holds the screw). 675020 Size 6,3R-The floating, free-running ring magnet sleeve reliably holds even long and heavy screws (only for C 6.3 bits). 67 5020 Size 6,3S - Of stainless steel "Stainless", without magnet. 67 5030- "Rapidaptor" BiTorsion adapter with automatic quick-change coupling and magnet for C6.3 and E6.3 bits. The integral precisely calculated torsion zone significantly reduces the load on the bits and therefore considerably increases their tool life. For use in combination with BiTorsion bits No. 675510 - 675560. Adaptor for C 6.3 and E 6.3 bits. Q The sleeve clicks Into the open position. It locks automatically when a bit is inserted. Q Even the smallest bits can be removed without problems, since the sleeve lifts the bit away from the magnet. > Quick bit change, with one hand only. Q Strong ring magnet reliably holds even long and heavy screws. Application example 67 5020_6,3R 67 5020_6,3 675030 Flexagon shank 5,5 6,3 6,3S 6,3K 6.3R 11-1/4 11-5/16 7-RUND s 67 5000 jj wMu Shank with retainer ball S 67 5010 jjjwkra Shank with magnet/ snap ring 2 67 5020 jjjwsra Shank with magnet / quick-change coupling 167 5030 jjjwara Shank with magnet / quick-change coupling BiTorsion Overall length 675000 57 57 65 65 67 5010 675020 67 5030 72 75 50 52 57 74 Hexagon drive D 4 (4 mm) er 3=Da=> D 6.3 (1/4") -F 3 D 6.3 (1/4") D 6.3 (1/4") D 6.3 (1/4") D 6.3 (1/4") D 6.3 (1/4") M D 8 (5/16") D 6.3 (1/4") JDC Machine drive A 3 (3 mm) A 5.5 (5.5 mm) E 6.3 (1/4") E 6.3 (1/4") E 6.3 (1/4") E 6.3 (1/4") E 11.2 (11.1 mm) E 11.2 (11.1 mm) 0 7 mm (flat tang) m Main catalogue Hoffmann Group 46 1267
