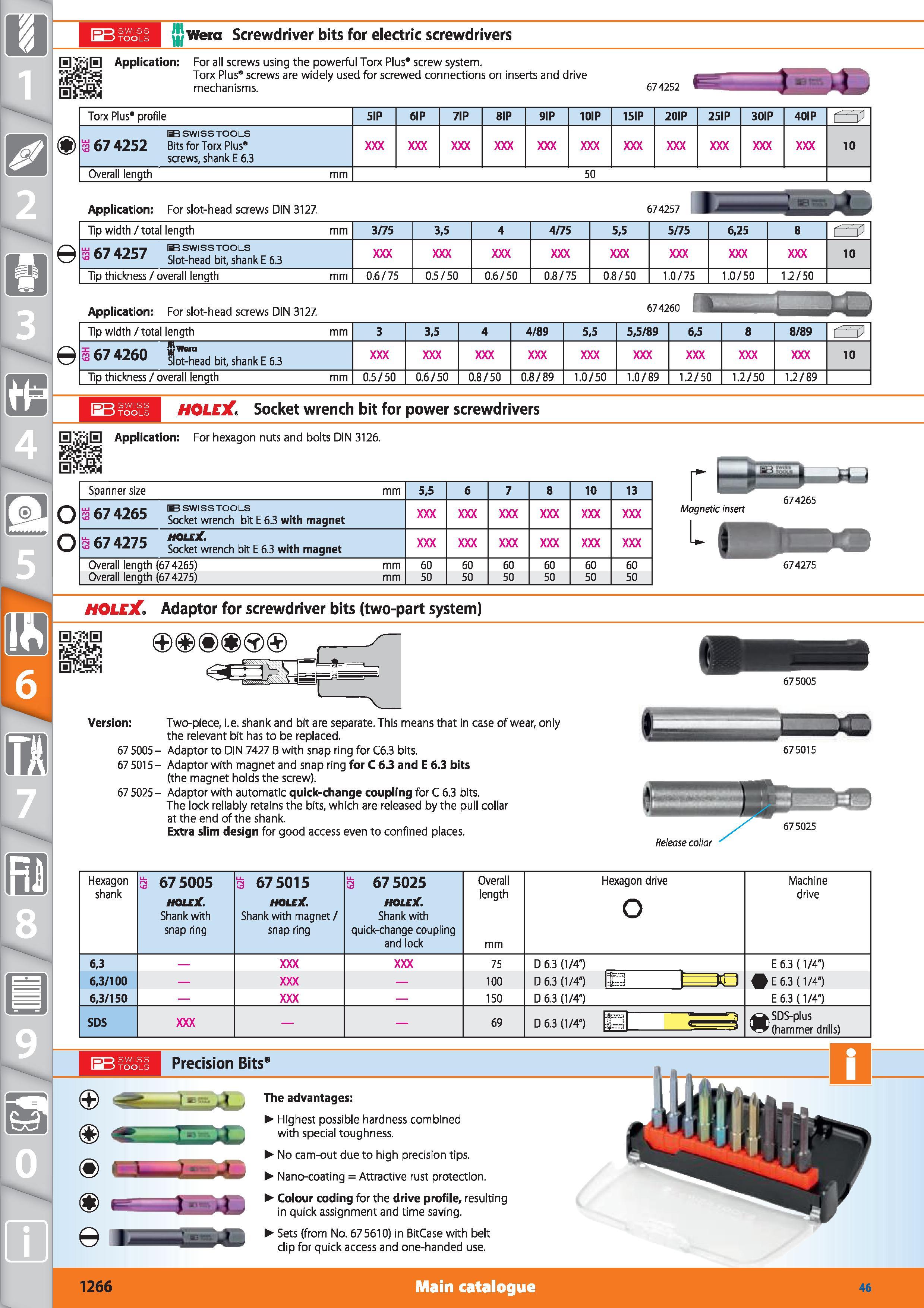

I-JJ SWISS \m) TOOLS UJwera Screwdriver bits for electric screwdrivers Application For all screws using the powerful Torx Plus screw system. Torx Plus screws are widely used for screwed connections on inserts and drive mechanisms. 674252 Torx Plus profile 5IP 61P 7IP 8IP 9IP 10IP 15IP 201P 25IP 30IP 401P IB SWISS TOOLS 3 67 4252 Bits for Torx Plus screws, shank E 6.3 10 Overall length mm 50 Application For slot-head screws DIN 3127. 674257 Tip width/total length mm 3/75 3,5 4 4/75 5,5 5/75 6,25 8 iffz9 uj IBH SWISS TOOLS Slot-head bit, shank E 6.3 10 Tip thickness / overall length mm 0.6/75 0.5/50 0.6/50 0.8/75 0.8/50 1.0/75 1.0/50 1.2/50 Application For slot-head screws DIN 3127. 674260 Tip width/total length mm 3 3,5 4 4/89 5,5 5,5/89 6,5 8 8/89 S 67 4260 iXd bit, shank E 6.3 10 Tip thickness / overall length mm 0.5/50 0.6/50 0.8/50 0.8/89 1.0/50 1.0/89 1.2/50 1.2/50 1.2/89 I 1_5 swiss LmZD tools HOLEJCSocket wrench bit for power screwdrivers H'vijiS Application For hexagon nuts and bolts DIN 3126. Spanner size mm 5,5 6 7 8 10 13 s 67 4265 1 3 SWISS TOOLS Socket wrench bit E 6.3 with magnet s 67 4275 HOLEX Socket wrench bit E 6.3 with magnet Overall length (674265) mm 60 60 60 60 60 60 Overall length (674275) mm 50 50 50 50 50 50 Magnetic insert 674265 674275 HOLEX Adaptor for screwdriver bits (two-part system) Version Two-piece, i.e. shank and bit are separate. This means that in case of wear, only the relevant bit has to be replaced. 67 5005 - Adaptor to DIN 7427 B with snap ring for C6.3 bits. 67 5015- Adaptor with magnet and snap ring for C 6.3 and E 6.3 bits (the magnet holds the screw). 67 5025 - Adaptor with automatic quick-change coupling for C 6.3 bits. The lock reliably retains the bits, which are released by the pull collar at the end of the shank Extra slim design for good access even to confined places. 675005 675015 675025 Release collar Flexagon shank 3 675005 HOLEX Shank with snap ring 3 675015 HOLEX Shank with magnet / snap ring 3 675025 HOLEX Shank with quick-change coupling and lock Overall length mm Flexagon drive O Machine drive 6,3 75 D 6.3 (1/4") E 6.3 (1/4”) 6,3/100 100 6.3 (1/4") fei r K ) E 6.3 (1/4") 6,3/150 SDS 150 69 D 6.3 (1/4") D 6.3 (1/4”) A a E 6.3 (1/4") SDS-plus (hammer drills) Precision Bits8 The advantages Highest possible hardness combined with special toughness. No cam-out due to high precision tips. Nano-coating Attractive rust protection. Colour coding for the drive profile, resulting in quick assignment and time saving. Sets (from No. 675610) in BitCase with belt clip for quick access and one-handed use. 1266 Main catalogue Hoffmann Group 46
