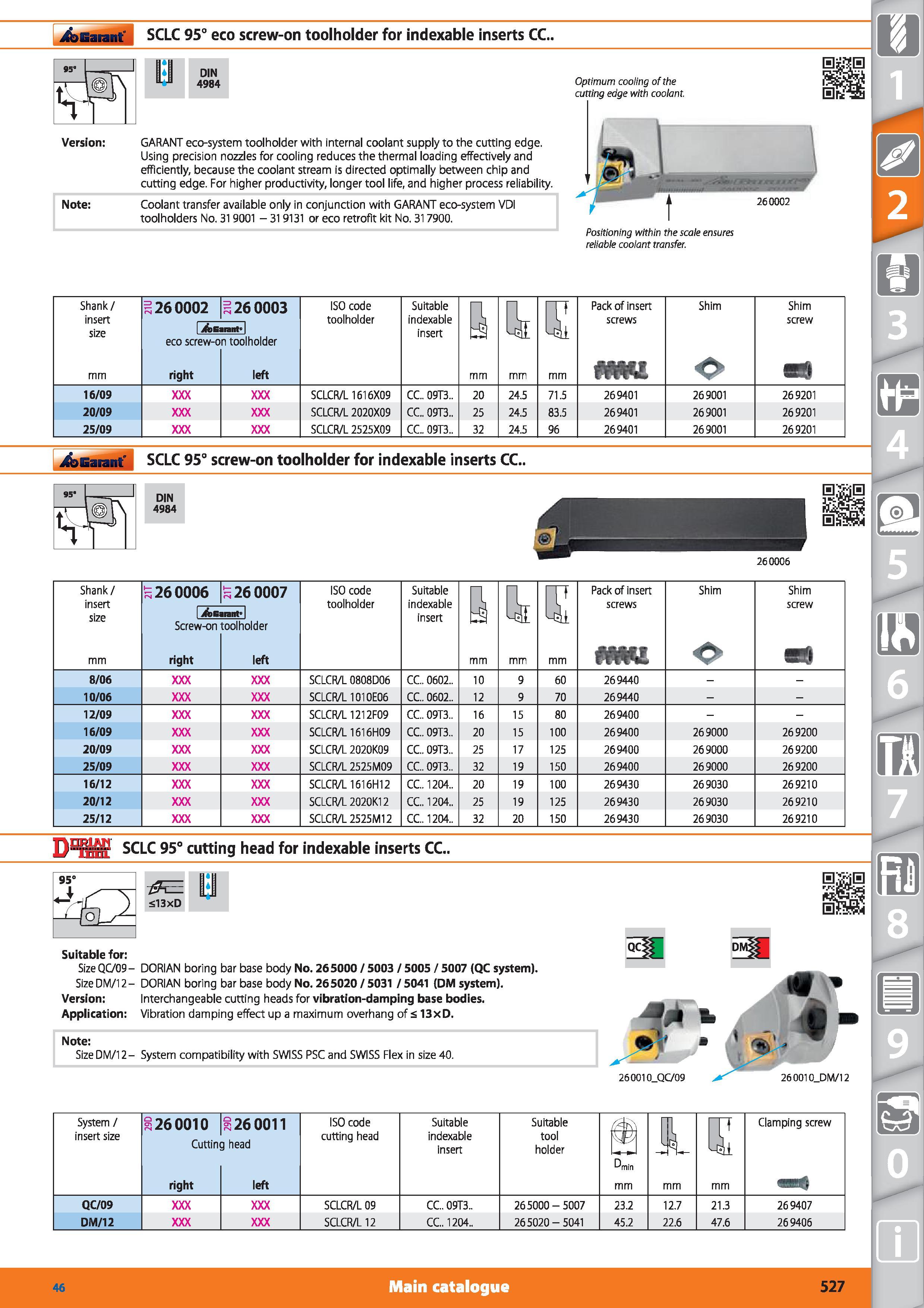

Eco screw-on toolholder Garant SCLC 95° for indexable inserts CC Version GARANT eco-system toolholder with internal coolant supply to the cutting edge. Using precision nozzles for cooling reduces the thermal loading effectively and efficiently, because the coolant stream is directed optimally between chip and cutting edge. For higher productivity, longer tool life, and higher process reliability. Note Coolant transfer available only in conjunction with GARANT eco-system VDI toolholders No. 319001 - 319131 or eco retrofit kit No. 317900. Optimum cooling of the cutting edge with coolant. 260002 Positioning within the scale ensures reliable coolant transfer. Shank/ insert size mm 126 0002 126 0003 ISO code toolholder Suitable indexable insert a Tim mm 02 mm Pack of insert screws vmt Shim o Shim screw a I jfcEMWlt" eco screw-o right n toolholder left 16/09 SCLCR/L 1616X09 CC 09T3 20 24.5 71.5 269401 269001 269201 20/09 SCLCR/L 2020X09 CC 09T3 25 24.5 83.5 269401 269001 269201 25/09 SCLCR/L 2525X09 CC 09T3 32 24.5 96 269401 269001 269201 Shank/ insert size mm 260006 1 Jh 6 Screw-on right 260007 rant1 toolholder left ISO code toolholder Suitable indexable insert nm k mm 02 mm Pack of insert screws fifidUJ PHTk Shim o Shim screw a 8/06 SCLCR/L 0808D06 CC 0602 10 9 60 269440 10/06 SCLCR/L 1010E06 CC 0602 12 9 70 269440 12/09 SCLCR/L 1212F09 CC 09T3 16 15 80 269400 16/09 SCLCR/L 1616H09 CC 09T3 20 15 100 269400 269000 269200 20/09 SCLCR/L 2020K09 CC 09T3 25 17 125 269400 269000 269200 25/09 SCLCR/L 2525M09 CC 09T3 32 19 150 269400 269000 269200 16/12 SCLCR/L 1616H12 CC 1204 20 19 100 269430 269030 269210 20/12 SCLCR/L 2020K12 CC 1204 25 19 125 269430 269030 269210 25/12 SCLCR/L 2525M12 CC. 1204 32 20 150 269430 269030 269210 PRIAM’ SCLC 95° cutting head for indexable inserts CC 95°
