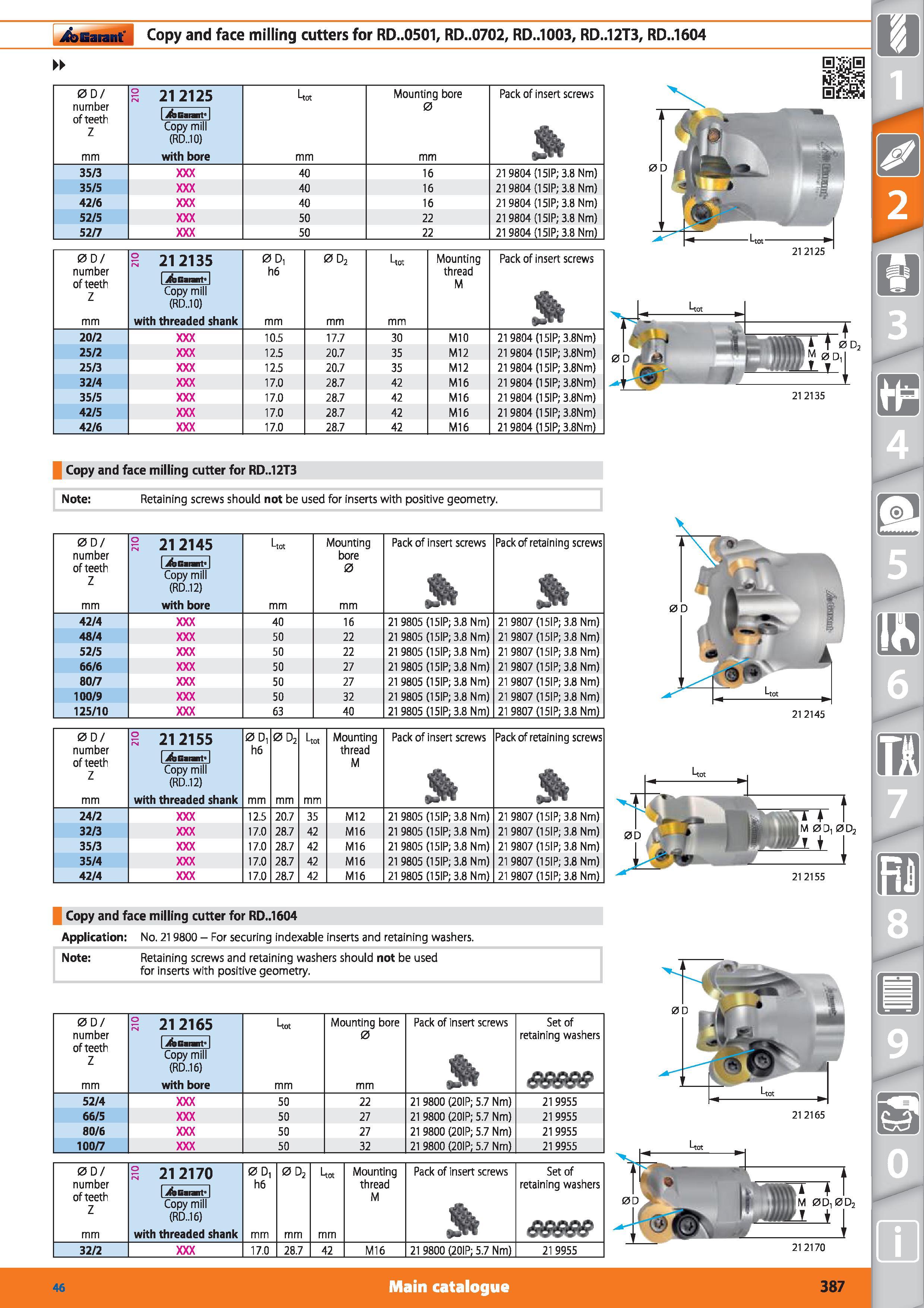

Copy and face milling cutters Garant for RD 0501, RD 0702, RD 1003, RD 12T3, RD 1604 00/ number of teeth Z mm S 212125 1 ifesaiants 1 Copy mill (

Copy and face milling cutters Garant for RD..0501, RD..0702, RD..1003, RD..12T3, RD..1604 00/ number of teeth Z mm S 212125 1 ifesaiants 1 Copy mill (RD..10) with bore Uot mm Mounting bore 0 mm Pack of insert screws 35/3 40 16 21 9804 (15IP; 3.8 Nm) 35/5 40 16 219804 (15IP; 3.8 Nm) 42/6 40 16 21 9804 (15IP; 3.8 Nm) 52/5 50 22 219804 (15IP; 3.8 Nm) 52/7 50 22 21 9804 (15IP; 3.8 Nm) 00/ number of teeth Z mm S 212135 1 ifecamt 1 Copy mill (RD..10) with threaded shank 0 D, h6 mm 0D2 mm Uot mm Mounting thread M Pack of insert screws 20/2 10.5 17.7 30 M10 21 9804 (15IP; 3.8Nm) 25/2 12.5 20.7 35 M12 21 9804 (15IP; 3.8Nm) 25/3 12.5 20.7 35 M12 219804 (15IP; 3.8Nm) 32/4 17.0 28.7 42 M16 21 9804 (15IP; 3.8Nm) 35/5 17.0 28.7 42 M16 21 9804 (15IP; 3.8Nm) 42/5 17.0 28.7 42 M16 21 9804 (15IP; 3.8Nm) 42/6 17.0 28.7 42 M16 21 9804 (15IP; 3.8Nm) 0 D 212125 Copy and face milling cutter for RD..12T3 Note Retaining screws should not be used for inserts with positive geometry. 00/ number of teeth Z mm S 212145 1 jfecaiant11 Copy mill (RD..12) with bore Uot mm Mounting bore 0 mm Pack of insert screws Pack of retaining screws jiJTT 42/4 40 16 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 48/4 50 22 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 52/5 50 22 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 66/6 50 27 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 80/7 50 27 21 9805 (15IP; 3.8 Nm) 21 9807 (1 SIP; 3.8 Nm) 100/9 50 32 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 125/10 63 40 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 00/ number of teeth Z S 212155 1 Garant 1 Copy mill (RD..12) 0D, h6 0D2 Uot Mounting thread M Pack of insert screws Pack of retaining screws mm with threaded shank mm jiJTt jiJTt 24/2 12.5 20.7 35 M12 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 32/3 17.0 28.7 42 M16 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 35/3 17.0 28.7 42 M16 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 35/4 17.0 28.7 42 M16 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 42/4 17.0 28.7 42 M16 21 9805 (15IP; 3.8 Nm) 21 9807 (15IP; 3.8 Nm) 21 2145 0D2 Copy and face milling cutter for RD..1604 Application No. 219800 - For securing indexable inserts and retaining washers. Note Retaining screws and retaining washers should not be used for inserts with positive geometry. 46 00/ number of teeth Z mm S 212165 1 jfocaiant" 1 Copy mill (RD..16) with bore Uot mm Mounting bore 0 mm Pack of insert screws Set of retaining washers 52/4 50 22 21 9800 (20IP; 5.7 Nm) 219955 66/5 50 27 21 9800 (20IP; 5.7 Nm) 219955 80/6 50 27 21 9800 (20IP; 5.7 Nm) 219955 100/7 50 32 21 9800 (20IP; 5.7 Nm) 21 9955 00/ number of teeth Z mm S 212170 1 j&Eaiant" 1 Copy mill (RD..16) with threaded shank 0 D, h6 mm 0 d2 mm Uot mm Mounting thread M Pack of insert screws jiJTT Set of retaining washers 32/2 17.0 28.7 42 M16 21 9800 (20IP; 5.7 Nm) 219955 Main catalogue 387 21 2165
