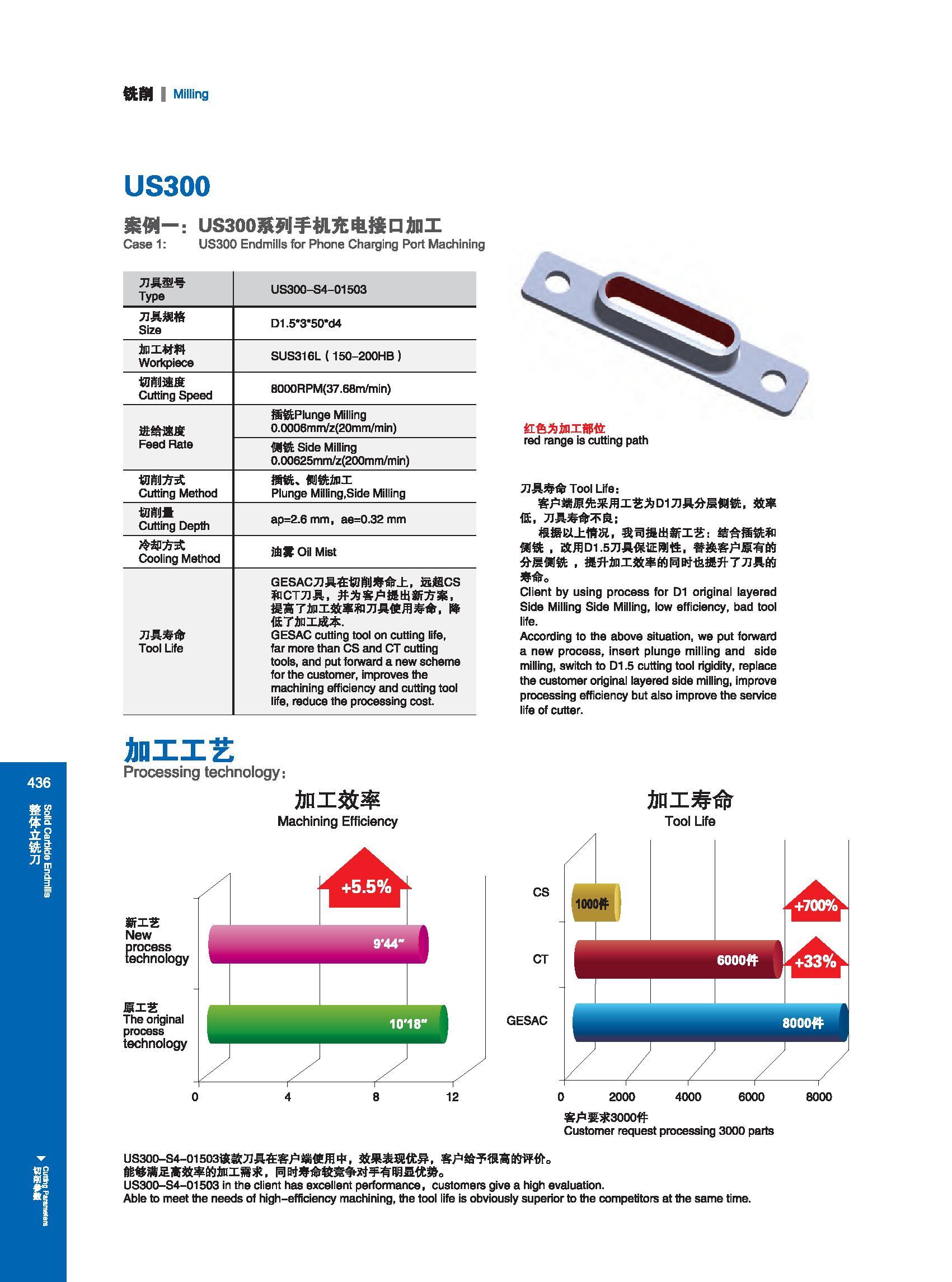

铣割 I Milling US300 案例一：US300系列手机充电接 加工 Case 1: US300 Endmills for Phone Charging Port Machining 刀具型号 Type US300-S4-01503 刀具规格 Size D1.5 3 50 d4 加工材料 Workpiece SUS316L (150-200HB) 切削速度 Cutting Speed 8000RPM(37.68m/min) 进離度 Feed Rate 插株Plunge Milling 0.0006mm/z(20mm/min) 雛 Side Milling 0.00625mm/z(200mm/min) 切削方式 Cutting Method 插被 侧铣加工 Plunge Milling,Side Milling 切削量 Cutting Depth ap=2.6 mm, ae=0.32 mm 細方式 Cooling Method 油雾 Oil Mist 刀具寿命 Tool Life GESAC刀具在切削寿命上，远趄CS 和CT刀具，并为客户提出新方案， 提高了加工效幸和刀具使用寿命，降 低了加工成本. GESAC cutting tool on cutting life, far more than CS and CT cutting tools, and put forward a new schema for the customer, improves (he machining efficiency and cutting tool life, reduce the processing cost. 红色为加工部位 red range is cutting path 刀具寿命Tool Life: 客户孀原先采用工艺为D1刀具分层侧铣，效率 低，刀具寿命不良： 根据以上情况，我司提出新工芝：结合插铣和 俩铣，改用D1.5刀具保证刚性，替換客户原有的 分居俩铣，提升加工效聿的同时也提升了刀具的 寿命。 Client by using process for D1 original layered Side Milling Side Milling, low efficiency, bad tool life. According to the above situation, we put forward a new process, insert plunge milling and side milling, switch to D1.5 cutting tool rigidity, replace the customer original layered side milling, improve processing efficiency but also improve the service life of cutter. 加工工艺 Processing technology： 加工效率 Machining Efficiency 新工艺 New process technology 原工艺 The original process technology 加工寿命 Tool Life GESAC 客户要求3000件 Customer request processing 3000 parts US300 S4-01503该款刀具在客户端使用中，效果表现优异，客户给予很离的评价。 能够满足高效率的加工需求，同时寿命较竞争对手有明显优势。 US300-S4-01503 in the client has excellent performance, customers give a high evaluation. Able to meet the needs of high-efficient machining, the tool life is obviously superior to the competitors at the same time.
