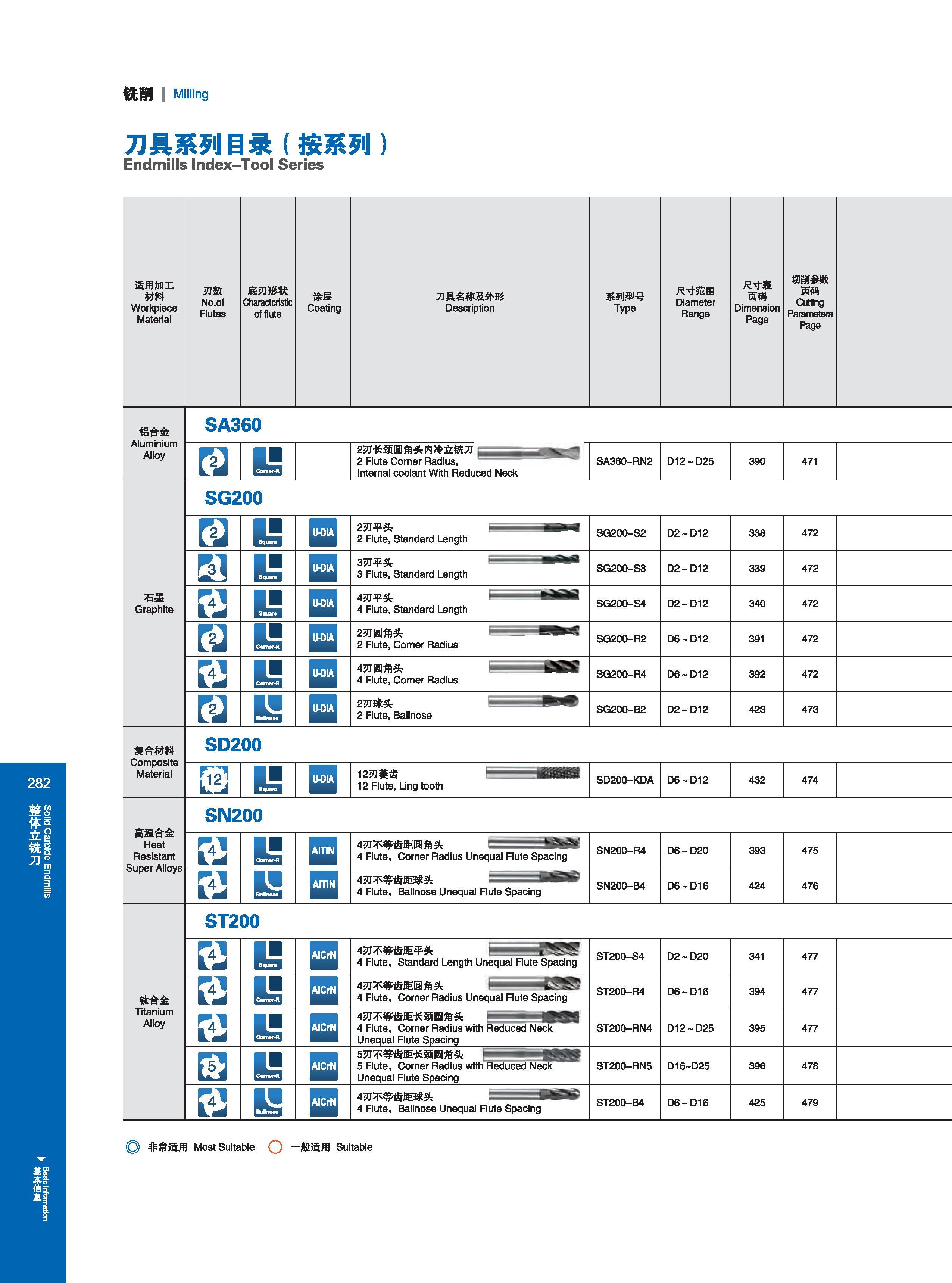

铣削 I Milling 刀具系列s录（按系列） Endmills Index-Tool Series 适用加工 材料 Workpiece Material Обрабатываемые материалы по ISO 刃数 No.of Flutes 底刃形状 Characteristic of flute 涂层 Coating 刀具名称及夕卜形 Description 系列型号 Type 尺寸范围 Diameter Range 尺寸表 页码 Dimension Page 切削参数 页码 Cutting Parameters Page 错合金 Aluminium Alloy SA360 ry 闢 2刃长颈圆角头内冷立铣刀 2 Flute Comer Radius, Internal coolant With Reduced Neck SA360-RN2 D12-D25 390 471 石墨 Graphite Заготовки из графита SG200 ry y U-DIA U-DIA U-DIA U-DIA U-DIA U-DIA 2刃平头 2 Flute, Standard Length SG200-S2 D2-D12 338 472 0 y 3刃平头 1 3 Flute, Standard Length SG200-S3 D2-D12 339 472 H y 4 刃平头 4 Flute, Standard Length SG200-S4 D2-D12 340 472 2刃圆角头 2 Flute, Corner Radius SG200-R2 D6-D12 391 472 y 4刃圖角头 4 Flute, Corner Radius SG200-R4 D6-D12 392 472 is 2刃球头 2 Flute, Ballnose SG200-B2 D2-D12 423 473 复合材料 Composite Material SD2 00 y U-DIA 12 Flute, Ling tooth SD200-KDA D6-D12 432 474 高温合金 Heat Resistant Super Alloys SN200 AITiN 1 1 AITiN 1 4 Flute, Corner Radius Unequal Flute Spacing SN200-R4 D6 D20 393 475 is 4 Flute, Ballnose Unequal Flute Spacing SN200-B4 D6-D16 424 476 钛合金 Titanium Alloy ST200 y AlCrN 4刃不等齿距平头 4 Flute, Standard Length Unequal Flute Spacing ST200-S4 D2 D20 341 477 H wys AlCrN 4刃不等齿距圆角头 4 Flute, Corner Radius Unequal Flute Spacing ST200-R4 D6-D16 394 477 H AlCrN 4刃不等齿距长颈圆角头 i pfM 4 Flute, Corner Radius with Reduced Neck Unequal Flute Spacing ST200-RN4 D12-D25 395 477 (3 y AlCrN AlCrN 5刃不等齿距长颈圆角头 5 Flute, Corner Radius with Reduced Neck Unequal Flute Spacing ST200-RN5 D16-D25 396 478 is 4刃不等齿距球头 4 Flute, Ballnose Unequal Flute Spacing ST200-B4 D6-D16 425 479 非常适用 Most Suitable Q 般适用 Suitable
