286 Каталог GESAC 2015 Станочный металлорежущий инструмент с СРП и монолитный Стр.280

Каталог GESAC 2015 Инструмент металлорежущий Стр. 280 0286 Lab2u

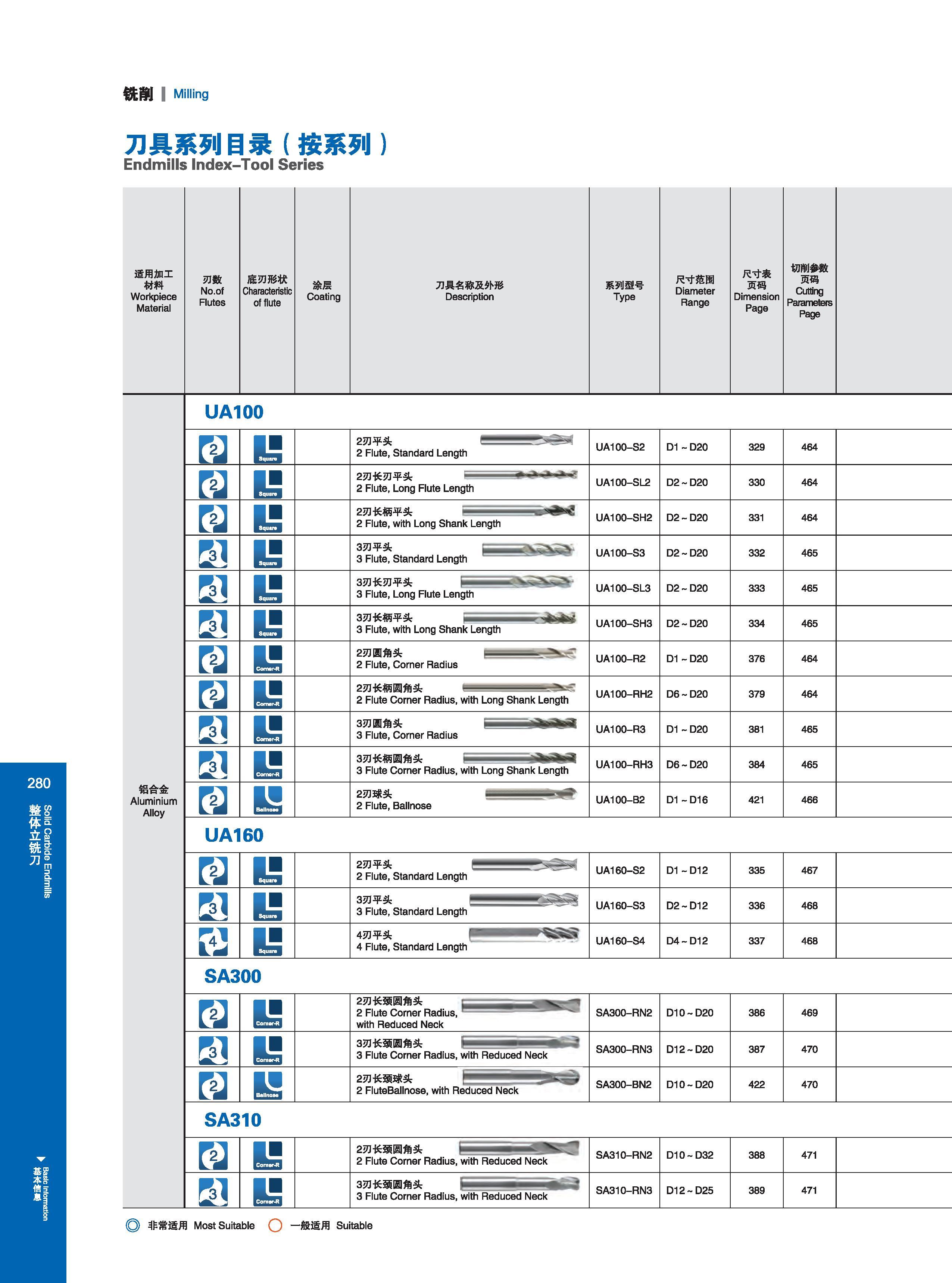

铣削 I Milling 刀具系列s录（按系列） Endmills Index-Tool Series 适用加工 材料 Workpiece Material Обрабатываемые материалы по ISO 刃数 No.of Flutes 底刃形状 Characteristic of flute 涂层 Coating 刀具名称及外形 Description 系列型号 Type 尺寸范围 Diameter Range 尺寸表 页码 Dimension Page 切削参数 页码 Cutting Parameters Page UA100 2刃平头 2 Flute, Standard Length UA100-S2 D1 D20 464 y 2刃长刃平头 2 Flute, Long Flute Length UA100-SL2 D2-D20 464 y 2刃长柄平头 2 Flute, with Long Shank Length UA100-SH2 3刃平头 3 Flute, Standard Length UA100-S3 D2-D20 332 465 y 3刃长刃平头 3 Flute, Long Flute Length UA100-SL3 D2-D20 333 465 y 3刃长柄平头 3 Flute, with Long Shank Length UA100-SH3 D2 D20 465 2刃圆角头 2 Flute, Corner Radius UA100-R2 2刃长柄圆角头 2 Flute Corner Radius, with Long Shank Length UA100-RH2 D6-D20 379 464 3刃圆角头 3 Flute, Corner Radius D1 D20 381 465 3刃长柄圆角头 3 Flute Corner Radius, with Long Shank Length UA100-RH3 D6-D20 384 465 铝合金 Aluminium Alloy IS 2刃球头 2 Flute, Ballnose UA100-B2 D1 UA160 2刃平头 2 Flute, Standard Length UA160-S2 D1 -D12 335 467 3刃平头 3 Flute, Standard Length UA160-S3 D2-D12 468 4刃平头 4 Flute, Standard Length UA160-S4 D4-D12 SA300 ry 翮 2刃长颈圆角头 2 Flute Corner Radius, with Reduced Neck SA300-RN2 D10-D20 386 469 闢 3刃长颈圆角头 ' SA300-RN3 D12-D20 387 470 3 Flute Corner Radius, with Reduced Neck ry is 2刃长颈球头 2 FluteBallnose, with Reduced Neck SA300-BN2 D10-D20 422 470 SA310 M 2刃长颈圆角头 2 Flute Corner Radius, with Reduced Neck SA310-RN2 D10-D32 388 471 0 y 3刃长殛圓 头 3 Flute Corner Radius, with Reduced Neck SA310-RN3 D12-D25 389 471 非常适用 Most Suitable Q 般适用 Suitable
