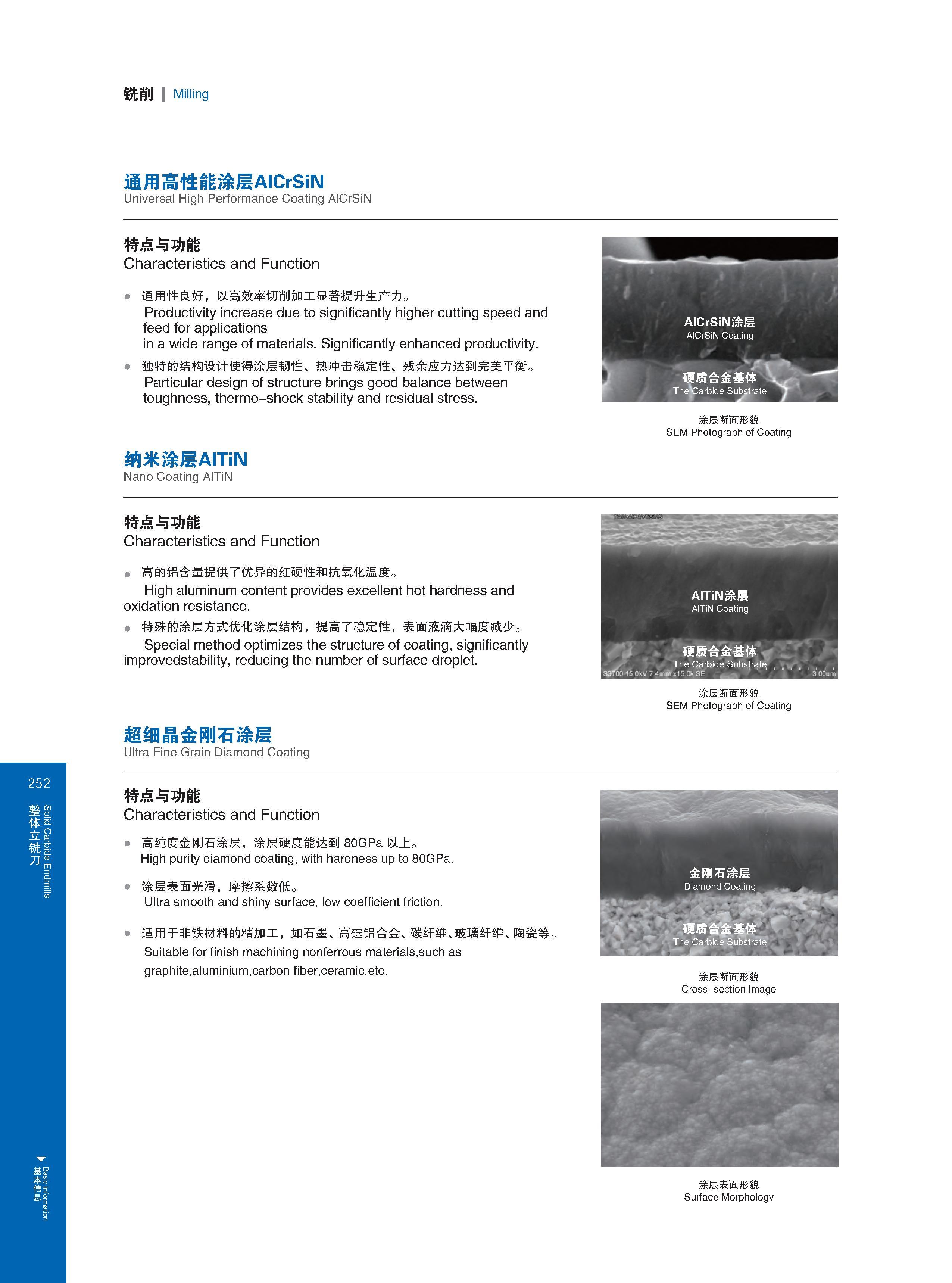

So id Carbide Endmi s Basic Information 铣削 Milling 通用高性能涂层A丨CrSiN Universal High Performance Coating AlCrSiN 特点与功能 Characteristics and Function 通用性良好，以高效率切削加工显著提升生产力。 Productivity increase due to significantly higher cutting speed and feed for applications in a wide range of materials. Significantly enhanced productivity. 独特的结构设计使得涂层韧性 热冲击稳定性 残余应力达到完美平衡。 Particular design of structure brings good balance between toughness, thermo-shock stability and residual stress. 纳米涂层A丨TiN Nano Coating AlTiN 涂层断面形貌 SEM Photograph of Coating AlTiN涂层 AlTiN Coating 硬质合金基体 The Carbide Substrate Sam 15 OkV 7 4nv X15.CK SE ' 3 00um 特点与功能 Characteristics and Function 高的铝含量提供了优异的红硬性和抗氧化温度。 High aluminum content provides excellent hot hardness and oxidation resistance. 特殊的涂层方式优化涂层结构，提高了稳定性，表面液滴大幅度减少。 Special method optimizes the structure of coating, significantly improvedstability, reducing the number of surface droplet. 涂层断面形貌 SEM Photograph of Coating 超细晶金刚石涂层 Ultra Fine Grain Diamond Coating 252 特点与功能 Characteristics and Function 高纯度金刚石涂层，涂层硬度能达到80GPa以上。 High purity diamond coating, with hardness up to 80GPa. 涂层表面光滑，摩擦系数低。 Ultra smooth and shiny surface, low coefficient friction. 适用于非铁材料的精加工，如石墨 高硅铝合金 碳纤维 玻璃纤维 陶瓷等。 Suitable for finish machining nonferrous materials,such as graphite,aluminium,carbon fiber,ceramic,etc. 涂层断面形貌 Cross-section Image 涂层表面形貌 Surface Morphology
