256 Каталог GESAC 2015 Станочный металлорежущий инструмент с СРП и монолитный Стр.250

Каталог GESAC 2015 Инструмент металлорежущий Стр. 250 0256 Lab2u

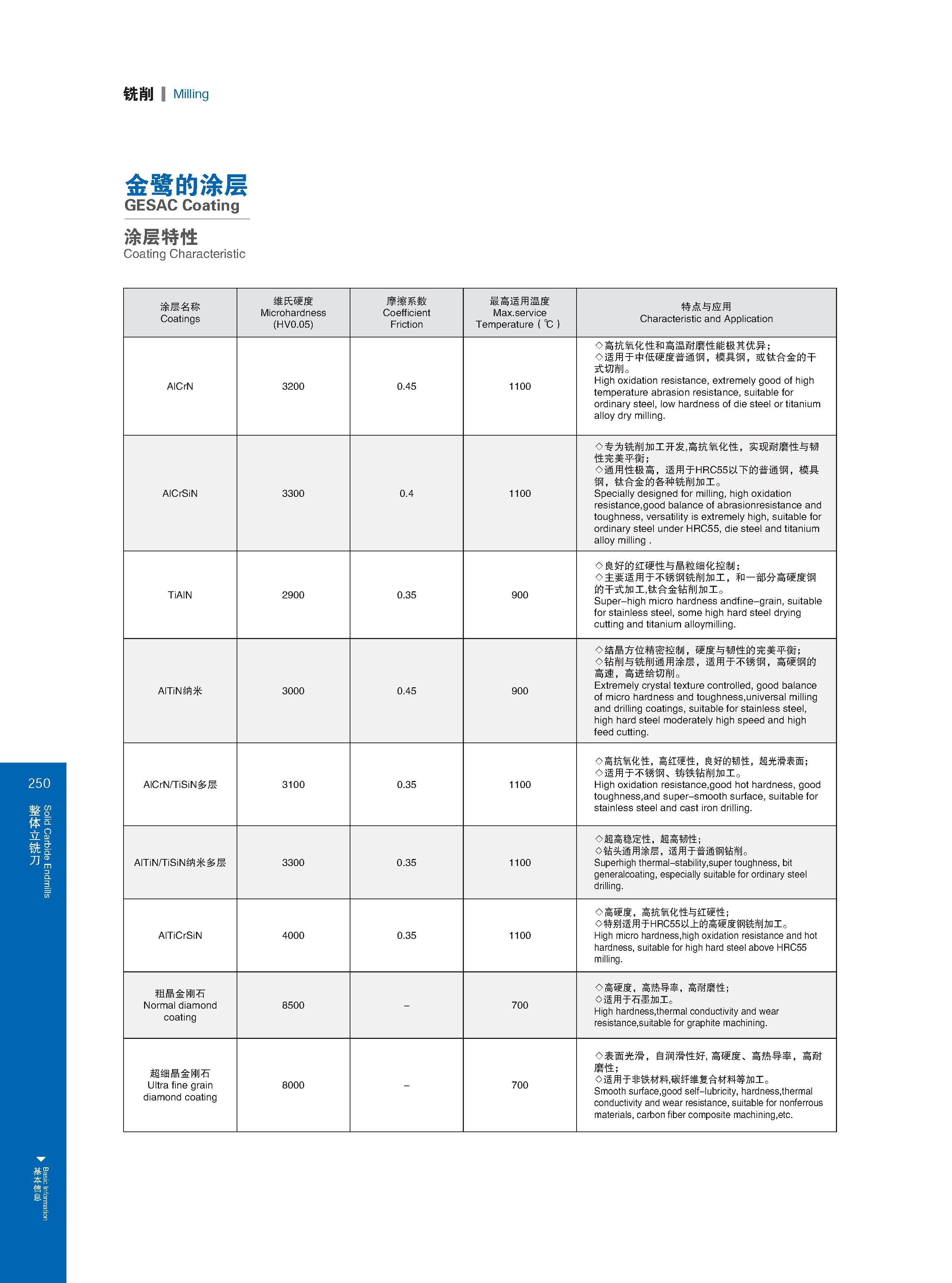

铣削 Milling 金鹭的涂层 GESAC Coating 涂层特性 Coating Characteristic 涂层名称 Coatings 维氏硬度 Microhardness (HV0.05) 摩擦系数 Coefficient Friction 最高适用温度 Max.service Temperature( ) 特点与应用 Characteristic and Application AlCrN 3200 0.45 1100 ◊高抗氧化性和高温耐磨性能极其优异； ◊适用于中低硬度普通钢，模具钢，或钛合金的干 式切削。 High oxidation resistance, extremely good of high temperature abrasion resistance, suitable for ordinary steel, low hardness of die steel or titanium alloy dry milling. AlCrSiN 3300 0.4 1100 ◊专为铣削加工开发,高抗氧化性，实现耐磨性与韧 性完美平衡； ◊通用性极高，适用于HRC55以下的普通钢，模具 钢，钛合金的各种铣削加工。 Specially designed for milling, high oxidation resistance,good balance of abrasionresistance and toughness, versatility is extremely high, suitable for ordinary steel under HRC55, die steel and titanium alloy milling TiAIN 2900 0.35 900 ◊良好的红硬性与晶粒细化控制； ◊主要适用于不锈钢铣削加工，和一部分高硬度钢 的干式加工,钛合金钻削加工。 Super-high micro hardness andfine-grain, suitable for stainless steel, some high hard steel drying cutting and titanium alloymilling. AITiN纳米 3000 0.45 900 ◊结晶方位精密控制，硬度与韧性的完美平衡； ◊钻削与铣削通用涂层，适用于不锈钢，高硬钢的 高速，高进给切削。 Extremely crystal texture controlled, good balance of micro hardness and toughness,universal milling and drilling coatings, suitable for stainless steel, high hard steel moderately high speed and high feed cutting. AlCrN/TiSiN多层 3100 0.35 1100 ◊高抗氧化性，高红硬性，良好的韧性，超光滑表面； ◊适用于不锈钢 铸铁钻削加工。 High oxidation resistance,good hot hardness, good toughness,and super-smooth surface, suitable for stainless steel and cast iron drilling. AITiN/TiSiN纳米多层 3300 0.35 1100 ◊超高稳定性，超高韧性； ◊钻头通用涂层，适用于普通钢钻削。 Superhigh thermal-stability,super toughness, bit generalcoating, especially suitable for ordinary steel drilling. AlTiCrSiN 4000 0.35 1100 ◊高硬度，高抗氧化性与红硬性； ◊特别适用于HRC55以上的高硬度钢铣削加工。 High micro hardness,high oxidation resistance and hot hardness, suitable for high hard steel above HRC55 milling. 粗晶金刚石 Normal diamond coating 8500 - 700 ◊高硬度，高热导率，高耐磨性； ◊适用于石墨加工。 High hardness,thermal conductivity and wear resistance,suitable for graphite machining. 超细晶金刚石 Ultra fine grain diamond coating 8000 - 700 ◊表面光滑，自润滑性好，高硬度 高热导率，高耐 磨性； ◊适用于非铁材料，碳纤维复合材料等加工。 Smooth surface,good self-lubricity, hardness,thermal conductivity and wear resistance, suitable for nonferrous materials, carbon fiber composite machining,etc. ◦ Solid Carbide Endmi=s 乃整体立铣刀 roasic Informatio「 基本信息
