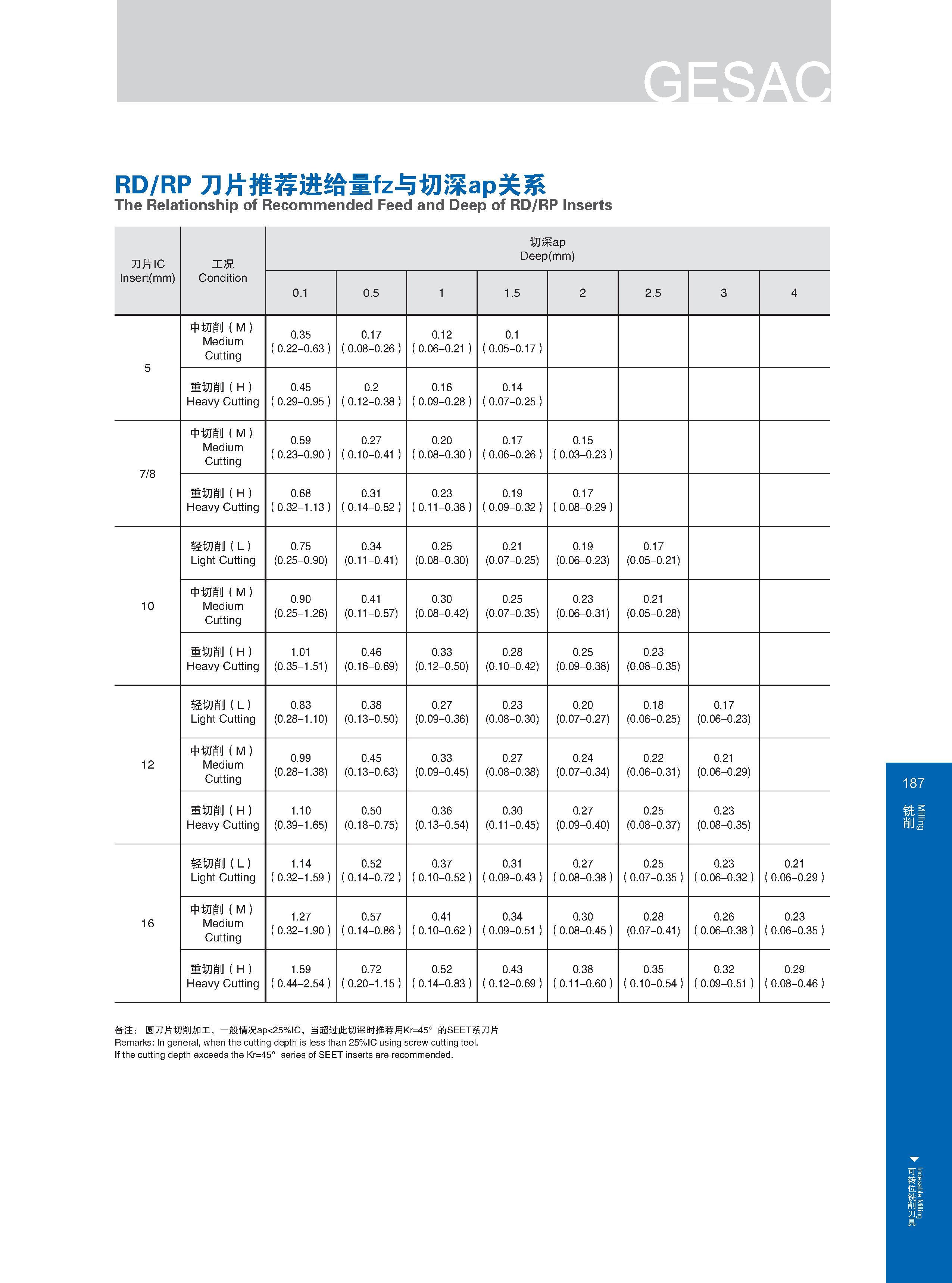

RD/RP刀片推荐进给量fz与切深ap关系 The Relationship of Recommended Feed and Deep of RD/RP Inserts 刀片IC Insert(mm) 工况 Condition 切深ap Deep(mm) 0.1 0.5 1.5 2 2.5 3 4 5 中切削（M) Medium Cutting 0.35 (0.22-0.63) 0.17 (0.08-0.26) 0.12 (0.06-0.21) 0.1 (0.05-0.17) 重切削（H) Heavy Cutting 0.45 (0.29-0.95) 0.2 (0.12-0.38) 0.16 (0.09-0.28) 0.14 (0.07-0.25) 7/8 中切削（M) Medium Cutting 0.59 (0.23-0.90) 0.27 (0.10-0.41) 0.20 (0.08-0.30) 0.17 (0.06-0.26) 0.15 (0.03-0.23) 重切削（H) Heavy Cutting 0.68 (0.32-1.13) 0.31 (0.14-0.52) 0.23 (0.11-0.38) 0.19 (0.09-0.32) 0.17 (0.08-0.29) 10 轻切削（L) Light Cu廿ing 0.75 (0.25-0.90) 0.34 (0.11-0.41) 0.25 (0.08-0.30) 0.21 (0.07-0.25) 0.19 (0.06-0.23) 0.17 (0.05-0.21) 中切削（M) Medium Cutting 0.90 (0.25-1.26) 0.41 (0.11-0.57) 0.30 (0.08-0.42) 0.25 (0.07-0.35) 0.23 (0.06-0.31) 0.21 (0.05-0.28) 重切削（H) Heavy Cutting 1.01 (0.35-1.51) 0.46 (0.16-0.69) 0.33 (0.12-0.50) 0.28 (0.10-0.42) 0.25 (0.09-0.38) 0.23 (0.08-0.35) 12 轻切削（L) Light Cu廿ing 0.83 (0.28-1.10) 0.38 (0.13-0.50) 0.27 (0.09-0.36) 0.23 (0.08-0.30) 0.20 (0.07-0.27) 0.18 (0.06-0.25) 0.17 (0.06-0.23) 中切削（M) Medium Cutting 0.99 (0.28-1.38) 0.45 (0.13-0.63) 0.33 (0.09-0.45) 0.27 (0.08-0.38) 0.24 (0.07-0.34) 0.22 (0.06-0.31) 0.21 (0.06-0.29) 重切削（H) Heavy Cutting 1.10 (0.39-1.65) 0.50 (0.18-0.75) 0.36 (0.13-0.54) 0.30 (0.11-0.45) 0.27 (0.09-0.40) 0.25 (0.08-0.37) 0.23 (0.08-0.35) 16 轻切削（L) Light Cu廿ing 1.14 (0.32-1.59) 0.52 (0.14-0.72) 0.37 (0.10-0.52) 0.31 (0.09-0.43) 0.27 (0.08-0.38) 0.25 (0.07-0.35) 0.23 (0.06-0.32) 0.21 (0.06-0.29) 中切削（M) Medium Cutting 1.27 (0.32-1.90) 0.57 (0.14-0.86) 0.41 (0.10-0.62) 0.34 (0.09-0.51) 0.30 (0.08-0.45) 0.28 (0.07-0.41) 0.26 (0.06-0.38) 0.23 (0.06-0.35) 重切削（H) Heavy Cutting 1.59 (0.44-2.54) 0.72 (0.20-1.15) 0.52 (0.14-0.83) 0.43 (0.12-0.69) 0.38 (0.11-0.60) 0.35 (0.10-0.54) 0.32 (0.09-0.51) 0.29 (0.08-0.46) 备注：圆刀片切削加工，一般情况ap<25%IC,当超过此切深时推荐用Kr=45°的SEET系刀片 Remarks: In general, when the cutting depth is less than 25%IC using screw cutting tool. If the cutting depth exceeds the Kr=45°series of SEET inserts are recommended. Indexable Milling
