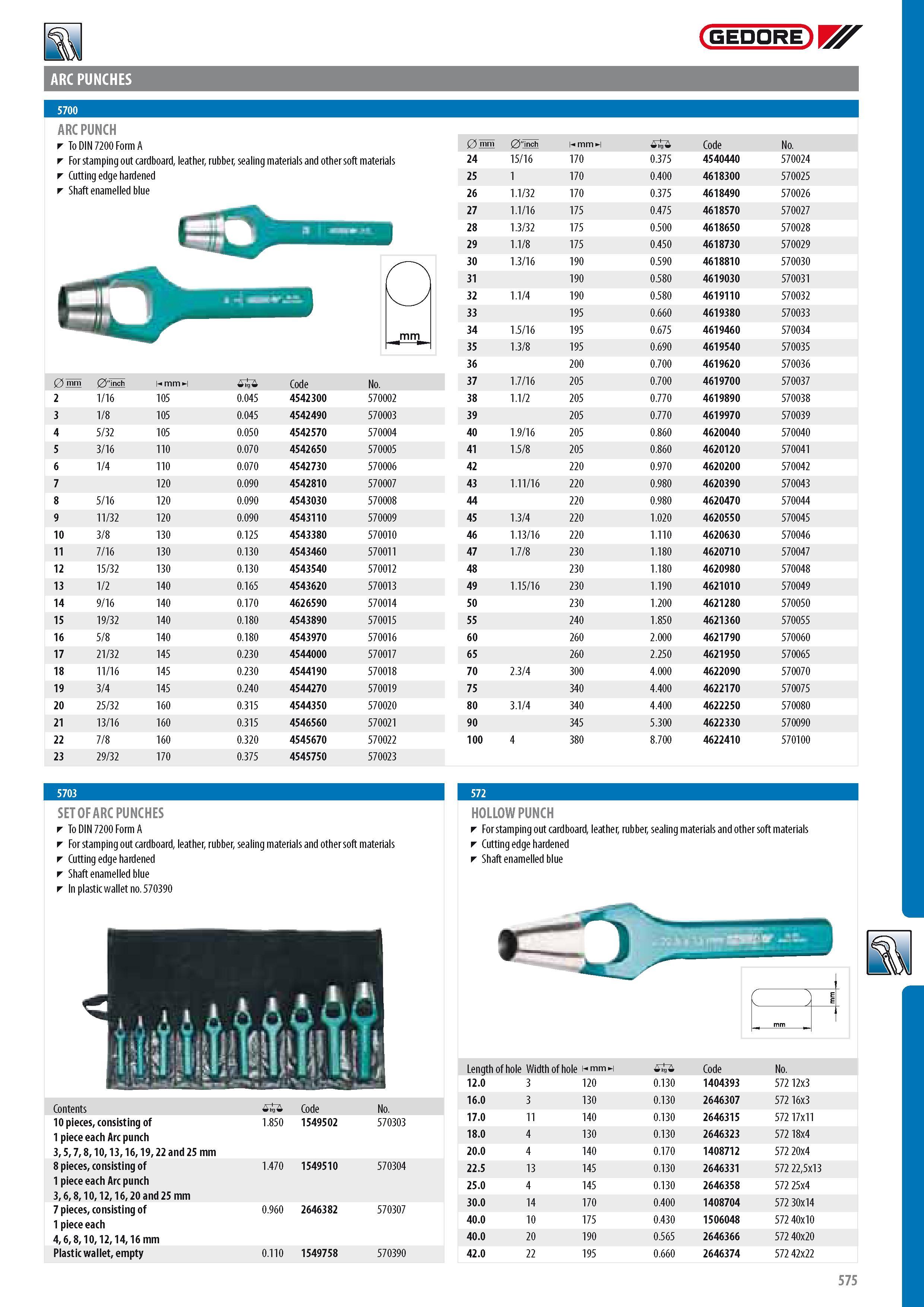

577 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.575

Каталог GEDORE 2014 Слесарный инструмент Стр. 575 0577 ENG Lab2u

ARC PUNCHES GEDORE ARC PUNCH To DIN 7200 Form A For stamping out cardboard leather rubber sealing materials and other soft materials Cutting edge hardened Shaft enamelled blue 0 mm "inch m mm ml 0 Code No. 2 1 16 105 0.045 4542300 570002 3 1 8 105 0.045 4542490 570003 4 5 32 105 0.050 4542570 570004 5 3 16 110 0.070 4542650 570005 6 1 4 110 0.070 4542730 570006 7 120 0.090 4542810 570007 8 5 16 120 0.090 4543030 570008 9 11 32 120 0.090 4543110 570009 10 3 8 130 0.125 4543380 570010 11 7 16 130 0.130 4543460 570011 12 15 32 130 0.130 4543540 570012 13 1 2 140 0.165 4543620 570013 14 9 16 140 0.170 4626590 570014 15 19 32 140 0.180 4543890 570015 16 5 8 140 0.180 4543970 570016 17 21 32 145 0.230 4544000 570017 18 11 16 145 0.230 4544190 570018 19 3 4 145 0.240 4544270 570019 20 25 32 160 0.315 4544350 570020 21 13 16 160 0.315 4546560 570021 22 7 8 160 0.320 4545670 570022 23 29 32 170 0.375 4545750 570023 0 "inch m mm ml 0 Code No. 24 15 16 170 0.375 4540440 570024 25 1 170 0.400 4618300 570025 26 1.1 32 170 0.375 4618490 570026 27 1.1 16 175 0.475 4618570 570027 28 1.3 32 175 0.500 4618650 570028 29 1.1 8 175 0.450 4618730 570029 30 1.3 16 190 0.590 4618810 570030 31 190 0.580 4619030 570031 32 1.1 4 190 0.580 4619110 570032 33 195 0.660 4619380 570033 34 1.5 16 195 0.675 4619460 570034 35 1.3 8 195 0.690 4619540 570035 36 200 0.700 4619620 570036 37 1.7 16 205 0.700 4619700 570037 38 1.1 2 205 0.770 4619890 570038 39 205 0.770 4619970 570039 40 1.9 16 205 0.860 4620040 570040 41 1.5 8 205 0.860 4620120 570041 42 220 0.970 4620200 570042 43 1.11 16 220 0.980 4620390 570043 44 220 0.980 4620470 570044 45 1.3 4 220 1.020 4620550 570045 46 1.13 16 220 1.110 4620630 570046 47 1.7 8 230 1.180 4620710 570047 48 230 1.180 4620980 570048 49 1.15 16 230 1.190 4621010 570049 50 230 1.200 4621280 570050 55 240 1.850 4621360 570055 60 260 2.000 4621790 570060 65 260 2.250 4621950 570065 70 2.3 4 300 4.000 4622090 570070 75 340 4.400 4622170 570075 80 3.1 4 340 4.400 4622250 570080 90 345 5.300 4622330 570090 100 4 380 8.700 4622410 570100 5700 SET OF ARC PUNCHES To DIN 7200 Form A For stamping out cardboard leather rubber sealing materials and other soft materials Cutting edge hardened Shaft enamelled blue In plastic wallet no.570390 Contents 0 Code No. 10 pieces consisting of 1 piece each Arc punch 3 5 7 8 10 13 16 19 22 and 25 mm 1.850 1549502 570303 8 pieces consisting of 1 piece each Arc punch 3 6 8 10 12 16 20 and 25 mm 1.470 1549510 570304 7 pieces consisting of 1 piece each 4 6 8 10 12 14 16 mm 0.960 2646382 570307 Plastic wallet empty 0.110 1 549758 570390 HOLLOW PUNCH For stamping out cardboard leather rubber sealing materials and other soft materials Cutting edge hardened Shaft enamelled blue Length of hole Width of hole m mm m 0 Code No. 12.0 3 120 0.130 1 404393 572 12x3 16.0 3 0 3 0.130 2646307 572 16x3 17.0 11 140 0.130 2646315 572 17x11 18.0 4 130 0.130 2646323 572 18x4 20.0 4 140 0.170 1408712 572 20x4 22.5 13 145 0.130 2646331 572 225x13 25.0 4 145 0.130 2646358 572 25x4 30.0 14 170 0.400 1408704 572 30x14 40.0 10 175 0.430 1 506048 572 40x10 40.0 20 190 0.565 2646366 572 40x20 42.0 22 195 0.660 2646374 572 42x22 5703 572 575
