576 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.574

Каталог GEDORE 2014 Слесарный инструмент Стр. 574 0576 ENG Lab2u

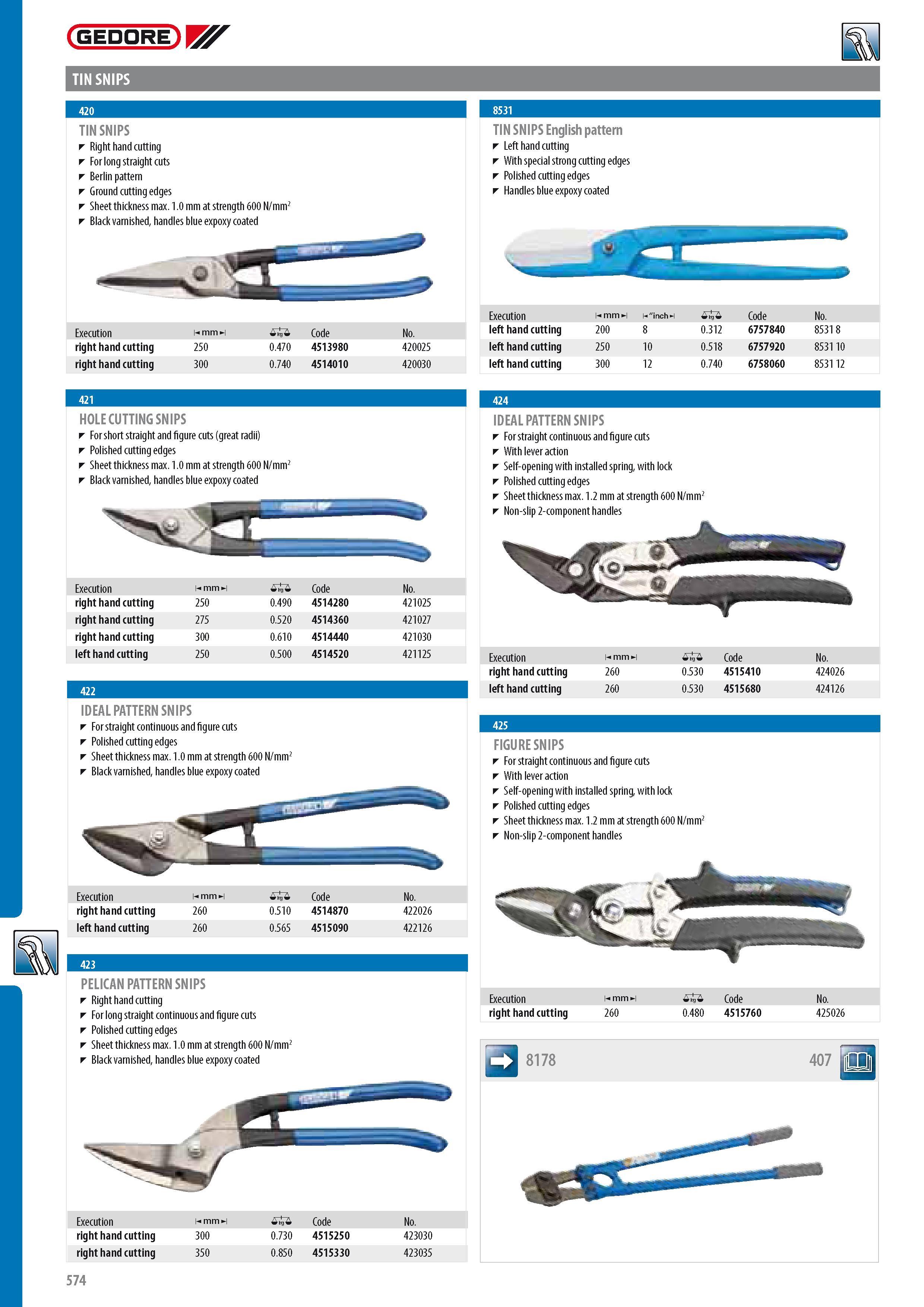

GEDORE TIN SNIPS TIN SNIPS Right hand cutting For long straight cuts Berlin pattern Ground cutting edges Sheet thickness max. 1.0 mm at strength 600 N mm2 Black varnished handles blue expoxy coated TIN SNIPS English pattern Left hand cutting With special strong cutting edges Polished cutting edges Handles blue expoxy coated Execution m mm m "inchH 0 Code No. Execution m mm m 0 Code No. left hand cutting 200 8 0.312 6757840 8531 8 right hand cutting 250 0.470 4513980 420025 left hand cutting 250 10 0.518 6757920 8531 10 right hand cutting 300 0.740 4514010 420030 left hand cutting 300 12 0.740 6758060 8531 12 HOLE CUTTING SNIPS For short straight and figure cuts (great radii) Polished cutting edges Sheet thickness max. 1.0 mm at strength 600 N mm2 Black varnished handles blue expoxy coated Execution m mm m 0 Code No. right hand cutting 250 0.490 4514280 421025 right hand cutting 275 0.520 4514360 421027 right hand cutting 300 0.610 4514440 421030 left hand cutting 250 0.500 4514520 421125 IDEAL PATTERN SNIPS For straight continuous and figure cuts Polished cutting edges Sheet thickness max. 1.0 mm at strength 600 N mm2 Black varnished handles blue expoxy coated Execution m mm m -i0 Code No. right hand cutting 260 0.510 4514870 422026 left hand cutting 260 0.565 4515090 422126 PELICAN PATTERN SNIPS Right hand cutting For long straight continuous and figure cuts Polished cutting edges Sheet thickness max. 1.0 mm at strength 600 N mm2 Black varnished handles blue expoxy coated IDEAL PATTERN SNIPS For straight continuous and figure cuts With lever action Self-opening with installed spring with lock Polished cutting edges Sheet thickness max. 1.2 mm at strength 600 N mm2 Non-slip 2-component handles Execution m mm m 0 Code No. right hand cutting 260 0.530 4515410 424026 left hand cutting 260 0.530 4515680 424126 FIGURE SNIPS For straight continuous and figure cuts With lever action Self-opening with installed spring with lock Polished cutting edges Sheet thickness max. 1.2 mm at strength 600 N mm2 Non-slip 2-component handles Execution m mm m 0 Code No. right hand cutting 260 0.480 4515760 425026 8178 407 Execution m -i0 Code No. right hand cutting 300 0.730 4515250 423030 right hand cutting 350 0.850 4515330 423035 420 424 422 425 423 574
