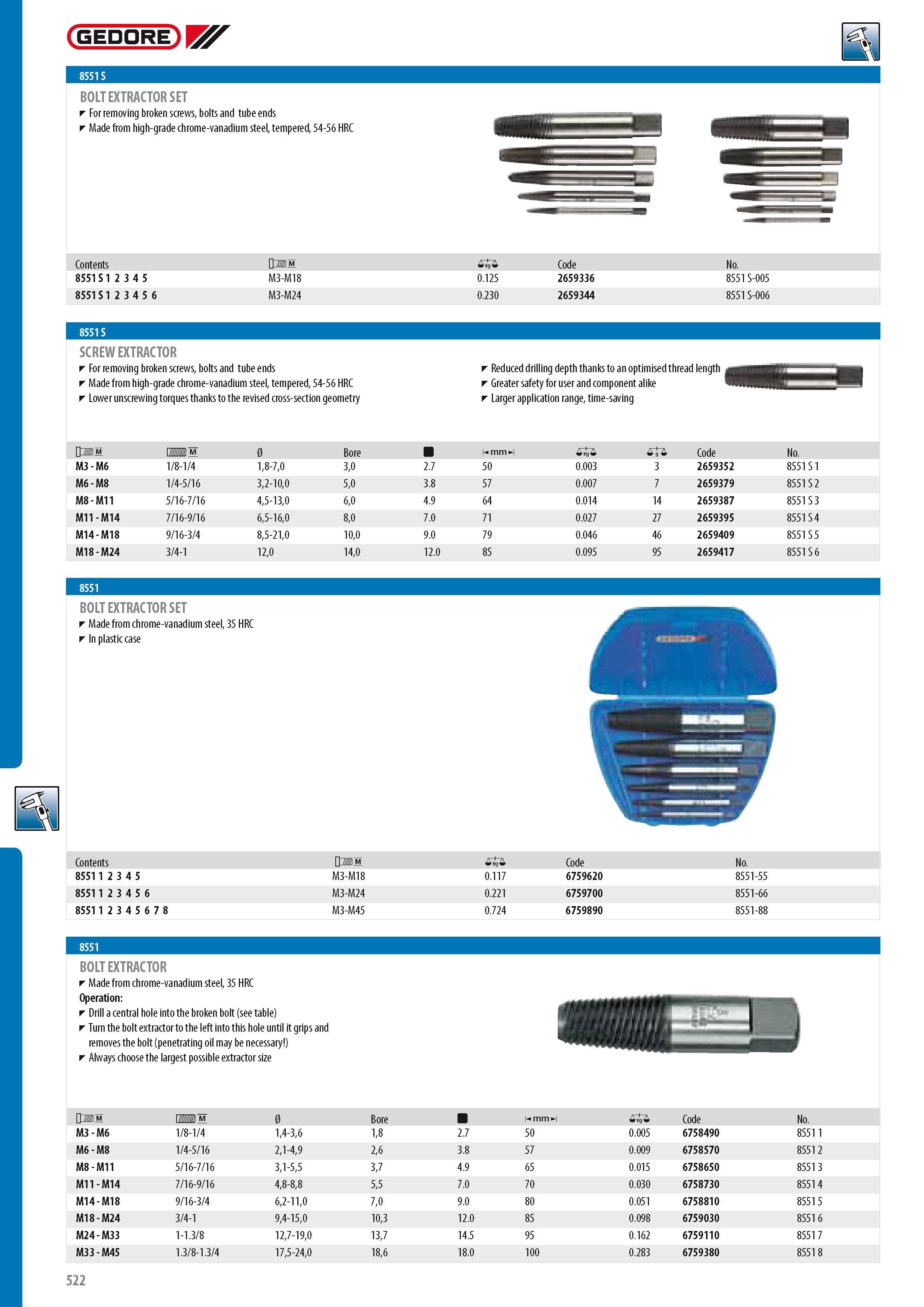

GEDORE BOLT EXTRACTOR SET F or removing broken screws bolts andtubeends Made from high-grade chrome-vanadium steel tempered 54-56 HRC Contents -10 Code No. 8551 S 1 2 3 4 5 M3-M18 0.125 2659336 8551 S-005 8551 S 1 2 3 4 5 6 M3-M24 0.230 2659344 8551 S-006 SCREW EXTRACTOR For removing broken screws bolts and tube ends Made from high-grade chrome-vanadium steel tempered 54-56 HRC Lower unscrewing torques thanks to the revised cross-section geometry Reduced drilling depth thanks to an optimised thread length t Greater safety for user and component alike Larger application range time-saving M 0 Bore y mm y 0 Code No. M3 - M6 1 8-1 4 18-70 30 2.7 50 0.003 3 2659352 8551 S 1 M6 - M8 1 4-5 16 32-100 50 3.8 57 0.007 7 2659379 8551 S 2 M8 - M11 5 16-7 16 45-130 60 4.9 64 0.014 14 2659387 8551 S 3 M11 - M14 7 16-9 16 65-160 80 7.0 71 0.027 27 2659395 8551 S 4 M14 - M18 9 16-3 4 85-210 100 9.0 79 0.046 46 2659409 8551 S 5 M18 - M24 3 4-1 120 140 12.0 85 0.095 95 2659417 8551 S 6 BOLT EXTRACTOR SET Made from chrome-vanadium steel 35 HRC In plastic case Contents -i0 Code No. 8551 1 2 3 4 5 M3-M18 0.117 6759620 8551-55 8551 1 2 3 4 5 6 M3-M24 0.221 6759700 8551-66 8551 1 2 3 4 5 6 7 8 M3-M45 0.724 6759890 8551-88 8551 BOLT EXTRACTOR Made from chrome-vanadium steel 35 HRC Operation Drill a central hole into the broken bolt (see table) Turn the bolt extractor to the left into this hole until it grips and removes the bolt (penetrating oil may be necessary ) Always choose the largest possible extractor size M 0 Bore m 0 Code No. M3 - M6 1 8-1 4 14-36 18 2.7 50 0.005 6758490 8551 1 M6 - M8 1 4-5 16 21-49 26 3.8 57 0.009 6758570 8551 2 M8 - M11 5 16-7 16 31-55 37 4.9 65 0.015 6758650 8551 3 M11 - M14 7 16-9 16 48-88 55 7.0 70 0.030 6758730 8551 4 M14 - M18 9 16-3 4 62-110 70 9.0 80 0.051 6758810 8551 5 M1 8 - M24 3 4-1 94-150 103 12.0 85 0.098 6759030 8551 6 M24 - M33 1-1.3 8 127-190 137 14.5 95 0.162 6759110 8551 7 M33 - M45 1.3 8-1.3 4 175-240 186 18.0 100 0.283 6759380 8551 8 8551 S 8551 S 522
