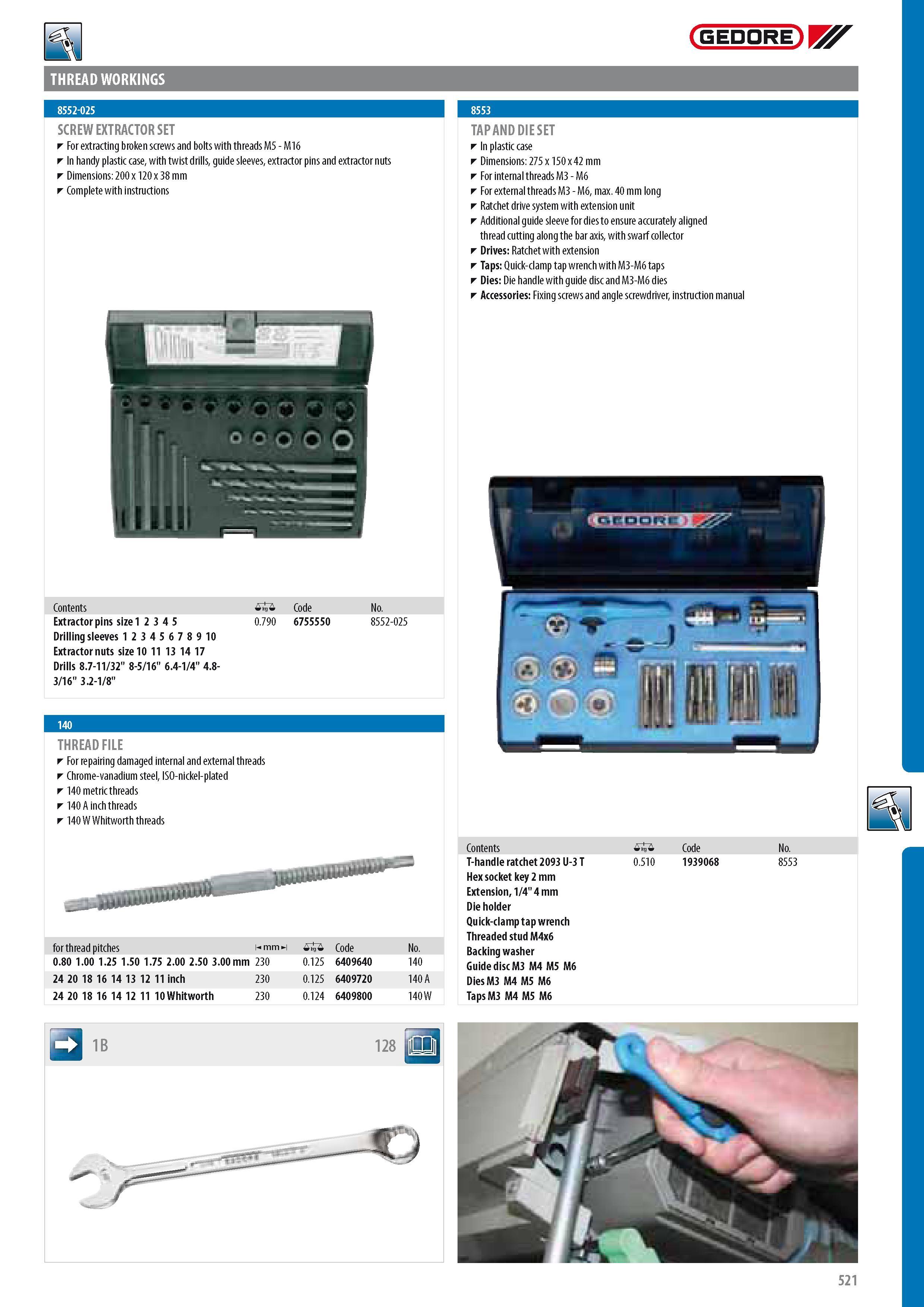

THREAD WORKINGS GEDORE SCREW EXTRACTOR SET For extracting broken screws and bolts with threads M5 - M16 In handy plastic case with twist drills guide sleeves extractor pins and extractor nuts Dimensions 200 x 120 x 38 mm Complete with instructions Contents 0 Extractor pins size 1 2 3 4 5 0.790 Drilling sleeves 1 2 3 4 5 6 7 8 9 10 Extractor nuts size 10 11 13 14 17 Drills 8.7-11 32" 8-5 16" 6.4-1 4" 4.83 16" 3.2-1 8" THREAD FILE For repairing damaged internal and external threads Chrome-vanadium steel ISO-nickel-plated 140 metric threads 140 A inch threads 140 W Whitworth threads Code 6755550 No. 8552-025 for thread pitches m mm mi 0 Code No. 0.80 1.00 1.25 1.50 1.75 2.00 2.50 3.00 mm 230 0.125 6409640 140 24 20 18 16 14 13 12 11 inch 230 0.125 6409720 140 A 24 20 18 16 14 12 11 10 Whitworth 230 0.124 6409800 140 W 1B 128 TAP AND DIE SET In plastic case Dimensions 275 x 150 x 42 mm For internal threads M3 - M6 For external threads M3 - M6 max. 40 mm long Ratchet drive system with extension unit Additional guide sleeve for dies to ensure accurately aligned thread cutting along the bar axis with swarf collector Drives Ratchet with extension Taps Quick-clamp tap wrench with M3-M6 taps Dies Die handle with guide disc and M3-M6 dies Accessories Fixing screws and angle screwdriver instruction manual Contents T-handle ratchet 2093 U-3 T Hex socket key 2 mm Extension 1 4" 4 mm Die holder Quick-clamp tap wrench Threaded stud M4x6 Backing washer Guide disc M3 M4 M5 M6 Dies M3 M4 M5 M6 Taps M3 M4 M5 M6 0 Code 0.510 1939068 No. 8553 8552-025 8553 521
