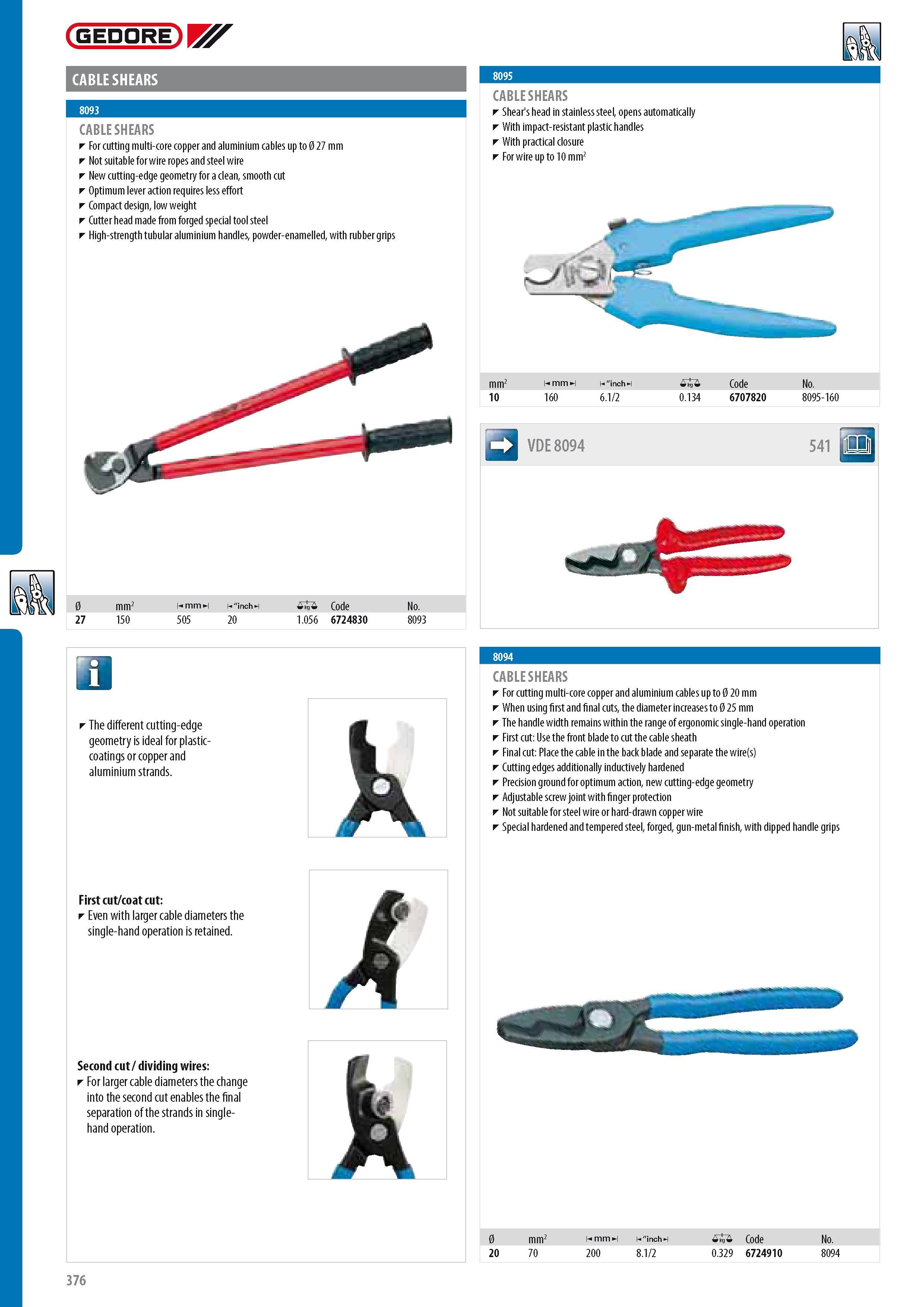

378 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.376

Каталог GEDORE 2014 Слесарный инструмент Стр. 376 0378 ENG Lab2u

GEDORE CABLE SHEARS CABLE SHEARS For cutting multi-core copper and aluminium cables up to 0 27 mm Not suitable for wire ropes and steel wire New cutting-edge geometry for a clean smooth cut Optimum lever action requires less effort Compact design low weight Cutter head made from forged special tool steel High-strength tubular aluminium handles powder-enamelled with rubber grips 27 mm2 150 y mm 505 h"inchH 20 0 Code 1.056 6724830 No. 8093 a The different cutting-edge geometry is ideal for plastic-coatings or copper and aluminium strands. First cut coat cut Even with larger cable diameters the single-hand operation is retained. Second cut dividing wires For larger cable diameters the change into the second cut enables the final separation of the strands in singlehand operation. CABLE SHEARS Shear's head in stainless steel opens automatically With impact-resistant plastic handles With practical closure For wire up to 10 mm2 mm2 HmmH "inchH 10 160 6.1 2 0 Code No. 0.134 6707820 8095-160 CABLE SHEARS For cutting multi-core copper and aluminium cables up to 0 20 mm When using first and final cuts the diameter increases to 0 25 mm The handle width remains within the range of ergonomic single-hand operation First cut Use the front blade to cut the cable sheath Final cut Place the cable in the back blade and separate the wire(s) Cutting edges additionally inductively hardened Precision ground for optimum action new cutting-edge geometry Adjustable screw joint with finger protection Not suitable for steel wire or hard-drawn copper wire Special hardened and tempered steel forged gun-metal finish with dipped handle grips 20 mm2 70 HmmH "inchH 200 8.1 2 0 Code 0.329 6724910 No. 8094 8095 8093 376
