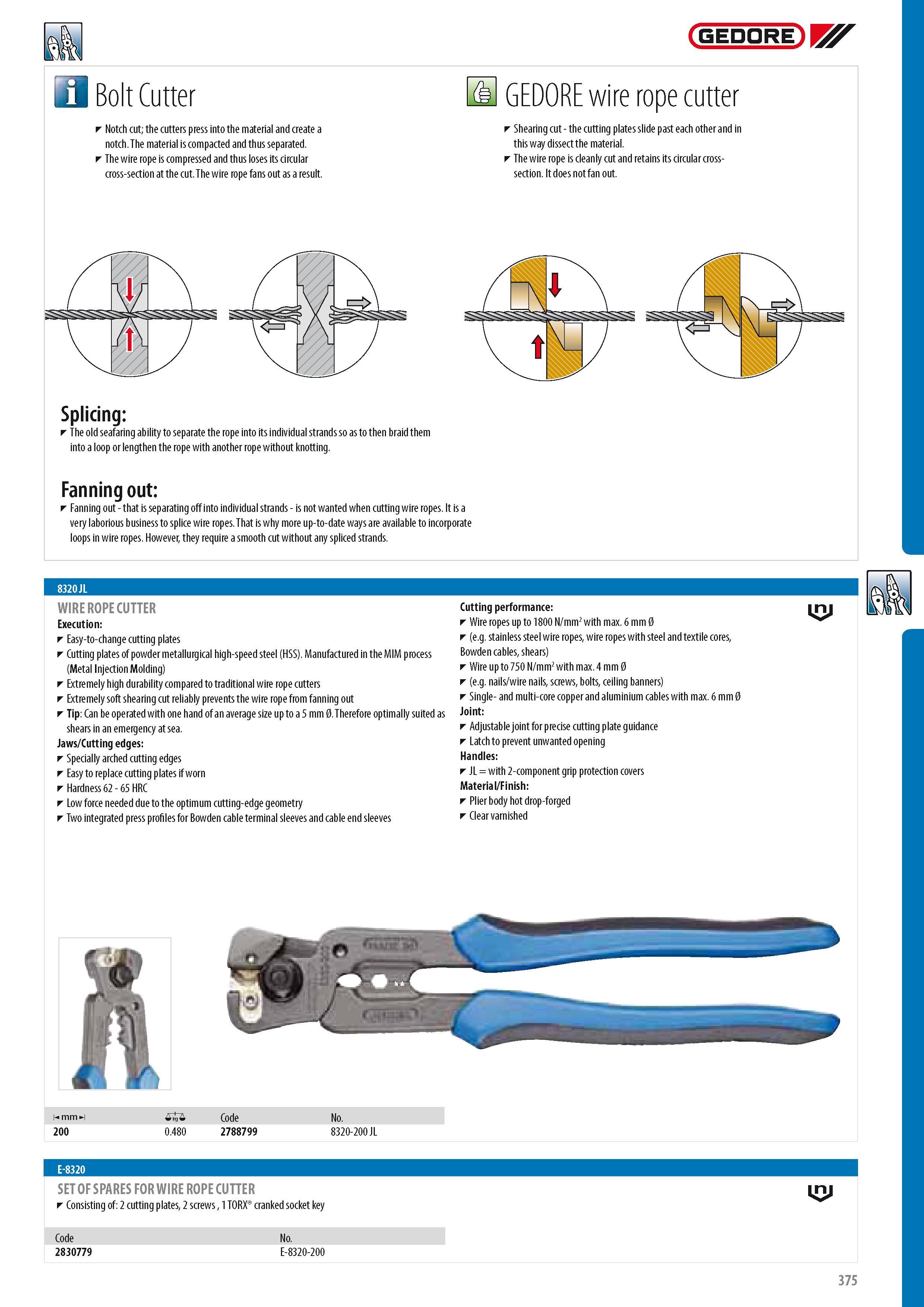

3 Bolt Cutter Notch cut; the cutters press into the material and create a notch. The material is compacted and thus separated. The wire rope is compressed and thus loses its circular cross-section at the cut. The wire rope fans out as a result. GEDORE GEDORE wire rope cutter Shearing cut - the cutting plates slide past each other and in this way dissect the material. The wire rope is cleanly cut and retains its circular crosssection. It does not fan out. Splicing The old seafaring ability to separate the rope into its individual strands so as to then braid them into a loop or lengthen the rope with another rope without knotting. Fanning out Fanning out - that is separating off into individual strands - is not wanted when cutting wire ropes. It is a very laborious business to splice wire ropes. That is why more up-to-date ways are available to incorporate loops in wire ropes. However they require a smooth cut without any spliced strands. WIRE ROPE CUTTER Execution Easy-to-change cutting plates Cutting plates of powder metallurgical high-speed steel (HSS). Manufactured in the MIM process (Metal Injection Molding) Extremely high durability compared to traditional wire rope cutters Extremely soft shearing cut reliably prevents the wire rope from fanning out Tip Can be operated with one hand of an average size up to a 5 mm 0. Therefore optimally suited as shears in an emergency at sea. Jaws Cutting edges Specially arched cutting edges Easy to replace cutting plates if worn Hardness 62 - 65 HRC Low force needed due to the optimum cutting-edge geometry Two integrated press profiles for Bowden cable terminal sleeves and cable end sleeves Cutting performance Wire ropes up to 1800 N mm2 with max. 6 mm 0 (e.g. stainless steel wire ropes wire ropes with steel and textile cores Bowden cables shears) Wire up to 750 N mm2 with max. 4 mm 0 (e.g. nails wire nails screws bolts ceiling banners) Single- and multi-core copper and aluminium cables with max. 6 mm 0 Joint Adjustable joint for precise cutting plate guidance Latch to prevent unwanted opening Handles JL with 2-component grip protection covers Material Finish Plier body hot drop-forged Clearvarnished G 200 0 0.480 Code 2788799 No. 8320-200 JL SET OF SPARES FOR WIRE ROPE CUTTER Consisting of 2 cutting plates 2 screws 1 TORX cranked socket key G Code 2830779 No. E-8320-200 E-8320 375
