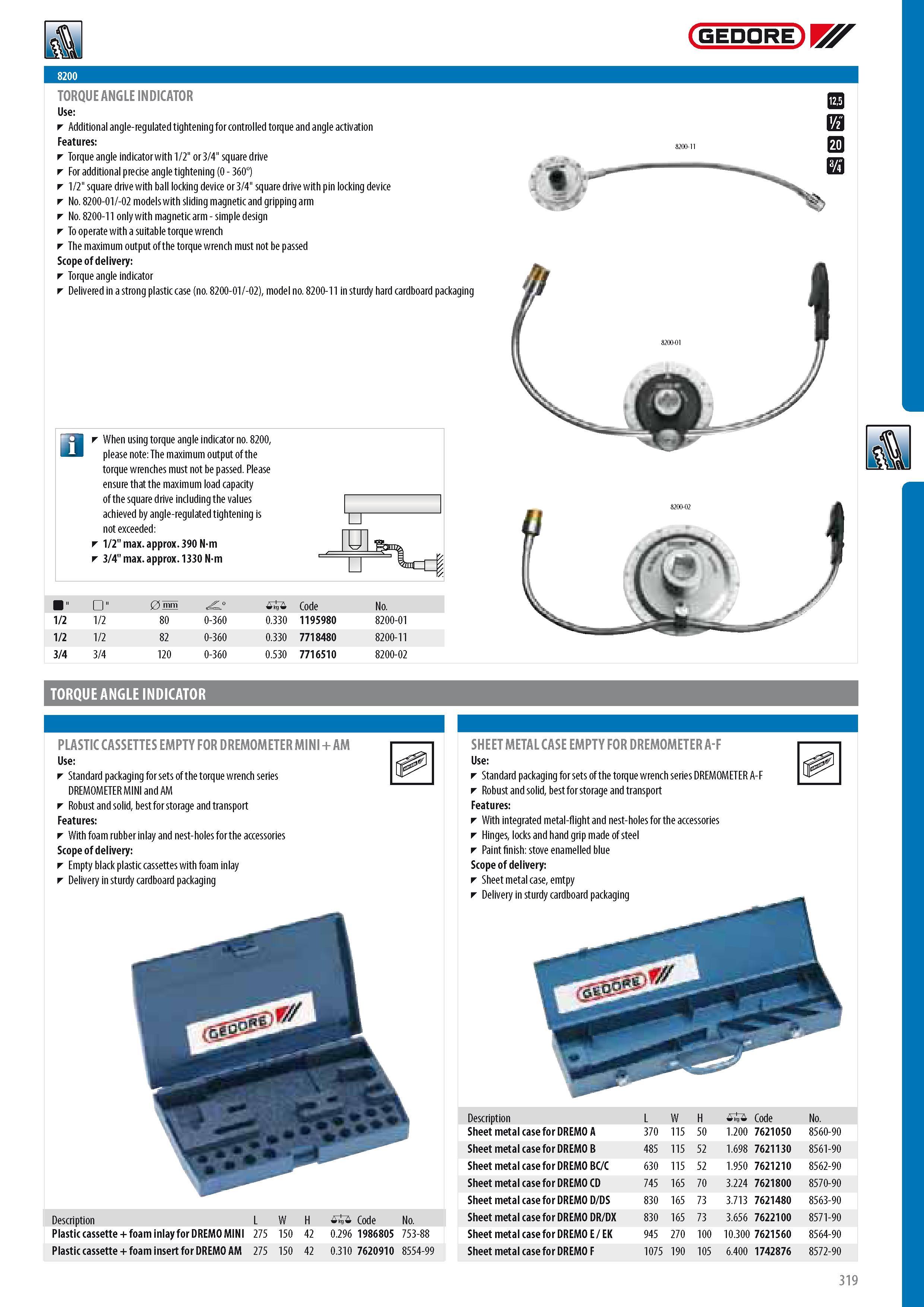

321 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.319

Каталог GEDORE 2014 Слесарный инструмент Стр. 319 0321 ENG Lab2u

GEDORE TORQUE ANGLE INDICATOR Use Additional angle-regulated tightening for controlled torque and angle activation Features Torque angle indicator with 1 2" or 3 4" square drive For additional precise angle tightening (0 - 360) 1 2" square drive with ball locking device or 3 4" square drive with pin locking device No. 8200-01 -02 models with sliding magnetic and gripping arm No. 8200-11 only with magnetic arm - simple design To operate with a suitable torque wrench The maximum output of the torque wrench must not be passed Scope of delivery Torque angle indicator Delivered in a strong plastic case (no. 8200-01 -02) model no. 8200-11 in sturdy hard cardboard packaging When using torque angle indicator no. 8200 please note The maximum output of the torque wrenches must not be passed. Please ensure that the maximum load capacity of the square drive including the values achieved by angle-regulated tightening is not exceeded 1 2" max. approx. 390 N-m 3 4" max. approx. 1330 N-m u " " 0 mm A 0 Code No. 1 2 1 2 80 0-360 0.330 1195980 8200-01 1 2 1 2 82 0-360 0.330 7718480 8200-11 3 4 3 4 120 0-360 0.530 7716510 8200-02 o d 0 TORQUE ANGLE INDICATOR PLASTIC CASSETTES EMPTY FOR DREMOMETER MINI + AM Use Standard packaging for sets of the torque wrench series DREMOMETER MINI and AM Robust and solid best for storage and transport Features With foam rubber inlay and nest-holes for the accessories Scope of delivery Empty black plastic cassettes with foam inlay Delivery in sturdy cardboard packaging Description L W H 0 Code No. Plastic cassette + foam inlay for DREMO MINI 275 150 42 0.296 1986805 753-88 Plastic cassette + foam insert for DREMO AM 275 150 42 0.310 7620910 8554-99 SHEET METAL CASE EMPTY FOR DREMOMETER A-F Use Standard packaging for sets of the torque wrench series DREMOMETER A-F Robust and solid best for storage and transport Features With integrated metal-flight and nest-holes for the accessories Hinges locks and hand grip made of steel Paint finish stove enamelled blue Scope of delivery Sheet metal case emtpy Delivery in sturdy cardboard packaging Description L W H 0 Code No. Sheet metal case for DREMO A 370 115 50 1.200 7621050 8560-90 Sheet metal case for DREMO B 485 115 52 1.698 7621130 8561-90 Sheet metal case for DREMO BC C 630 115 52 1.950 7621210 8562-90 Sheet metal case for DREMO CD 745 165 70 3.224 7621800 8570-90 Sheet metal case for DREMO D DS 830 165 73 3.713 7621480 8563-90 Sheet metal case for DREMO DR DX 830 165 73 3.656 7622100 8571-90 Sheet metal case for DREMO E EK 945 270 100 10.300 7621560 8564-90 Sheet metal case for DREMO F 1075 190 105 6.400 1742876 8572-90 8200 8200-11 319
